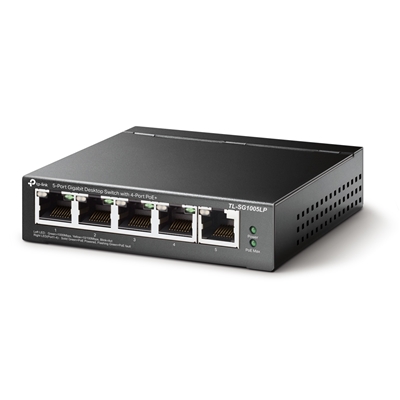

TP-Link TL-SG1005LP 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (40W)

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES
Interface:
• 5x 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity:
Fanless

External Power Supply:
External Power Adapter (Output: 54 VDC / 1.3 A)

Packet Forwarding Rate:
7.44 Mpps

PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W

Mac Address Table:
2K

Jumbo Frame:
16 KB

Switching Capacity:
10 Gbps

Dimensions ( W x D x H ):
3.9 x 3.9 x 1.0 in.
(99 x 98 x 25 mm)

Max Power Consumption:
• 4.3 W (without power device connected)
• 74.2 W (with 65W power devices connected)

Max Heat Dissipation:
• 14.6 BTU/h (no PD connected)
• 253.2 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES
Advanced Features:
• Compatible with IEEE 802.3af/at compliant power devices
• MAC address auto-learning and auto-aging
• IEEE 802.3x flow control
• 802.1p/DSCP QoS
• IGMP snooping

Transfer Method:
Store-And-Forward

OTHERS
Certification:
FCC, CE, RoHS

Package Contents:
• TL-SG1005P
• Power Adapter
• Installation Guide
