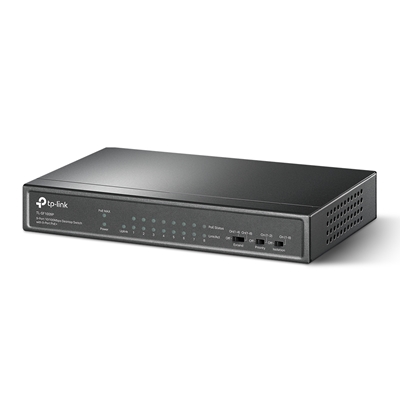

TP-Link TL-SF1009P 9-Port 10/100Mbps Metal Desktop PoE Switch with 8-Port PoE+ (65W)

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports

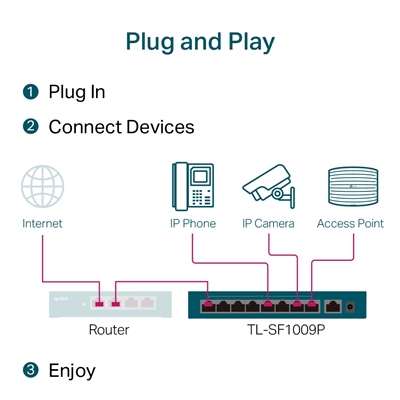

Plug and Play, with PoE Transmission for Surveillance up to 250 m

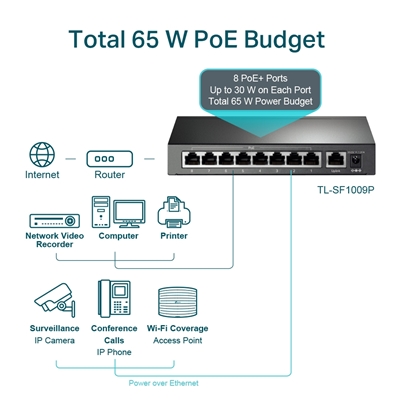

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 8x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

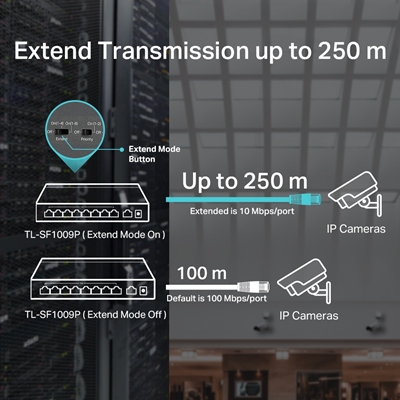

Ideal for IP Surveillance —Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

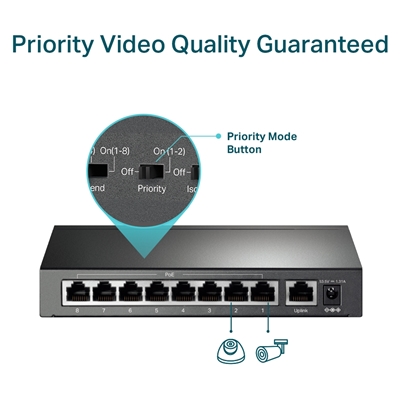

Ideal for IP Surveillance —Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

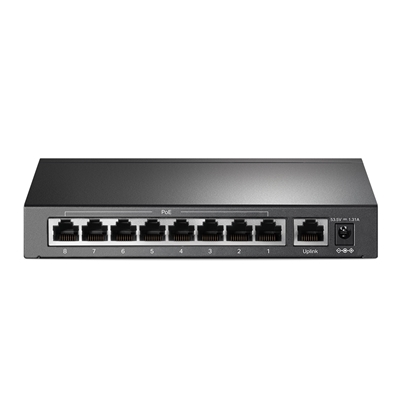

Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES
Interface:
• 9x 10/100 Mbps RJ45 Ports (8x 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity:
Fanless

Physical Security Lock:
Yes

External Power Supply:
External Power Adapter (Output: 53.5VDC / 1.31A)

Packet Forwarding Rate:
1.3392 Mpps

PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W

Mac Address Table:
2K

Jumbo Frame:
2 KB

Switching Capacity:
1.8 Gbps

Dimensions ( W x D x H ):
6.7 x 3.9 x 1.1 in (171 x 98 x 27 mm)

Max Power Consumption:
• 3.6 (220/50 Hz, no PD connected)
• 77.08 (220/50 Hz, with 65 W PD connected)

Max Heat Dissipation:
• 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES
Transmission Method:
Store-And-Forward

Advanced Functions:
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS
Certification:
FCC, CE, RoHS

Package Contents:
• TL-SF1009P
• Power Adapter
• Installation Guide
