TP-Link TL-POE170S IEEE 802.3af/at/bt 60W PoE++ Injector
| Connection Type | PoE Injector |
| Speed | Gigabit |
| Access Point | No |
£ 31.47
Guaranteed Safe Checkout
– 2 Gigabit ports ensure faster transmission
– Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
– Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
– Automatically determines and supplies the exact power to meet the device’s need

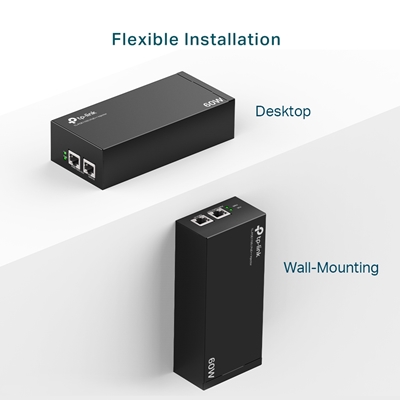

– Wall-mounting and desktop design accommodates most installation scenarios
– Plug & Play installation, requires no configuration
– Integrated power supply
– Durable metal casing
The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
*TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor.
Specifications
NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
GENERAL
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
Material
Metal Casing

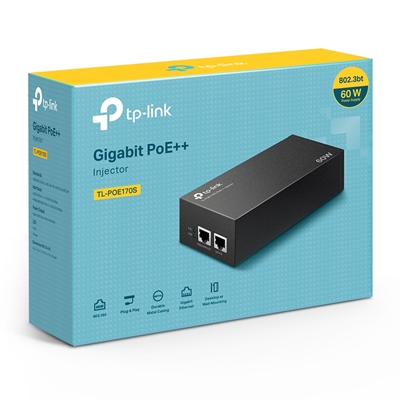

PACKAGE CONTENTS
Package Contents
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable
HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

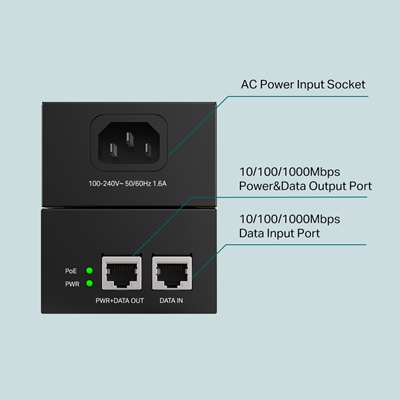

Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
Dimensions ( W x D x H )
6.1*2.8*1.7 in (155*70*42 mm)
| Weight | 0.95 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.
CERTIFICATES
| Certification | FCC, CE, RoHS |
ENERGY MANAGEMENT
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Output power | 60 W |
FEATURES
| Certification | FCC, CE, RoHS |
| Plug and Play | Yes |
| Wall mountable | Yes |
| Product colour | Black |
| Housing material | Metal |
LOGISTICS DATA
| Harmonized System (HS) code | 85044095 |
NETWORKING
| Cabling technology | 10/100/1000 |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90% |
PACKAGING CONTENT
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
PACKAGING DATA
| Package weight | 920 g |
| Package depth | 250 mm |
| Package height | 95 mm |
| Package width | 190 mm |
| Package type | Box |
PORTS & INTERFACES
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
TECHNICAL DETAILS
| Harmonized System (HS) code | 85044095 |
WEIGHT & DIMENSIONS
| Height | 42 mm |
| Width | 155 mm |
| Depth | 70 mm |
