TP-Link TL-POE160S IEEE 802.3at 30W PoE+ Injector
| Connection Type | RJ45 |
| Speed | Gigabit |
| Access Point | No |
£ 11.55
Guaranteed Safe Checkout
TP-Link TL-POE160S Power Over Ethernet PoE+ Injector (802.3at/30W)
Key Features
2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device’s need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
What This Product Does
The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications
NETWORK
Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
GENERAL
Certification
FCC, CE, RoHS
Environment
0°C to 40°C (32°F to 104°F) Operating Temperature
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90%RH non-condensing
Storage Humidity 5% to 90%RH non-condensing
PACKAGE CONTENTS
PoE+ Injector TL-POE160S
Installation Guide
Power Cord
RJ45 Cable
Wall Mounting Kits
HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

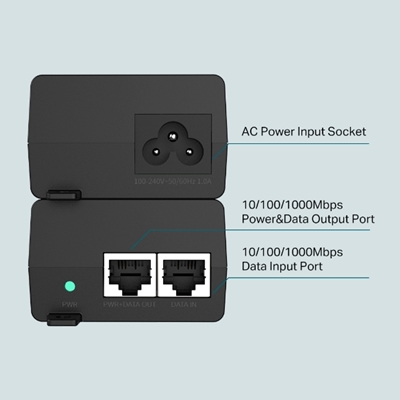

Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
LED Indicator ON
Supplying power normally
OFF: No power supply
Dimensions ( W x D x H )
4.9*2.3*1.4 in (125*59.4*36.8 mm)
| Weight | 0.55 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.
CERTIFICATES
| Certification | FCC, CE, RoHS |
ENERGY MANAGEMENT
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Output power | 30 W |
FEATURES
| Certification | FCC, CE, RoHS |
| Plug and Play | Yes |
| LED indicators | Power |
| Wall mountable | Yes |
| Product colour | Black |
| Maximum operating distance | 100 m |
LOGISTICS DATA
| Harmonized System (HS) code | 85044095 |
NETWORKING
| Cabling technology | 10/100/1000 |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
PACKAGING CONTENT
| Power cord included | Yes |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
| Packaging content | TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits |
| Wall mounting kit | Yes |
PACKAGING DATA
| Package weight | 460 g |
| Package depth | 230 mm |
| Package height | 80 mm |
| Package width | 170 mm |
| Package type | Box |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
TECHNICAL DETAILS
| Harmonized System (HS) code | 85044095 |
WEIGHT & DIMENSIONS
| Height | 36.8 mm |
| Width | 125 mm |
| Depth | 59.4 mm |
