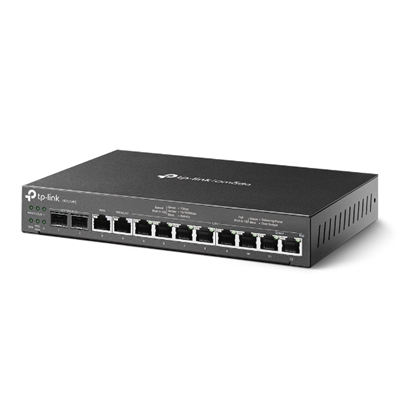

TP-Link Omada ER7212PC 3-in-1 (Router, POE Switch and Omada Controller) Gigabit VPN Router

Omada 3-in-1 Gigabit VPN Router

Key Features
3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.
Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12 x Gigabit ports.
Up to 4 x WAN Ethernet Ports: Equipped with 2 x Gigabit SFP WAN/LAN ports, 1 x Gigabit RJ45 WAN port, and 1 x Gigabit RJ45 WAN/LAN port.
110W PoE Budget: 8 x 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W.
Centralized Management: Cloud access and the Omada app offer convenience and easy management.
Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
Easy Installation: Fanless and compact design for desktop and wall mounting.

ER7212PC can work as a VPN client and can connect with up to 10 VPN servers

The 3-in-1 ER7212PC presents a one-stop solution for home and small business networking.
With a single compact box, users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device.

Integrated PoE+ Switch
Dedicated 8 x PoE+ Ports (110W total PoE power budget*) for PoE-supported devices such as access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Embedded Omada SDN Controller
With the built-in Omada SDN controller, you don’t have to configure additional management devices with ER7212PC. You just need one device to manage and update other devices in bulk.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Easy Installation, Quiet Heat Dissipation
A clean, well-organized, and quiet network environment is at your fingertips. The compact and minimalist design makes it suitable for your configuration in various spaces, whether it’s the corner of office desks or the ceiling of a store. Fanless design offers noiseless heat dissipation to your shops or offices.

Embedded Omada SDN Controller
The built-in Omada SDN controller enables ER7212PC to manage and update your devices in bulk, with no need for individual and complex setup. Additionally, check the Omada app or web browser, ER7212PC allows you to remotely control connected devices, monitor the network, and view the network maintenance in real time.

High-Security and High-Performance VPN
ER7212PC supports pass-through traffic and multiple VPN protocols, including OpenVPN, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.

Robust Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.

Specifications

Type
VPN Router

Connectivity
Wired

Max Wired Transfer Rate
10/100/1000 Mbps

Interface(s)
2 x Gigabit SFP WAN/LAN ports
1 x Gigabit WAN port
1 x Gigabit LAN/WAN port
8 x Gigabit LAN ports

IEEE Standards & Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Button(s)
Reset Button

Power Supply
53.5VDC/2.43A Adapter

Dimensions(WxDxH)
226 x 131 x 35 mm

Security

Filtering
URL Filtering

Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

Access Control
Source/Destination IP Based Access Control
DHCP
DHCP Server
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
VPN Support
IPsec VPN Throughput (AES256):
168.5 Mbps

OpenVPN
34 Mbps

L2TP VPN Throughput
Unencrypted: 845.3 Mbps
Encrypted: 333.2 Mbps

PPTP VPN Throughput
Unencrypted: 1012.6 Mbps
Encrypted: 401.4 Mbps

Management
Omada App
Cloud Access
Service: Dynamic DNS (Dyndns, No-IP)

Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Syslog Support

Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
Management up to 1 Router, 2 Switches and 10 EAPs

Dynamic DNS
Yes

USB Application
–

Bandwidth Control
IP/Port-based Bandwidth Control

Load Balance
Intelligent Load Balance

Application Optimized Routing
Link Backup
Online Detection

NAT
Multi-Net NAT
Virtual Server
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP

Session Limit
IP-based Session Limit

Environment
Operating Temperature: 0–45°C (32–1113°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents
ER7212PC
Power Adapter
Power Cord
Quick Installation Guide

Warranty
Limited Lifetime
