TP-Link Omada EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Features

BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1x 2.5G Port: Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Advanced Functions: Supports centralized management, mesh, and AI roaming

Specifications

HARDWARE FEATURES

Interface
1x 2.5G Ethernet Port

Button
Reset

Power Supply
802.3at PoE or 12V/2.5A DC

Max. Power Consumption
24.05 W (For PoE);
20.92 W (For DC)

Dimensions ( W x D x H )
8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm)

Antenna
2.4 GHz: 2 x 3.0 dBi
5 GHz: 2 x 3.0 dBi
6 GHz: 2 x 3.0 dBi

Bluetooth
1 x 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

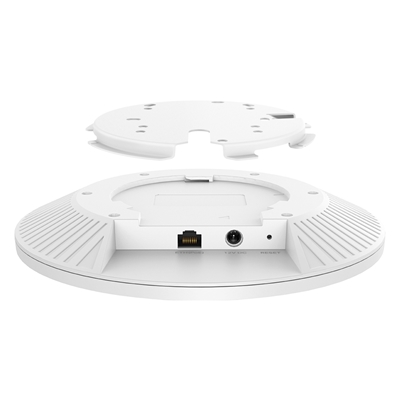

Mounting
Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Coverage
140m squared(1500 ft²)

Concurrent Clients
380+**

Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be

Frequency
6 GHz, 5 GHz, and 2.4 GHz

Signal Rate
574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)

Wireless Functions
MLO
4K-QAM
MU-MIMO
HE320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication

Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
<20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP) Management Features Omada App Yes Centralized Management Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Yes Web-based Management Yes OTHERS Certification CE, FCC, RoHS, IC Package Content EAP773 Installation Guide Ceiling/Wall Mounting Kits Note: Power Adapter is NOT included. Environment Operating Temperature: 0 °C–40 °C (32 °F–104 °F) Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
