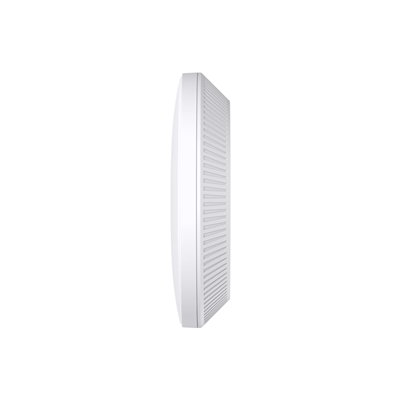

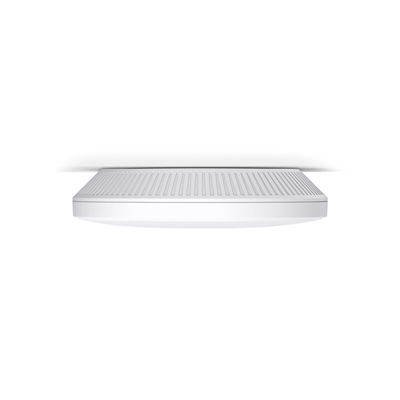

TP-Link Omada EAP723 BE3600 Ceiling Mount Wi-Fi 7 Access Point
| Type | Access Point |
| Speed | 3600Mbps |
| PoE | Yes |
£ 62.96
Guaranteed Safe Checkout
BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Features
BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1 x 2.5G port unlocks the full potential of Wi-Fi 7.
160 MHz bandwidth enables many more simultaneous transmissions.
Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Specifications
HARDWARE FEATURES
Interface
1 x 2.5G Ethernet Port
Button
Reset
Power Supply
802.3at PoE or 12V/2.5A DC
Max. Power Consumption
18.6 W (For PoE);
16.0W (For DC)
Dimensions ( W x D x H )
6.3 x 6.3 x 1.4 in (160 x 160 x 36.7 mm)
Antenna
2.4 GHz: 2 x 4.0 dBi
5 GHz: 2 x 5.0 dBi
Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage
140m squared(1500 ft²)
Concurrent Clients
350+**
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
2.4 GHz and 5 GHz
Signal Rate
688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions
4K-QAM
MU-MIMO
EHT160
Mesh
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:16(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
Management Features
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
Web-based Management
Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Content
EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment
Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
| Weight | 0.0 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.tp-link.com
Warranty:
ANTENNA
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
CERTIFICATION
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
DESIGN
| LED indicators | Yes |
| Product colour | White |
| Reset button | Yes |
| Placement | Ceiling, Wall |
ENERGY MANAGEMENT
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| DC voltage range | 12 V |
| Power consumption (max) | 18.6 W |
FEATURES
| Maximum data transfer rate | 3600 Mbit/s |
| Bandwidth | 2.4 GHz |
| Spread spectrum method | OFDMA |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Automatic channel selection | Yes |
| VLAN support | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| MIMO type | Multi User MIMO |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Fit AP mode features | Mesh networking |
| BeamForming | Yes |
| 6 GHz | No |
LOGISTICS DATA
| Quantity per pack | 1 pc(s) |
MANAGEMENT FEATURES
| Web-based management | Yes |
| Syslog | Yes |
PACKAGING CONTENT
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
PACKAGING DATA
| Quick start guide | Yes |
| Package type | Box |
| Mounting kit | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
SECURITY
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
WEIGHT & DIMENSIONS
| Height | 36.7 mm |
| Width | 160 mm |
| Depth | 160 mm |
