TP-Link Omada EAP650-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

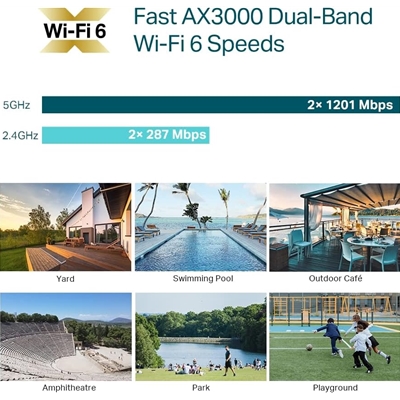

Superior WiFi 6 Speeds
Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.

Higher Network Efficiency
Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.

160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160.

Long-Range Coverage
Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.

Omada Mesh Technology
Enables wireless connectivity between access points for extended range and flexible deployment.

Stay Smooth with Seamless Roaming
Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.

PoE Powered
Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.

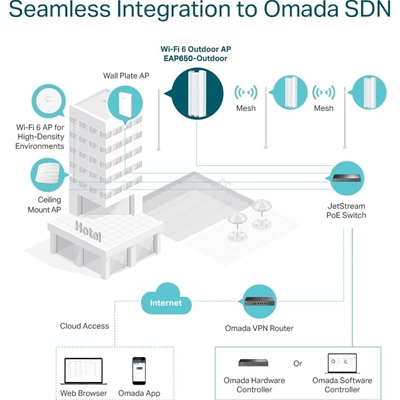

Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.

Experience the Peak of WiFi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.

Specifications

Interface

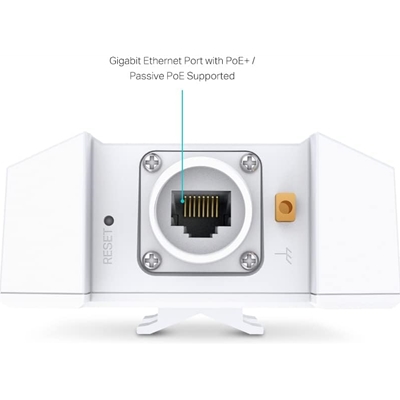

1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Button
Reset

Power Supply
802.3at PoE
48V Passive PoE (PoE Adapter Included)

Power Consumption
12.5W (802.3at PoE or Passive PoE)

Dimensions
280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)

Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

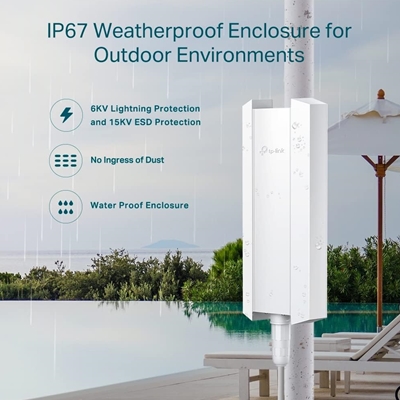

Weatherproof Enclosure
IP67

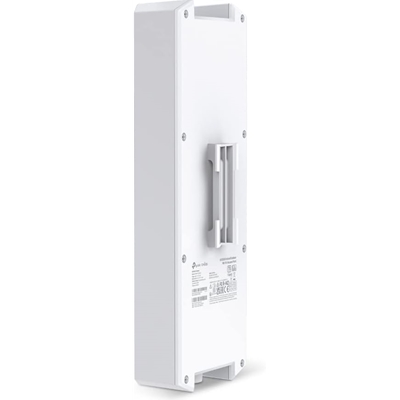

Mounting
Pole/Wall Mounting (Kits included)

Wireless Client Capacity
250+

Concurrent Clients
250+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz, 5 GHz

Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power
<20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) Wireless Functions 1024-QAM 4x Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) MU-MIMO Omada Mesh Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Omada App Yes Centralized Management Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Cloud Access Yes, through Omada Cloud-Based Controller OC300 OC200 Omada Software Controller Email Alerts Yes Management MAC Access Control Yes SNMP v1, v2c System Logging Local/Remote Syslog Yes SSH Yes Web-Based Management Yes L3 Management Yes Multi-Site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller Certification CE, FCC, RoHS Package Contents Access Point EAP650-Outdoor Passive PoE Adapter Power Cord Mounting Kits Installation Guide
