TP-Link Pharos CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3x faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

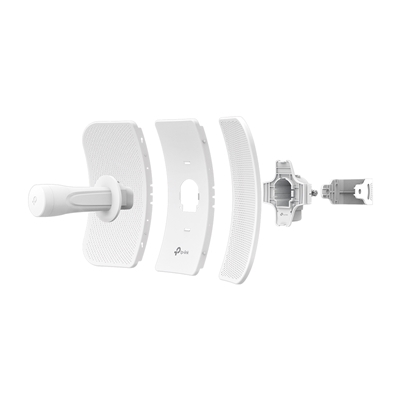

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS – provides an alternative management method and allows professionals to access more detailed configurations.

Specifications

HARDWARE FEATURES
Processor:
Qualcomm 750MHz CPU, MIPS 74Kc

Memory:
128 MB DDR2 RAM, 16 MB Flash

Interface:
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button

Power Supply:
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC

Dimensions ( W x D x H ):
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Antenna Gain:
23 dBi

Antenna Beamwidth:
9° (Azimuth)/7° (Elevation)

Protection:
15 KV ESD Protection
6 KV Lightning Protection

Enclosure:
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards:
IEEE 802.11a/n/ac

Wireless Speeds:
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency:
5.15–5.85 GHz

Transmit Power:
Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration:
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Wireless Configurations:
Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP

Management:
Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools:
Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment

System-level Optimizations:
Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES
Dimensions (W x D x H):
85.8×43.9×29.7 mm

Interfaces:
1 AC Jack with Earth Ground
1x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1x 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button:
Remote Reset Button

Power Status LEDs:
Green

Input:
100-240VAC, 50/60Hz

Output:
24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency:
>84.29%

Certifications:
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification:
CE, FCC, RoHS, IP65, IC

Package Contents:
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide

System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
