Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+
| Ports | 7 Ports |
| Managed/Unmanaged | Unmanaged |
| Speed | 10/100/1000 |
| PoE capable | Yes |
£ 24.96
Guaranteed Safe Checkout
Mercusys MS108GP Coming Soon 8-Port Gigabit Desktop Switch with 7-Port PoE
Full Gigabit Ports
8x 10/100/1000 Mbps RJ45 ports

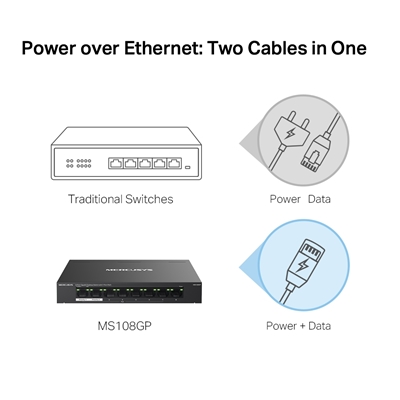

Two Cables in One
With 7 PoE ports, transfers data and power on one single cable

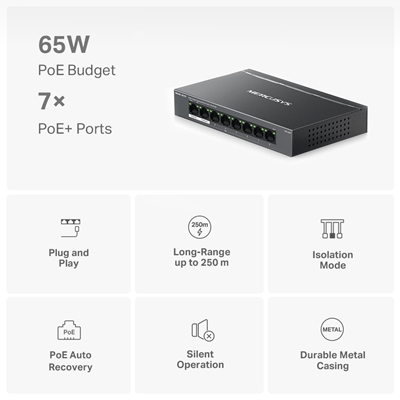

High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode

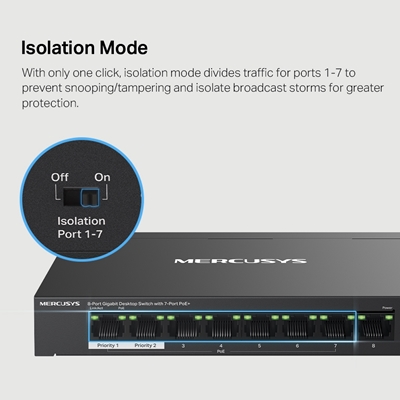

Isolation Mode
One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs

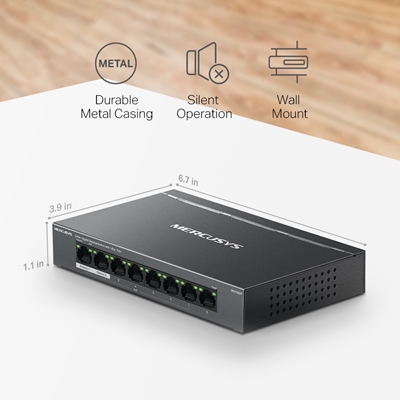

Durable Metal Casing
Allows for efficient heat dissipation and long network life
Plug and Play
Simple to use and saves time and effort
Specifications
Hardware
Dimensions (W X D X H)
171x98x27 mm
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W
External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Standards and Protocols
IEEE 802.3x Flow Control
Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame
9 KB
Mac Address Table
8K
Max Power Consumption
5.07W(220 V / 50 Hz, no PD connected)
77.33W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation
17.238 BTH/h (no PD connected)
262.922 BTH/h(with 65W PD connected)
Others
Package Contents
8-Port Gigabit Desktop Switch with 7-Port PoE(MS108GP)
Power Adapter
Quick Installation Guide
| Weight | 0.87 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
DATA TRANSMISSION
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
DESIGN
| Rack mounting | No |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
ENERGY MANAGEMENT
| Power consumption (typical) | 5.07 W |
| Power source | AC |
| Input voltage | 53.5 V |
| Input current | 1.31 A |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power consumption (max) | 77.33 W |
| Power supply included | Yes |
MANAGEMENT FEATURES
| Web-based management | Yes |
| Switch type | Managed |
| Traffic classification | Yes |
NETWORKING
| Full duplex | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| Half duplex | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 262.922 BTU/h |
OTHER FEATURES
| Input voltage | 53.5 V |
PACKAGING CONTENT
| Cables included | AC |
| Quick start guide | Yes |
PACKAGING DATA
| Cables included | AC |
| Quick start guide | Yes |
PORTS & INTERFACES
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 7 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 65 W |
WEIGHT & DIMENSIONS
| Height | 27 mm |
| Width | 171 mm |
| Depth | 98 mm |
