Mercusys MS105GP 5-Port Gigabit Desktop Switch with4-Port PoE+
| Ports | 5 Ports |
| Managed/Unmanaged | Unmanaged |
| Speed | 10/100/1000 |
| PoE capable | Yes |
£ 18.30
Guaranteed Safe Checkout
Mercusys MS105GP 5-Port Gigabit Desktop Switch
Full Gigabit Ports
5x 10/100/1000 Mbps RJ45 ports

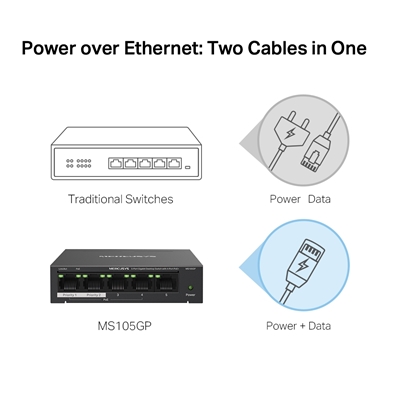

Two Cables in One
With four PoE ports, transfers data and power on one single cable

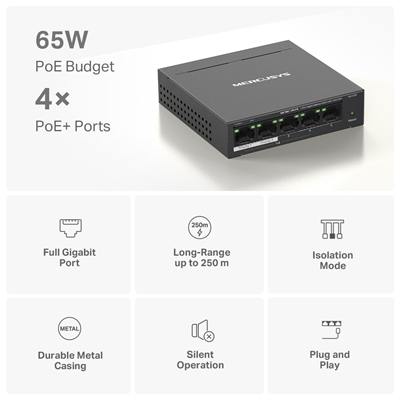

High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports

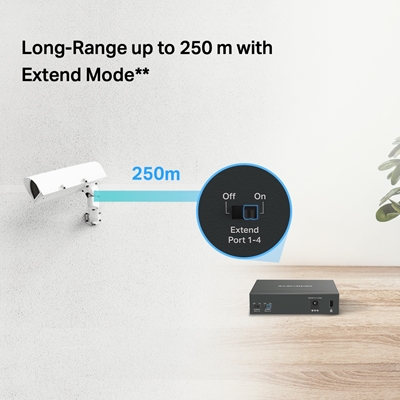

Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode

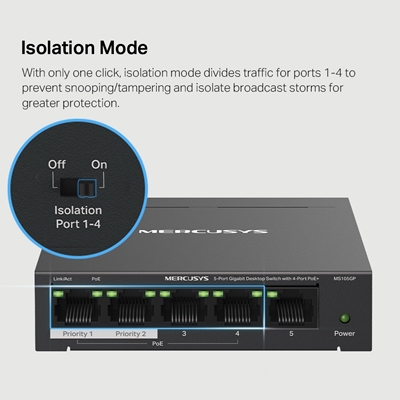

Isolation Mode
One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs

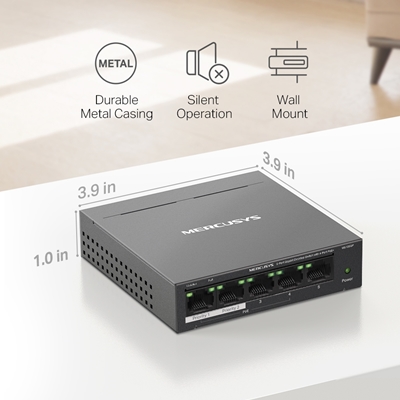

Durable Metal Casing
Allows for efficient heat dissipation and long network life

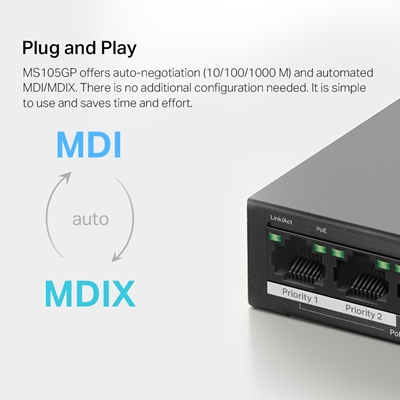

Plug and Play
Simple to use and saves time and effort
Specifications
Hardware
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Dimensions
99.8*98*25mm
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Interfaces
5x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

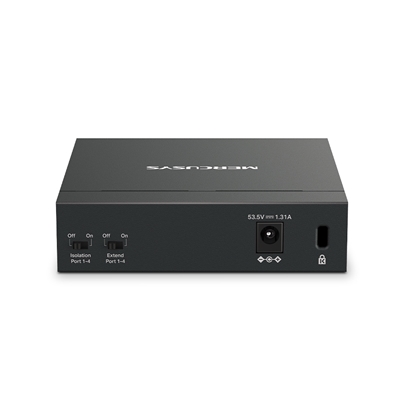

External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Installation
Desktop
Wall Mount
Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame
9 KB
LED
Ethernet Ports (1, 2, 3, 4, 5), Power
MAC Address Table
2K
Max Power Consumption
3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation
10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)
Software
Transfer Method
Store and Forward
Management
Plug and Play

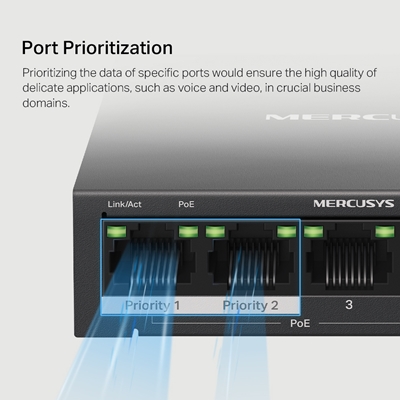

Advanced Features
802.3x Flow Control
IGMP Snooping V1/V2/V3
Isolation Mode
Extend Mode
Others
Package Contents
5-Port Gigabit Desktop Switch with 4-Port PoE(MS105GP)
Power Adapter
Quick Installation Guide
Environment
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% RH non-condensing
Storage Humidity: 5%-95% RH non-condensing
| Weight | 0.47 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
CERTIFICATION
| Certification | CE, RoHS |
DATA TRANSMISSION
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
DESIGN
| Certification | CE, RoHS |
| Rack mounting | No |
| LED indicators | Yes |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
ENERGY MANAGEMENT
| Power consumption (typical) | 3.13 W |
| Power source | DC |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power consumption (max) | 75.15 W |
| Power supply included | Yes |
NETWORKING
| Full duplex | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
OPTICAL FIBER
| Transmission distance (max) | 0.1 km |
PACKAGING CONTENT
| Cables included | AC |
| Quick start guide | Yes |
PACKAGING DATA
| Cables included | AC |
| Quick start guide | Yes |
PORTS & INTERFACES
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
WEIGHT & DIMENSIONS
| Height | 25 mm |
| Width | 99.8 mm |
| Depth | 98 mm |
