Mercusys MP510 KIT AV1000 Wireless N300 Gigabit Powerline Starter Kit (UK Plug)
| Pack Size | Twin Pack |
| Speed | 1000Mbps |
| Pass-Through | No |
£ 37.50
Guaranteed Safe Checkout
Eliminate WiFi Dead Zones — Extend 300 Mbps WiFi wherever you need via your home’s existing wiring
1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2
Super-Fast Wired Connections — A gigabit port for PCs, IPTVs, and game consoles
Plug & Play — Say goodbye to complex wiring and configuration, just plug and play
Easy Expansion — Expand coverage by simply adding more Powerline adapters

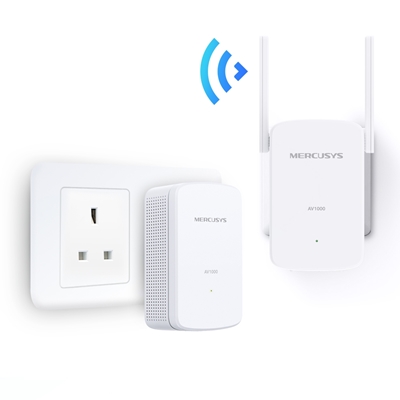

Where there’s an Outlet, There’s WiFi.
The MP510 Kit transmits network data through your existing electrical circuit, which prominently avoids the influence of obstacles on your WiFi. Enjoy extended WiFi wherever you need it with a transmission range of up to 300 meters on the same electrical circuit—perfect for your daily WiFi use.
Dual Gigabit Transmissions
Equipped with advanced HomePlug AV2 technology, your Powerline transmission rate reaches an ultra-fast 1000 Mbps. The included gigabit port helps you receive a high-quality network from any one of your outlets.
Plug & Play
With factory pre-configuration, you can immediately extend your network without complex wiring and configuration as soon as you connect one MP500 to your router and plug the MP510 extender into an outlet wherever you need network service.
Specifications
Software
Modulation Technology
OFDM (PLC)
Security
Wireless: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP Encryption;
Powerline: 128-bit AES Encryption
Compatibility
Compatible with all routers and HomePlug AV/AV2 powerline adapters
Hardware
Dimensions (W X D X H)
MP510: 112 x 84.7 x 39 mm
MP500: 101 x 60 x 36 mm
Button
Pair/Reset Button
Standards and Protocols
HomePlug AV2, IEEE 802.3, IEEE 802.3u, IEEE802.11b/g/n
LED
Power
Power Consumption
MP510: Maximum: 6.28W, Typical: 4.29W
MP500: Maximum: 2.87W, Typical: 2.35W, Standby: 0.64W
Range
Up to 300 meters over an existing electrical circuit
Others
Certifications
CE, RoHS
Package Contents
AV1000 Gigabit Powerline Wi-Fi Kit
1x MP510
1x MP500
Quick Installation Guide
RJ45 Ethernet Cables
System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
| Weight | 0.5 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Certification | CE |
| Antenna type | External |
| LED indicators | Yes |
| Product colour | White |
| Antenna type | External |
| LED indicators | Y |
| Colour of product | White |
| Antennas quantity | 2 |
| Antennas quantity | 2 |
ENERGY MANAGEMENT
| Power consumption (typical) | 4.29 W |
LOGISTICS DATA
| Harmonized System (HS) code | 85171800 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity range | 10 - 90% |
| Operating temperature range (T-T) | 0 - 40 °C |
| Storage relative humidity range | 5 - 90% |
PACKAGING CONTENT
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick installation guide | Yes |
| Quantity per pack | 2 pc(s) |
| Manual | Y |
| Quick installation guide | Y |
PERFORMANCE
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK, WPA3-PSK |
| Plug and Play | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Modulation | OFDM |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Maximum operating distance | 300 m |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate (max) | 1000 Mbit/s |
| Ethernet LAN | Y |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
| Maximum operating distance | 300 m |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Encryption button | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Built-in power socket | N |
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | 802.11g |
SYSTEM REQUIREMENTS
| Mac compatibility | Yes |
| Mac compatibility | Y |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1 |
| Mac operating systems supported | Y |
| Linux operating systems supported | Y |
TECHNICAL DETAILS
| Wireless LAN type | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Data transfer rate (max) | 1000 Mbit/s |
| Ethernet LAN connection | Y |
| LED indicators | Y |
| Colour of product | White |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
| Maximum operating distance | 300 m |
| Harmonized System (HS) code | 85171800 |
| Wireless LAN connection | Y |
| Ethernet LAN data transfer rates | 10,100,1000 Mbit/s |
| Built-in power socket | N |
| Ethernet LAN interface type | Gigabit Ethernet |
| Wi-Fi standard | 802.11g |
WEIGHT & DIMENSIONS
| Height | 39 mm |
| Width | 112 mm |
| Depth | 84.7 mm |
