Mercusys ME60X AX1500 Wi-Fi Range Extender
| Connection Type | Range Extender |
| Speed | 1500Mbps |
| Access Point | Yes |
£ 23.58
Guaranteed Safe Checkout
Mercusys ME60X AX1500 Wi-Fi 6 Range Extender

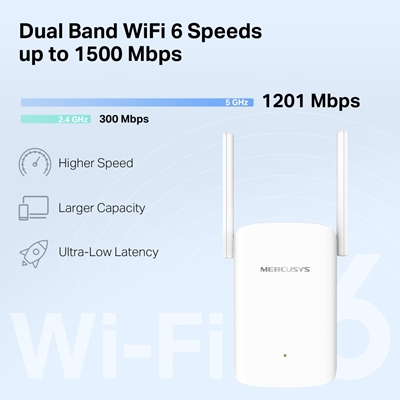

Dual Band Speeds up to 1500 Mbps
1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

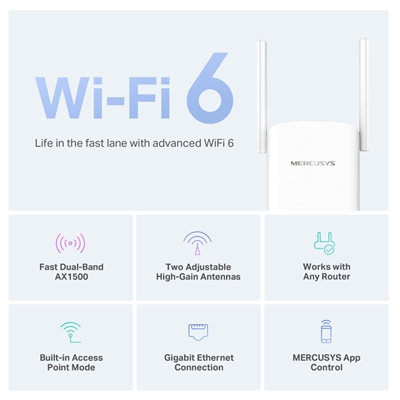

Armed with WiFi 6
Improves virtually every aspect of your network: speed, efficiency, and capacity.
Gigabit Wired Connection
Provides speedy wired connections for PCS, IPTVS.and game consoles.

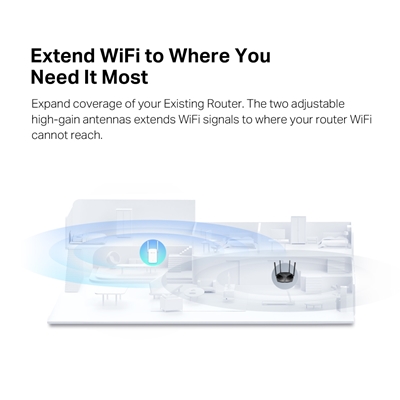

Works with Any Routers
To Extend WiFi to Where You Need It Most.
Easy One-Touch Setup
Press the WPS button to expand your Wi-Fi coverage in seconds.

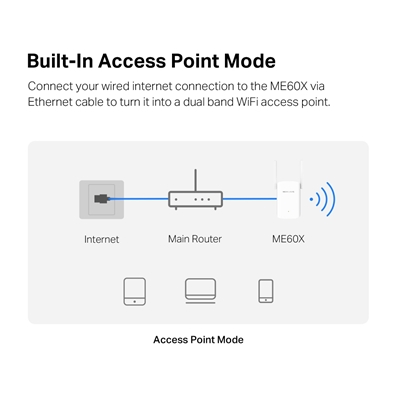

Built-In Access Point Mode
Works as RE mode and AP mode.

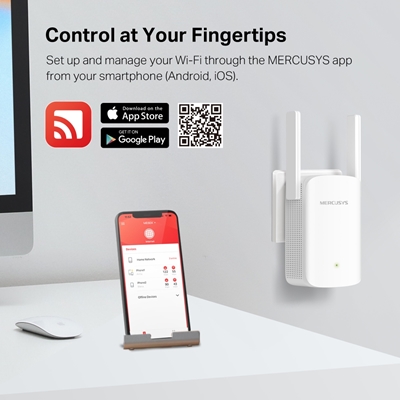

Manage Your Network with App
Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
Specifications
Wireless
Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz,
IEEE 802.11b/g/n 2.4GHz
Frequency
2.4GHz and 5GHz
Signal Rate
300 Mbps at 2.4GHz, 1201 Mbps at 5GHz
Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -58 dBm
11a 6Mbps: -94 dBm
11a 54Mbps: -76 dBm
11ac VHT80 MCS0: -91dBm
11ac VHT80 MCS9: -63dBm
2.4 GHz:
11g 6Mbps: -95 dBm
11g 54Mbps: -77 dBm
11n HT40: -72dBm
Wireless Security
WPA, WPA2, WPA3-PSK
Hardware
Dimensions (W X D X H)
84.7 x 39 x 112 mm (Without Plug)
Interfaces
1 Gigabit Ethernet Port
Button
WPS / Reset Button
Antenna Type
2x External Antennas
Power Consumption
10W
Others
Certifications
RoHS
Package Contents
Wi-Fi Range Extender ME60X
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
| Weight | 0.29 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
ANTENNA
| Antennas quantity | 2 |
CERTIFICATES
| Compliance certificates | RoHS |
DESIGN
| LED indicators | Yes |
| Product colour | White |
| Reset button | Yes |
ENERGY MANAGEMENT
| Power consumption (typical) | 10 W |
NETWORKING
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Security algorithms | WPA, WPA2, WPA3-PSK |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
PACKAGING CONTENT
| Quick start guide | Yes |
PACKAGING DATA
| Package type | Box |
PERFORMANCE
| Type | Network repeater |
| Data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WPS push button | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
TECHNICAL DETAILS
| Compliance certificates | RoHS |
WEIGHT & DIMENSIONS
| Height | 112 mm |
| Width | 84.7 mm |
| Depth | 39 mm |
