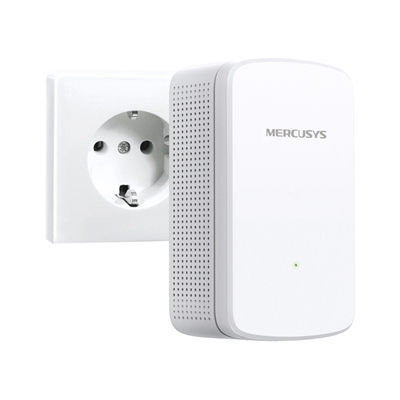

Mercusys ME10 N300 Wi-Fi Range Extender
| Connection Type | Range Extender |
| Speed | 300Mbps |
| Access Point | Yes |
£ 10.10
Guaranteed Safe Checkout
Mercusys 300 Mbps Wi-Fi Range Extender

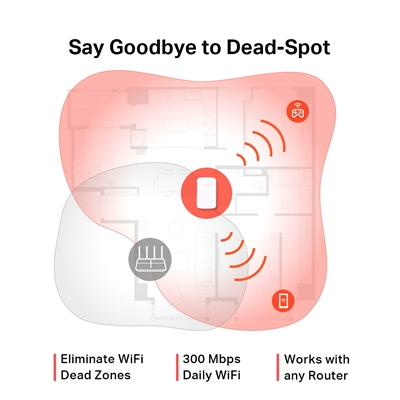

Eliminate WiFi Dead Zones
Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
300 Mbps Daily WiFi
Enjoy a fast and stable extended WiFi anywhere up to 300 Mbps, meeting the needs of your daily life
Easy One-Touch Setup
Simply press the WPS button to expand your WiFi coverage in seconds

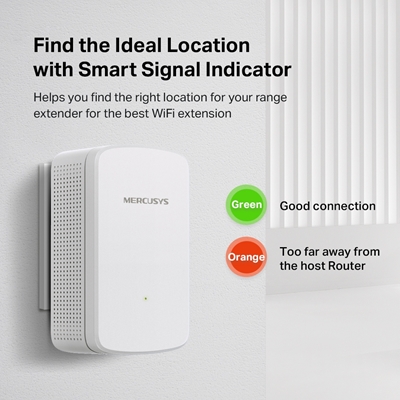

Signal Indicator
Multicolor LED helps you find the right location for your range extender for the best WiFi extension

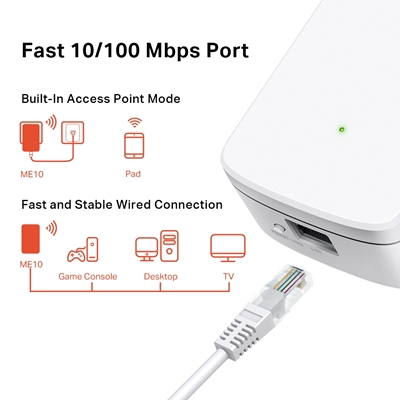

Fast 10/100 Mbps Port
Provides speedy wired connections for PCs, IPTVs, and game consoles
Works with Any Router or Wireless Access Point
Specifications
Wireless
Wireless Standards
IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 – 2.5 GHz
WiFi Speeds
Up to 300 Mbps
Reception Sensitivity
2.4GHz:
11B 1M < -94 dBm
11N HT40 MCS7 < -72 dBm
Transmission Power
= 20 dBm
Wireless Security
WPA-PSK/WPA2-PSK
Hardware
Dimensions
101 x 60 x 36 mm
Interfaces
10/100Mbps RJ45 Port
Button
RESET/WPS Button
Power
= 3.2 W
Others
Certifications
CE, RoHS
Package Contents
Wi-Fi Range Extender (ME10)
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
| Weight | 0.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Product colour | White |
| Reset button | Yes |
ENERGY MANAGEMENT
| Power consumption (typical) | 3.2 W |
NETWORKING
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
PACKAGING CONTENT
| Quick start guide | Yes |
PERFORMANCE
| Type | Network repeater |
| Data transfer rate | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| WPS push button | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
WEIGHT & DIMENSIONS
| Height | 101 mm |
| Width | 60 mm |
| Depth | 36 mm |
