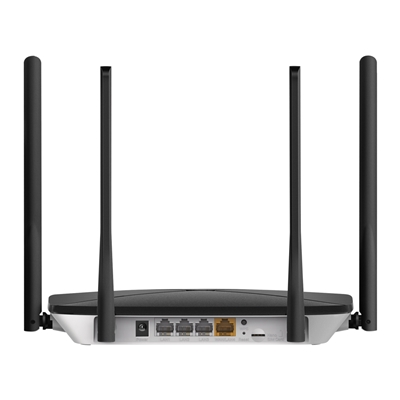

Mercusys MB115-4G N300 Wi-Fi 4G LTE Router

Mercusys MB115-4G 300 Mbps Wireless N 4G LTE Router

4G network
Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

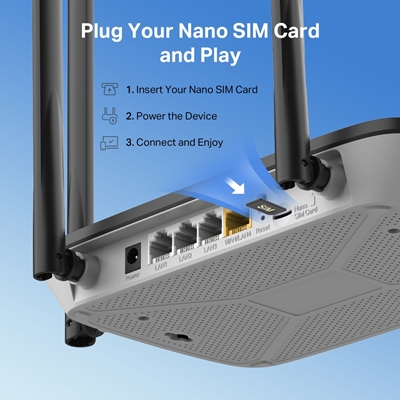

Plug a SIM card and play
No configurations needed, compatibility of SIM cards are assured by years of field tests

300 Mbps WiFi
Fast WiFi speeds up to 300 Mbps to share your network

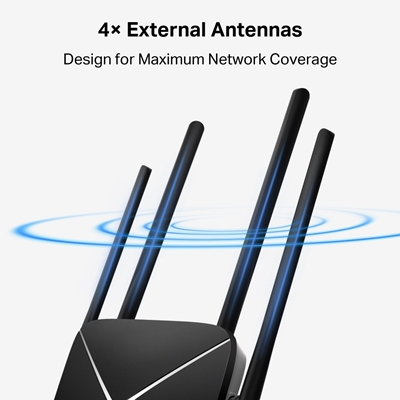

Maximum Network Coverage
Enjoy stable and efficient connections to every device thanks to the four external antennas

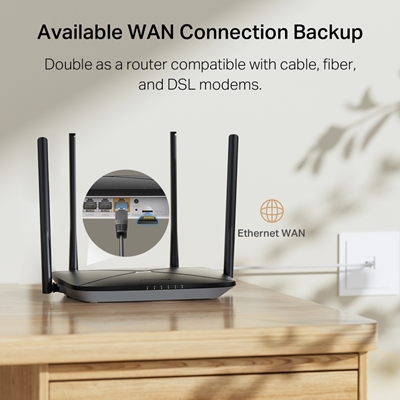

Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can’t get a 4G connection
*Notes: Make sure your SIM card is unlocked.

WirelessWireless Standards
IEEE 802.11b/g/n

Frequency
2.4 GHz

Signal Rate
300 Mbps

Reception Sensitivity
11g 54M: -74.5 dBm
11n HT20 MCS7: -73.5 dBm
11n HT40 MCS7: -70.5 dBm

Transmission Power
< 20 dBm (2.4 GHz) Wireless Security WPA-PSK / WPA2-PSK Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics Software DHCP Server Hardware Dimensions (W X D X H) 219 x 140 x 32 mm (8.62 x 5.51 x 1.26 in) Interfaces 1x 10/100Mbps LAN/WAN Port 3x 10/100Mbps LAN Ports 1x Nano SIM Card Slot Button WPS Reset Button Ethernet Ports 1x 10/100 Mbps LAN/WAN Port 3x 10/100 Mbps LAN Ports Network Type EU: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40 (2600/2300 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) Others Package Contents 300 Mbps Wireless N 4G LTE Router (MB115-4G) Power Adapter RJ45 Ethernet Cable Quick Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing
