Mercusys MA20N AC650 Nano Wi-Fi USB Adapter
| Internal/External | Internal |
| Connection | USB2.0 |
£ 8.25
Guaranteed Safe Checkout
Mercusys MA20N AC650 Nano Wireless Dual Band USB Adapter
Dual Band Wi-Fi Speed
Speeds up to 433 Mbps (5 GHz) + 200 Mbps (2.4 GHz)
Plug and Play
With the built-in inbox driver by Windows operation systems, you just need to plug into your computer and play.

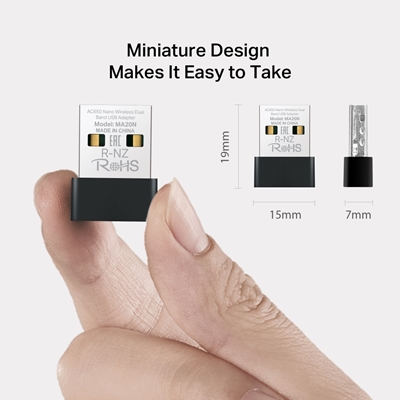

Nano Size
A compact, convenient solution to make your device wireless. Much smaller than a regular USB flash drive.
Improved Security
The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Windows Compatible
Supported operating system: Windows 10, 11 (32/64bit)
Specifications
Wireless
Wireless Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
5 GHz
2.4 GHz
WiFi Speeds
Up to 433 Mbps on 5 GHz
Up to 200 Mbps on 2.4 GHz
Reception Sensitivity
5GHz:
11a 6Mbps: -95dBm
11a 54Mbps: -78 dBm
11ac VHT20 MCS8: -72 dBm
11ac VHT40 MCS9: -68.5dBm
11ac VHT80 MCS9: -64.5 dBm
2.4GHz:
11g 6Mbps: -95.5 dBm
11g 54Mbps: -79 dBm
11n HT20 MCS7: -76 dBm
11n HT40 MCS7: -74 dBm
Wireless Security
WPA/PSK, WPA2-PSK, WPA3-SAE
Hardware
Dimensions
14.94×7.19×19.15mm
Interfaces
USB 2.0
Antenna Type
1 Internal Antenna
Others
Package Contents

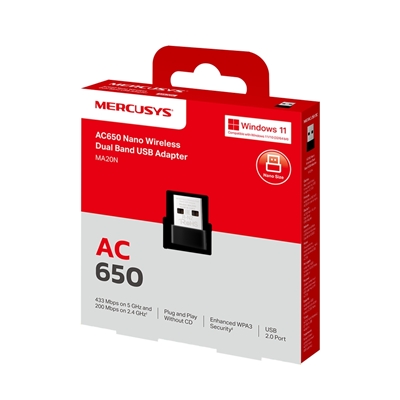

AC650 Nano Wireless Dual Band USB Adapter (MA20N)
Quick Installation Guide
System Requirements
Windows 11/10 (32/64-bit)
| Weight | 0.03 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Internal | No |
| Plug and Play | Yes |
| Product colour | Black, Metallic |
| Component for | PC/Thin Client/Tablet/Server/Workstation |
NETWORKING
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3-PSK |
| Maximum data transfer rate | 650 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 200,433 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
OTHER FEATURES
| Quantity per pack | 1 pc(s) |
PACKAGING CONTENT
| Quick installation guide | Yes |
PACKAGING DATA
| Package type | Hanging box |
| Quantity per pack | 1 pc(s) |
PORTS & INTERFACES
| Interface | WLAN |
| Connectivity technology | Wireless |
| Host interface | USB Type-A |
| USB version | 2.0 |
| USB connector form factor | Straight |
SYSTEM REQUIREMENTS
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
TECHNICAL DETAILS
| Compliance certificates | EAC, RoHS |
WEIGHT & DIMENSIONS
| Height | 7.19 mm |
| Width | 14.9 mm |
| Depth | 19.1 mm |
