Mercusys Halo H60X AX1500 Whole Home Mesh Wi-Fi 6 System (3 Pack)

Mercusys Halo H60X AX1500 Whole Home Mesh WiFi 6 System

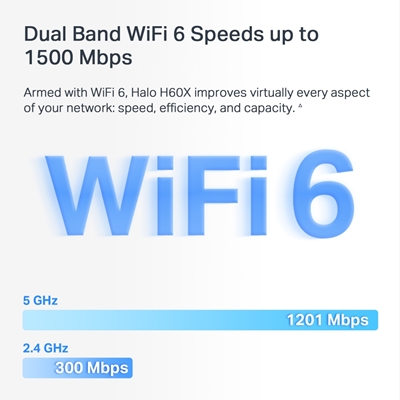

Dual Band WiFi 6 Speeds up to 1500 Mbps
1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

Seamless Roaming with One Unified Network
Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

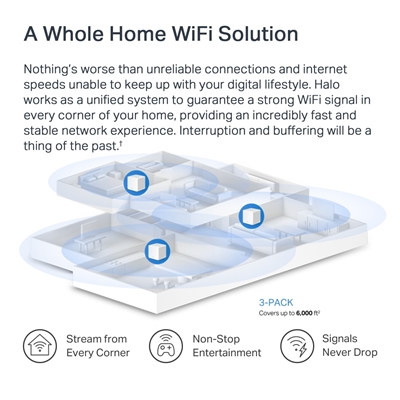

Whole Home Coverage
Blanket up to 6,000 ft² (550 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.

Connect over 100 Devices
Provide fast and stable connections over 100 devices.

Easily Manage Your Home Network
Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
Full Gigabit Ports – Gigabit ports for lightning-fast wired connections.**
*Please note that the Halo H series and S series cannot work together.

Specifications

Wireless

Wireless Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

Signal Rate
1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz

Reception Sensitivity
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm

5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11ax HE20 MCS11:-66dBm
11ax HE40 MCS11:-63dBm
11ax HE80 MCS11:-61dBm

Transmission Power
2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) Wireless Security WPA-PSK/WPA2-PSK/WPA3 Mesh protocol 802.11k/v/r Software Operation Modes Router, Access Point Quality of Service WMM WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management Local Management, Remote Management, Multi-Managers DHCP Server, Client Firewall Security SPI Firewall Protocols Supports IPv4 and IPv6 Guest Network 2.4 GHz Guest Network, 5 GHz Guest Network Hardware Dimensions (W X D X H) 3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm) Interfaces Halo H60XR: 3x Gigabit WAN/LAN Ports Halo H60XS: 2x Gigabit LAN Ports Button Reset button Others Package Contents - 3-pack 1x Halo H60XR Unit+ 2x Halo H60XS Units 1x RJ45 Ethernet Cable 3x Power Adapters Quick Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing
