Mercusys Halo H30 AC1200 Whole Home Mesh Wi-Fi System (3 Pack)
| Product Type | Mesh System |
| Included Nodes | 3 |
| Mesh Speed | AC1200 |
£ 46.58
Guaranteed Safe Checkout
Mercusys Halo H30 AC1200 Whole Home Mesh Wi-Fi System
One Unified Network
With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.
Seamless Roaming
Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.
Whole Home Coverage
Blanket up to 3,500 ft² (320 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.
1.2 Gbps Dual Band WiFi
Halo H30 provides fast and stable connections up to 100 devices with speeds of up to 1,200 Mbps and works with major internet service providers (ISPs) and modems.
Easy App Control
Use the MERCUSYS App to quickly set up and manage your WiFi.
*Please note that the Halo H series and S series cannot work together.
Specifications
Wireless
Wireless Standards
IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
Signal Rate
867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
Reception Sensitivity
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm
5GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK/WPA2-PSK
Mesh protocol
802.11k/v/r
Software
Operation Modes
Router, Access Point
Quality of Service
WMM
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Local Management, Remote Management, Multi-Managers
DHCP
Server, Client
Firewall Security
SPI Firewall
Protocols
Supports IPv4 and IPv6
Guest Network
2.4 GHz Guest Network x 1,
5 GHz Guest Network x 1
Hardware
Dimensions (W X D X H)
3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm)
Interfaces
2x 10/100 Mbps Ethernet Ports per Halo Unit (WAN/LAN auto-sensing)
Button
Reset button
Others

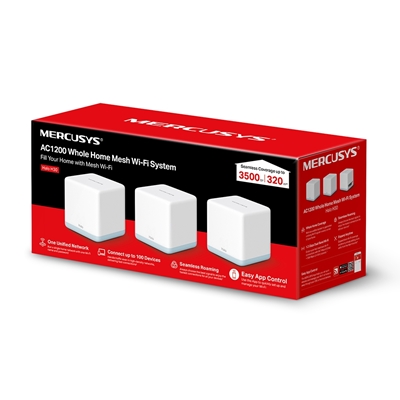

Package Contents - 3-pack
3x Halo H30 Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide
| Weight | 0.85 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Antenna type | Internal |
| LED indicators | Yes |
| Product colour | White |
| Operating temperature (T-T) | Yes |
| Reset button | Yes |
| Product type | Mesh system |
| Maximum coverage | 320 m² |
FEATURES
| Firewall security | SPI Firewall |
| Quality of Service (QoS) support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Port forwarding | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
PACKAGING CONTENT
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 3 pc(s) |
| Number of units included | 3 pc(s) |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
PROTOCOLS
| DHCP client | Yes |
| DHCP server | Yes |
WEIGHT & DIMENSIONS
| Height | 88 mm |
| Width | 88 mm |
| Depth | 88 mm |
WIRELESS LAN FEATURES
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | WPA, WPA2, WPA3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| IGMP snooping | Yes |
| Guest access | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static IP | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Wireless Distribution System (WDS) bridge | Yes |
