Mercusys Halo H25BE BE3600 Whole Home Mesh Wi-Fi 6 System (3 Pack)
| Product Type | Mesh System |
| Included Nodes | 3 |
| Mesh Speed | BE3600 |
£ 188.70
Guaranteed Safe Checkout
Mercusys BE3600 Halo H25BE Whole Home Mesh Wi-Fi 7 System
Blazing-Fast 3.6 Gbps Dual-Band Speeds
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Newest Wi-Fi 7
Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.
Seamless Roaming for a Smooth Network Experience
No more sudden signal drops or lagging Wi-Fi when you’re walking around the house.
Multi-Link Operation (MLO) Increases throughput, reduces latency, and improves reliability for emerging applications.

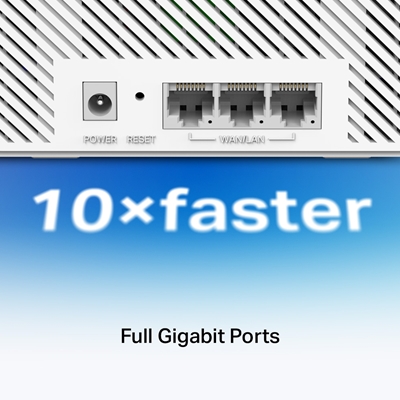

Full Gigabit Ports
3x Gigabit ports per Halo unit for lightning-fast wired connections.

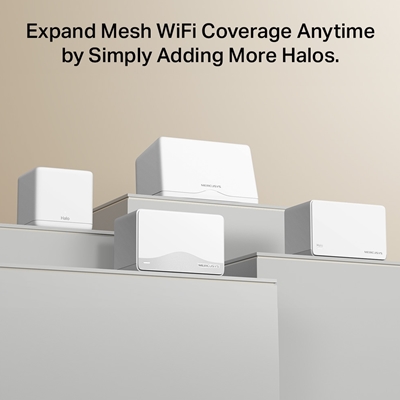

Whole Home Multi-Gigabit Coverage
Halo mesh units work as a unified network to fill your home up to 7,000 ft2 / 650 m2 (3-pack) ; 5,000 ft² / 460 m² (2-pack) .
Specifications
Wireless
Wireless Standards
5 GHz: IEEE 802.11b/g/n/ac/ax/be mixed
2.4 GHz: IEEE 802.11b/g/n/ax/be mixed
Signal Rate
2880 Mbps at 5 GHz
688 Mbps at 2.4 GHz
Reception Sensitivity
2.4G: -97dBm
5G: -98.5dBm
Transmission Power
5G band1 band2 < 23dBm
5G band3 < 30dBm
2.4G band < 20dBm
Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE
Mesh protocol
802.11k/v/r
Software
Operation Modes
Router, Access Point
Quality of Service
WMM
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Local Management, Remote Management, Multi-Managers
DHCP
Server, Client
Firewall Security
SPI Firewall
Protocols
Supports IPv4 and IPv6
Guest Network
2.4 GHz Guest Network
5 GHz Guest Network

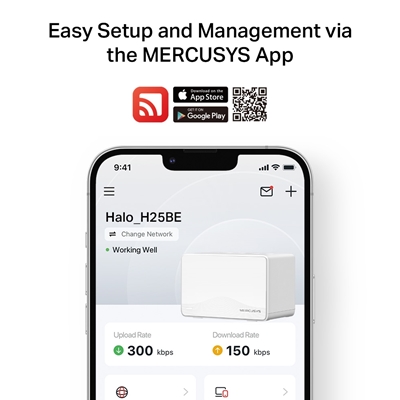

Easy Setup and Use
Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.
Hardware
Dimensions (W X D X H)
5 x 3.2 x 3.3 in (128 x 81.3 x 83.7 mm))
Interfaces
3x 1 Gbps Ports (WAN/LAN auto-sensing)
Button
Reset button
Others Package Contents
3-pack
3x Halo H25BE Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
| Weight | 1.69 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.mercusys.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Antenna type | Internal |
| LED indicators | Yes |
| Product colour | White |
| Number of devices supported | 150 |
| Operating temperature (T-T) | Yes |
| Reset button | Yes |
| Product type | Mesh system |
| Maximum coverage | 650 m² |
FEATURES
| DHCP client | Yes |
| DHCP server | Yes |
| Parental control | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
PACKAGING CONTENT
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 2 pc(s) |
| Number of units included | 2 pc(s) |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Ethernet WAN | Yes |
PROTOCOLS
| DHCP client | Yes |
| DHCP server | Yes |
WEIGHT & DIMENSIONS
| Height | 83.7 mm |
| Width | 128 mm |
| Depth | 81.3 mm |
WIRELESS LAN FEATURES
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3-SAE |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Guest access | Yes |
| Static IP | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 2880 Mbit/s |
| WLAN data transfer rate (first band) | 2880 Mbit/s |
| WLAN data transfer rate (second band) | 688 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
