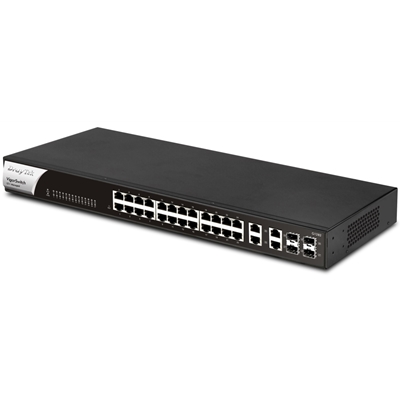

DrayTek VSG1282-K VigorSwitch G1282 24 Port Gigabit Smart Managed Switch with 4x 10GbE SFP Ports
£ 154.00
Guaranteed Safe Checkout
VigorSwitch G1282
Smart Managed Gigabit Switch with 24 Gigabit Ports & 4 SFP Ports
The VigorSwitch G1282 is a high-performance, Smart Managed Gigabit Ethernet switch. With 24 RJ-45 Gigabit LAN ports, it’s ideal for adding network ports to a DrayTek Vigor router, implementing complex networks with VLANs and adding port-level security with the switch’s Access Control List.
Designed for centralised management, the VigorSwitch G1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device’s Web Interface.
Automatic VLAN Assignment
Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.
Useful Security Features
Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.
IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
4 SFP Ports for Uplinks
Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.
Rack Mountable & Silent
Fit the VigorSwitch G1282 with the included rack mounting kit into any standard 19? rack.
The switch is fanless and silent, ideal for use in a quiet office environment.
| Weight | 2.8 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.draytek.co.uk
Warranty:
Manufacturers Warranty – For further details please visit the manufacturers website.
DATA TRANSMISSION
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 41.7 Mpps |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
DESIGN
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
ENERGY MANAGEMENT
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 36 W |
| Power supply included | Yes |
MANAGEMENT FEATURES
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Switch type | Managed |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
MULTICAST FEATURES
| Multicast support | Yes |
NETWORKING
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| MAC address auto-learning supported | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Voice VLAN |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
PACKAGING CONTENT
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
PACKAGING DATA
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
PERFORMANCE
| Fanless | No |
PORTS & INTERFACES
| Combo SFP ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | No |
SECURITY
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
WEIGHT & DIMENSIONS
| Weight | 2.8 kg |
| Height | 44 mm |
| Width | 441 mm |
| Depth | 206 mm |
