DrayTek V167-K Vigor 167 VDSL and ADSL2+ Ethernet Modem/Bridge
| Category | Modem |
| POE Enabled | No |
£ 81.00
Guaranteed Safe Checkout
The Vigor 167 is VDSL2 35b and ADSL2+ modem to Ethernet bridge, connecting VDSL or ADSL to your Ethernet-based Router or Firewall. It provides proven compatibility with UK VDSL2 and ADSL2+ networks.
DrayTek’s Vigor 167 is an ideal modem to connect your DrayTek Vigor router, or any Router and Firewall, to a DSL line.
Add DSL connectivity to any Router
Ideal Partner device for DrayTek dual-WAN products or any other vendor’s Ethernet WAN firewall. Reports DSL Line Status on DrayTek Vigor routers.
No Setup Needed
Works as a modem with most ISPs, straight out of the box. Pre-Configured to work with most UK ISPs. Just set the username and password on your router.

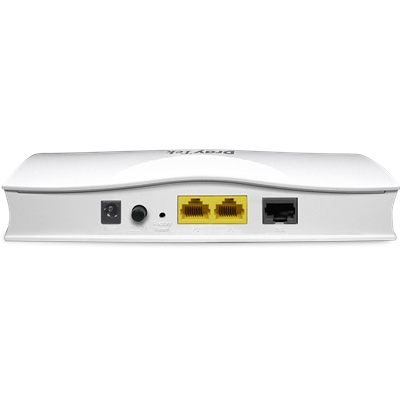

Two Gigabit LAN Ports
Connect two devices to the Vigor 167 with 2 Gigabit (10/100/1000Mbps) LAN ports. Implement High Availability more easily and manage the modem conveniently.
Wall or Shelf Mountable
Can be installed securely on a wall or shelf with screw fixings to hold it in place. Mounting kit included.
| Weight | 0.85 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.draytek.co.uk
Warranty:
2 year repair warranty. End user to obtain RMA number from DrayTek support, who will then arrange repair via UK service centre. https://www.draytek.co.uk/support/techquery
DATA TRANSMISSION
| Maximum data transfer rate | 300 Mbit/s |
| Downstream data rate | 20 Mbit/s |
| Upstream data rate | 300 Mbit/s |
ENERGY MANAGEMENT
| Power consumption (typical) | 4.4 W |
| DC input voltage | 12 V |
FEATURES
| LED indicators | Yes |
ILLUMINATION/ALARMS
| LED indicators | Yes |
MODEM
| Interface | RJ-45, RJ-11 |
| Modem speed | 30000 Kbit/s |
| Antenna type | Internal |
| VDSL | Yes |
| VDSL2 | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 0 - 45% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
PROTOCOLS
| Routing protocols | IP |
WEIGHT & DIMENSIONS
| Weight | 270 g |
| Height | 125 mm |
| Width | 40 mm |
| Depth | 181 mm |
