Viewsonic (TD2223) 22 Inch IR Touch Monitor, 1920 x 1080, LED, Full HD, 10 Point Multi Touch, Speakers, VESA

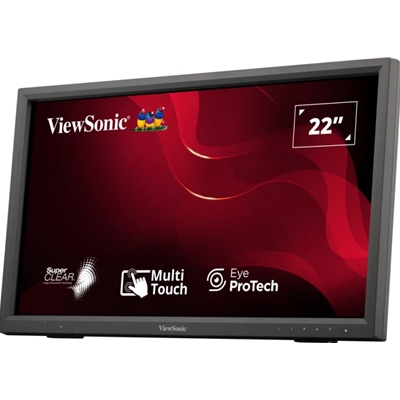

Viewsonic TD2223 22 ” IR Touch Monitor

The ViewSonic TD2223 is a 22? IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

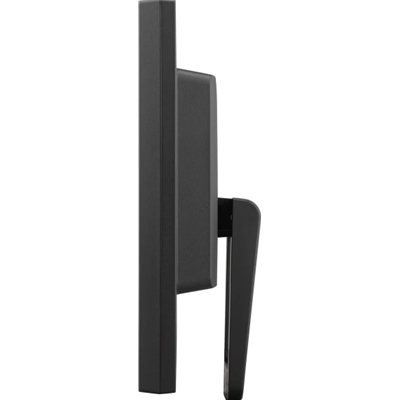

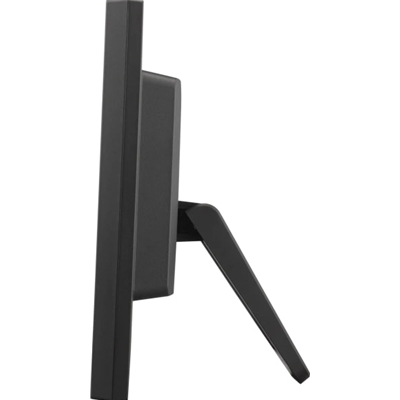

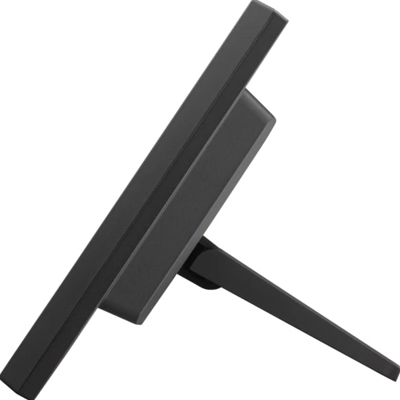

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Full HD 1080p
Full HD 1920×1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

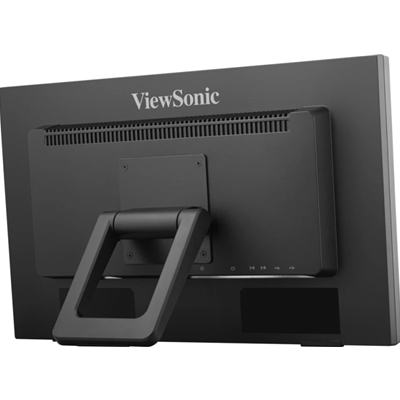

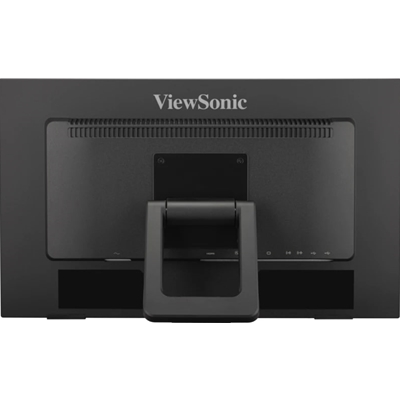

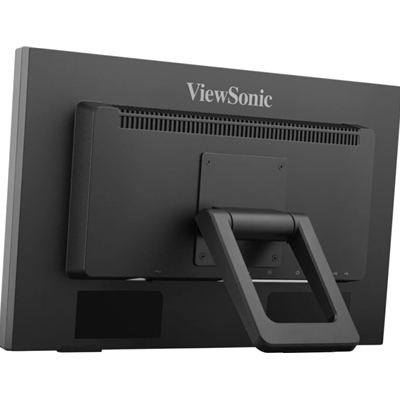

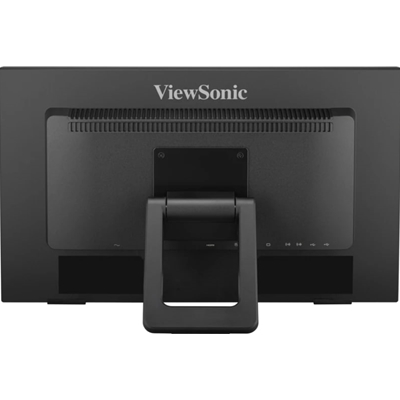

Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilising the 100mm x 100mm VESA-compatible mount design.

Specifications

Display

Display Size (in.):
22

Viewable Area (in.):
21.5

Panel Type:
VA Technology

Resolution:
1920 x 1080

Resolution Type:
FHD (Full HD)

Static Contrast Ratio:
3,000:1 (typ)

Dynamic Contrast Ratio:
1.4

High Dynamic Range:
20M:1

Light Source:
LED

Brightness:
250 cd/m² (typ)

Colors:
16.7M

Color Space Support:
8 bit true

Aspect Ratio:
16:9

Response Time (Typical GTG):
6.5ms

Response Time (GTG w/OD):
6.5ms

Viewing Angles:
178� horizontal, 178� vertical

Backlight Life (Hours):
30000 Hrs (Min)

Curvature:
Flat

Refresh Rate (Hz):
75

Low Blue Light:
Software solution

Flicker-Free:
Yes

Color Gamut:
NTSC: 72% size (Typ)

sRGB:
104% size (Typ)

Pixel Size:
0.249 mm (H) x 0.241 mm (V)

Touch Screen:
IR, 10-point multi-touch

Surface Treatment:
Glossy, Hard Coating (7H)

Cover Glass Thickness:
2mm

Compatibility

PC Resolution (max):
1920×1080

Mac Resolution (max):
1920×1080

PC Operating System:
Windows 10/11 certified; macOS tested

Mac Resolution (min):
1920×1080

Connector

VGA:
1

USB 2.0 Type A:
2

USB 2.0 Type B:
1

3.5mm Audio In:
1

3.5mm Audio Out:
1

HDMI 1.4:
1

DVI-D:
1

Power in:
3-pin Socket (IEC C14 / CEE22)

Audio

Internal Speakers:
2Watts x2

Power
Eco Mode (Conserve): 13W
Eco Mode (optimized): 16W
Consumption (typical): 18.5W
Consumption (max): 21.8W
Voltage: AC 100-240V
Stand-by: 0.5W

Power Supply:
Internal Power Supply

Additional Hardware

Kensington Lock Slot
1

Cable Organization
Yes

Controls

Physical Controls:
1, 2, Up, Down, Power

On Screen Display:
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

Wall Mount
VESA Compatible: 100 x 100 mm

Input Signal

Frequency Horizontal:
RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz

Frequency Vertical:
RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz

Video Input
Digital Sync: TMDS – DVI-D, TMDS – HDMI (v1.4)
Analog Sync: Separate/Composite/SOG – RGB Analog

Ergonomics
Tilt (Forward/Back): 20� / 40�

Weight (imperial)
Net (lbs): 9.3
Net Without Stand (lbs): 8
Gross (lbs): 12.6

Weight (metric)
Net (kg): 4.2
Net Without Stand (kg): 3.7
Gross (kg): 5.7

Dimensions (imperial) (wxhxd)
Packaging (in.): 22.8 x 15.9 x 6.4
Physical (in.): 20.4 x 12.9 x 4
Physical Without Stand (in.): 20.4 x 12.1 x 2.4

Dimensions (metric) (wxhxd)
Packaging (mm): 580x 405 x 162
Physical (mm): 519 x 329 x 101
Physical Without Stand (mm): 519 x 308x 61
