Viewsonic TD1655 16-Inch USB-C Multi-Touch, IPS Portable Monitor, 1920×1080, 60Hz, Mini HDMI, Speakers, 6.5ms, Metallic with Foldable Stand, Pivotable Display
| Screen Size (in) | 16 |
| Max Resolution | 1920x1080 |
| Refresh Rate | 60Hz |
| Response Time | 6.5ms |
| Display Port | No |
| Height Adjustable | No |
| Curved Screen | No |
£ 182.88
Guaranteed Safe Checkout
16″ USB-C Multi-Touch Portable Monitor
The ViewSonic TD1655 is a portable 16″ Full HD monitor with 10-point multitouch capability designed for dual-screen productivity beyond the office. Extend your display from phone, tablet, or laptop to a larger screen for seamless multitasking, personalised one-on-one presentation, or relaxed entertainment. The two universal USB-C connectors provide a one-cable solution for multimedia transfer and power charging. Tailor your work setup to your preferences with adjustable viewing angles and the option for both landscape and portrait display layouts. With a detachable magnetic anti-slip cover, metal case, and foldable aluminum stand designed for convenient mobility, enhance your mobile workstation anywhere, anytime.
Take Productivity with You
Stay productive wherever you are with an expanded screen real estate from your laptop, tablet or phone using the TD1655 portable monitor, perfect for multitasking and meetings on-the-go.
Effortless Portability
Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden
Advanced Touch Capabilities and Screen Performance
Advanced Touch Capabilities and Screen Performance

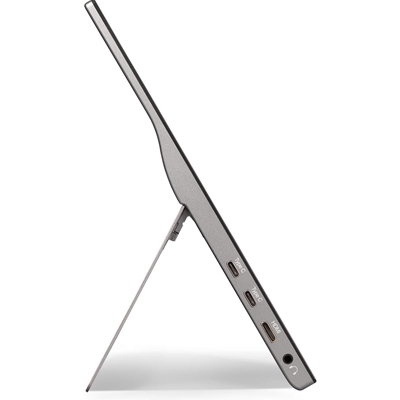

Hassle-free Connectivity
Dual USB-C ports for all your connectivity needs, enabling smooth audio, video, and touch data transfer, as well as bi-directional power charging through a single cable.
Flexible Display Setup

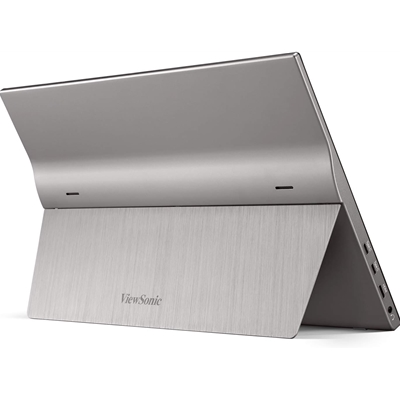

Work in your preferred setup – the built-in foldable aluminum stand with a durable hinge, tilts up to 60 degrees for easy adjustment of viewing angles.
Landscape & Portrait Layout
Switch between landscape and portrait display orientations, with the portrait layout ideal for tasks like table reviewing, programming, photo editing, gaming, and more.
Expand your workspace to a second screen
Simply connect your laptop, smartphone or tablet to the monitor and experience a more productive work environment, easier web browsing and a more immersive viewing experience as you stream on the go.
Extra On-Carry Protection
A robust metal case with detachable magnetic cover protects the monitor from damage during transport and prevents sliding on slippery surfaces.
Certified Environmentally Sustainable
Environmentally conscious, this monitor adheres to the EPEAT® and ENERGY STAR® standards, saving energy cost and reducing environmental impact over its lifecycle.
Specification
Display Size (in.):
16
Viewable Area (in.):
15.6
Panel Type:
IPS Technology
Resolution:
1920 x 1080
Resolution Type:
FHD
Response Time (Typical GTG):
6.5ms
Refresh Rate (Hz):
60
Brightness
250 cd/m² (typ)
Ratio
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 50M:1
Pixel Size:
0.179 mm (H) x 0.179 mm (V)
Touch Screen:
Projected Capacitive, 10-point multi-touch

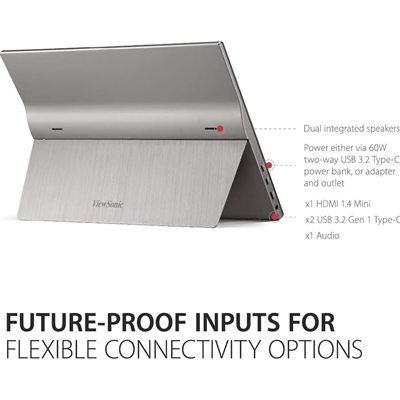

Connector
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
3.5mm Audio Out: 1
Mini HDMI: 1
Power in: USB Type C (with video & data)
Power
Eco Mode (Conserve): 6W
Eco Mode (optimized): 6.9W
Consumption (typical): 8W
Consumption (max): 8.3W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Weight
Net (kg): 0.96
Net Without Stand (kg): 0.96
Gross (kg): 2.3

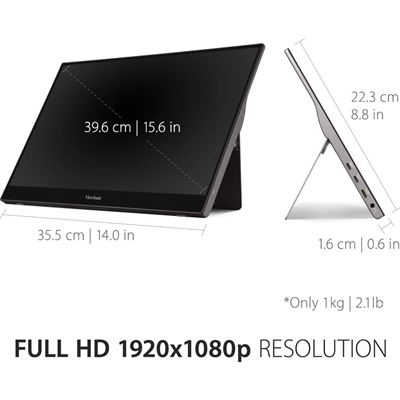

Dimensions (metric) (wxhxd)
Dimensions (imperial) (wxhxd)
Packaging (in.): 17.3 x 11.3 x 3.5
Physical (in.): 13.99 x 8.8 x 0.58
Physical Without Stand (in.): 13.99 x 8.8 x 0.58
Dimensions (metric) (wxhxd)
Packaging (mm): 440 x 288 x 89
Physical (mm): 355.46 x 223.44 x 14.7
Physical Without Stand (mm): 355.46 x 223.44 x 14.7
Ergonomics
Tilt (Forward/Back): 20� / 60�
| Weight | 1.0 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.viewsoniceurope.com
Warranty:
2 Year Pickup, Repair and Return www.viewsoniceurope.com/uk/support/warranties/united-kingdom/ **RESELLERS**DOA unit – exchange or refund by issuing a ticket via https://www.viewsonic.com/uk/contact/.
DESIGN
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Product colour | Black, Silver |
DISPLAY
| Pixel pitch | 0.179 x 0.179 mm |
| Contrast ratio (typical) | 800:1 |
| Horizontal scan range | 15 - 82 kHz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Vertical scan range | 50 - 75 Hz |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 5 - 90% |
| Display brightness | 250 cd/m² |
| Response time | 6.5 ms |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal (metric) | 39.6 cm |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Touchscreen | Yes |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 60 Hz |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Display technology | LED |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Panel type | IPS |
| Screen shape | Flat |
| Display number of colours | 262144 colours |
ENERGY MANAGEMENT
| Power consumption (typical) | 8 W |
| Power supply type | AC |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 8 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 385512 |
ERGONOMICS
| Wall mountable | No |
| Tilt angle range | -20 - 60° |
| Tilt adjustment | Yes |
LOGISTICS DATA
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 196.8 cm |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 8528521000 |
MULTIMEDIA
| Built-in microphone | No |
| RMS rated power | 1.6 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
OTHER FEATURES
| Weight | 1 kg |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Display viewable area (HxV) | 344 x 194 mm |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 10 |
| Compliance certificates | CE, REACH, RoHS |
PACKAGING CONTENT

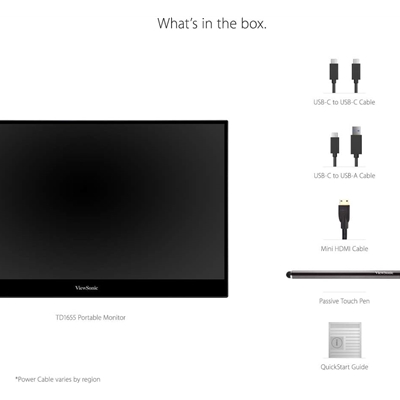

| Cables included | Mini-HDMI, USB Type-C, USB Type-C to USB Type-A |
PACKAGING DATA
| Package weight | 2.3 kg |
| Cables included | Mini-HDMI, USB Type-C, USB Type-C to USB Type-A |
| Package depth | 288 mm |
| Package height | 89 mm |
| Package width | 440 mm |
PERFORMANCE
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
PORTS & INTERFACES
| Audio output | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-C |
SUSTAINABILITY
| Sustainability certificates | EPEAT Bronze |
| European Product Registry for Energy Labelling (EPREL) code | 385512 |
TECHNICAL DETAILS
| Compliance certificates | CE, REACH, RoHS |
WEIGHT & DIMENSIONS
| Width (with stand) | 355 mm |
| Height (with stand) | 223 mm |
| Depth (with stand) | 16 mm |
| Weight (with stand) | 1 kg |
