ViewSonic TD1630-3 16 Inch, 15.6 Inch Viewable Size TN LED Touchscreen Monitor, 1366×768, 60Hz, 12ms, VGA, HDMI, VESA,Tilt
| Screen Size (in) | 16 |
| Max Resolution | 1366x768 |
| Refresh Rate | 60Hz |
| Response Time | 4ms |
| Display Port | No |
| Height Adjustable | Yes |
| Curved Screen | No |
£ 0.00
Guaranteed Safe Checkout

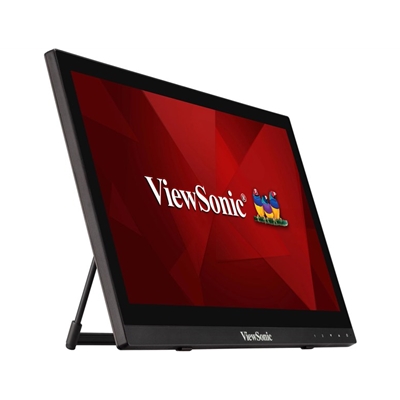

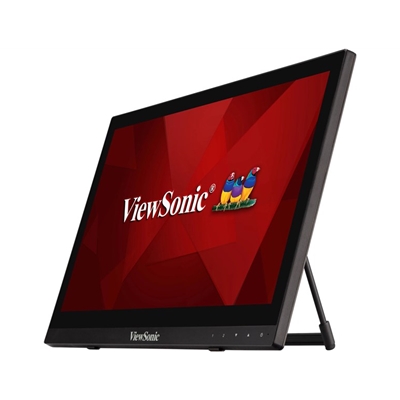

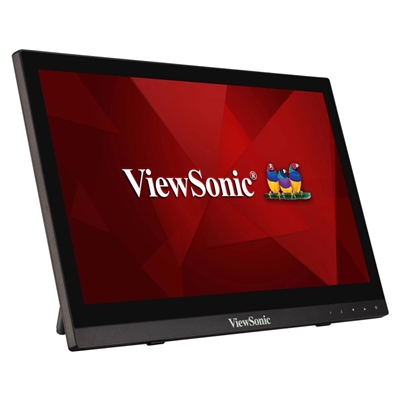

ViewSonic TD1630-3 16 Inch 10-point Touch Screen Monitor
Overview
The ViewSonic TD1630-3 is a 16 Inch (15.6 Inch viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10/11 and Linux versions, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.
Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

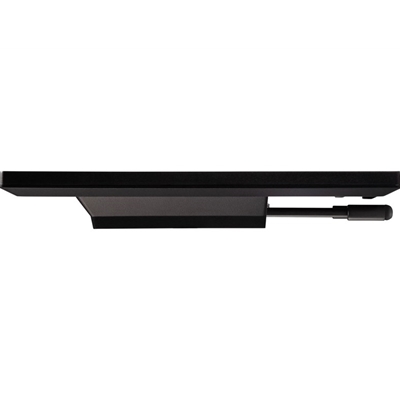

Advanced Ergonomic Stand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.
Versatile Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems including Windows 10/11 and certain Linux versions.
Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X
Durable, Scratch-resistant Screen
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Enhanced Viewing Comfort
Blue Light Filter helps to eliminate eye strain from extended viewing periods.

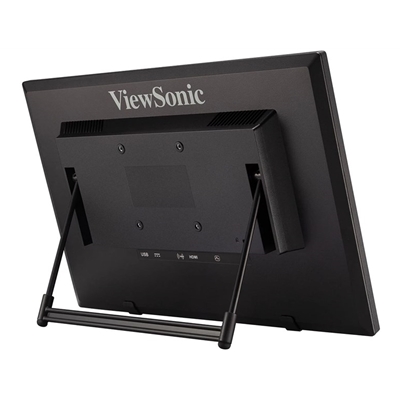

VESA-compatible mount
Conveniently mount the monitor to your liking by utilising its VESA compatible mount design, 75mm x 75mm
Specifications
Display
Screen Aspect Ratio
16:9
Display Size
16″
Viewable screen size
15.6″
Screen Width
344.23 mm
Screen Height
193.54 mm
Screen technology
TN Panel
Colours
262,000 colours
Brightness
190 Lumens
View Angle (Horizontal – Max)
90 °
View Angle (Vertical – Max)
60 °
Contrast Ratio
500:1
Contrast Ratio – Dynamic
10,000,000:1
Resolution (Native)
1366 x 768 Pixels
Resolution Type (Native)
HD
Response time
12 ms
Backlight
Yes
Colour Gamut
45% NTSC
HD Support
Yes
Aspect Ratio
16:9
3D Display
No
Horizontal Frequency
30 ~ 61 kHz
Vertical Frequency
56 ~ 75 Hz
Mount
Wall Mountable
Yes
Wall Mount
VESA 75 x 75 mm
Tilt (Forward/Backward)
Yes
Tilt Range
-15 ~ +50 °
Swivel (Left/Right)
No
Height Adjustable
No
Pivot (Rotation)
No
Camera
Webcam
No
Warranty
2 Years
Sound
Speakers
Yes
Interfaces/Ports
VGA In
1 x D-Sub
USB Ports
1 x USB Type-B for Touch
Audio Line In Ports
1 x 3.5mm Jack
HDMI Ports
1 x HDMI 1.4
System
Plug and Play
Yes
Electrical
Electrical Power Consumption
5.5 W
Electrical Power Consumption Standby
4.3 W
Voltage
100 ~ 240 V
Electrical Frequency
50 ~ 60 Hz
Power Adaptor Type
External
Power Supply
Yes
Compliance
Certifications
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
Physical
Form Factor
Monitor
Case Colour
Black
In The Box
Monitor
Power Adapter
Power Cable
VGA Cable
USB Cable
Audio Cable
Quick Start Guide
Weight & Dimensions
379.24 mm x 37.15 mm x 247.12mm (W x D x H)
1.32 kg
| Weight | 1.3 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.viewsoniceurope.com
Warranty:
2 Year Pickup, Repair and Return www.viewsoniceurope.com/uk/support/warranties/united-kingdom/ **RESELLERS**DOA unit – exchange or refund by issuing a ticket via https://www.viewsonic.com/uk/contact/.
DESIGN
| Certification | CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS |
| Product colour | Black |
DISPLAY
| Pixel pitch | 0.252 x 0.252 mm |
| Contrast ratio (typical) | 500:1 |
| Horizontal scan range | 30 - 61 kHz |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 60° |
| Vertical scan range | 56 - 75 Hz |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 5 - 90% |
| Display brightness | 220 cd/m² |
| Response time | 12 ms |
| Display resolution | 1366 x 768 pixels |
| Display diagonal (metric) | 39.6 cm |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768 |
| Touchscreen | Yes |
| Contrast ratio (dynamic) | 10000000:1 |
| Maximum refresh rate | 60 Hz |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Display technology | LCD |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| HD type | HD |
| Panel type | TN |
| Screen shape | Flat |
| Display number of colours | 262144 colours |
ENERGY MANAGEMENT
| Power consumption (typical) | 5.5 W |
| Power supply type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Energy efficiency class (SDR) | B |
| Energy consumption (SDR) per 1000 hours | 6 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 391332 |
ERGONOMICS
| Wall mountable | Yes |
| Tilt angle range | 15 - 50° |
| Panel mounting interface | 75 x 75 mm |
| Tilt adjustment | Yes |
| VESA mounting | Yes |
LOGISTICS DATA
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.17 m |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528521000 |
MULTIMEDIA
| Built-in microphone | No |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
OTHER FEATURES
| Weight | 1.3 kg |
| Certification | CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS |
| Display viewable area (HxV) | 344.23 x 193.54 mm |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 10 |
| Compliance certificates | CE, REACH, RoHS |
PACKAGING CONTENT
| Cables included | AC, Audio (3.5mm), USB, VGA |
PACKAGING DATA
| Package weight | 2.5 kg |
| Cables included | AC, Audio (3.5mm), USB, VGA |
| Package depth | 86 mm |
| Package height | 389 mm |
| Package width | 453 mm |
PERFORMANCE
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
PORTS & INTERFACES
| Audio input | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI | Yes |
| Built-in USB hub | Yes |
SUSTAINABILITY
| Sustainability certificates | ErP |
| European Product Registry for Energy Labelling (EPREL) code | 391332 |
TECHNICAL DETAILS
| Compliance certificates | CE, REACH, RoHS |
WEIGHT & DIMENSIONS
| Width (with stand) | 379.2 mm |
| Height (with stand) | 247.1 mm |
| Depth (with stand) | 37.1 mm |
| Weight (with stand) | 1.32 kg |
