iiyama ProLite Curved Monitor XCB3497WQSNP-B1 34″ VA Ultra-Wide Screen with KVM Switch, LAN, USB-C Dock, 0.4ms, 120Hz, HDMI, DisplayPort, Speakers, Height Adjustment
| Screen Size (in) | 34 |
| Max Resolution | 3440x1440 |
| Refresh Rate | 120Hz |
| Response Time | 0.4ms |
| Display Port | Yes |
| Height Adjustable | Yes |
| Curved Screen | Yes |
£ 238.39
Guaranteed Safe Checkout

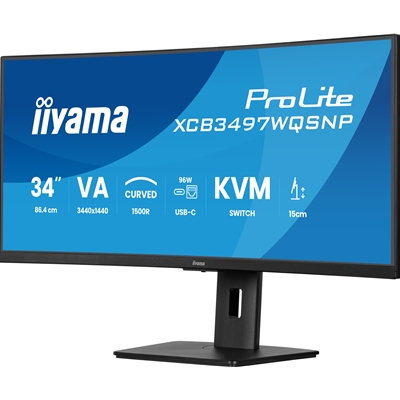

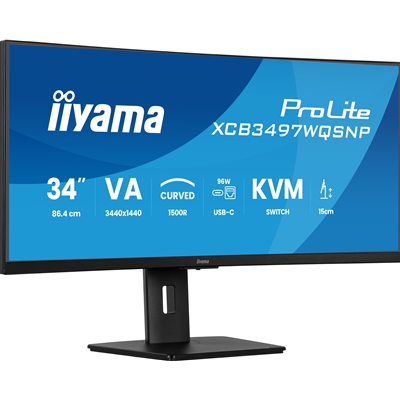

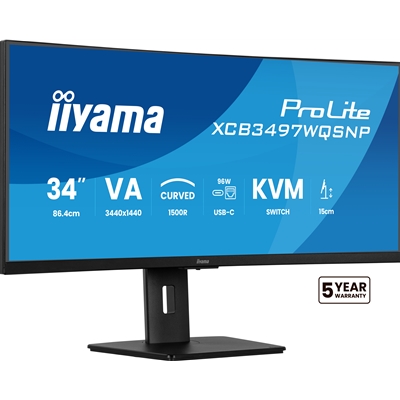

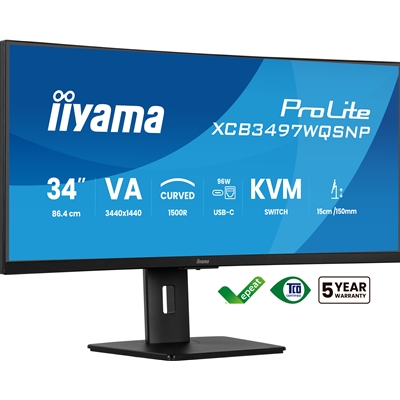

iiyama ProLite XCB3497WQSNP-B1 34” UWQHD curved monitor with USB-C dock, LAN, KVM switch and 15cm height adjustable stand
The XCB3497WQSNP is a 34-inch curved monitor that incorporates a KVM switch and a USB-C dock to simplify your workspace. The KVM switch enhances multitasking by allowing you to control multiple computers from a single monitor, keyboard, and mouse. The USB-C dock reduces cable clutter and simplifies connectivity even further, allowing a single cable to carry video, data, and power to charge your notebook. Additionally, when the monitor is connected to a LAN network, your notebook automatically gains network access. The VA panel technology delivers high contrast and deep black levels and wide viewing angles for consistent image quality regardless of your position for a richer and more vivid viewing experience.
For optimal comfort, the 15cm height-adjustable stand allows you to customize the screen position, while the Flicker-Free panel and Blue Light reduction function help minimize eye strain.
Easy multi-device control with KVM
Easily switch between multiple computers using one monitor, keyboard, and mouse, making multitasking smooth and efficient.
USB-C dock for tidy desk & easy connectivity
Connect everything with just one cable — handle video, data, and power while keeping your desk clean and organized.

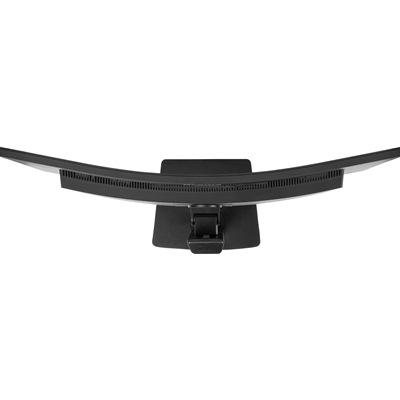

Curved for immersive viewing
Step into an immersive, natural viewing setup that minimizes distortion and reduces eye strain during long work or entertainment sessions.
Multitasking with ultra-wide QHD
Get more space to multitask, compare documents side by side, or fully immerse in your content without switching windows.
Technical Specification
DISPLAY CHARACTERISTICS
Design
curved
Diagonal
34″, 86.7cm
Panel
VA panel, matte finish
Curved
1500R
Native resolution
3440 x 1440 @120Hz (4.9 megapixel UWQHD, DisplayPort & USB-C)
Aspect ratio
21:9
Panel brightness
350 cd/m²
Static contrast
3000:1
Advanced contrast
80M:1
Response time (MPRT)
0.4ms
Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support
16.7mln (sRGB: 99%; NTSC: 93%)
Horizontal Sync
30 – 180kHz
Viewable area W x H
797.2 x 333.7mm, 31.3 x 13.1″
Pixel pitch
0.232mm
Colour
matte, black
INTERFACES / CONNECTORS / CONTROLS
Signal input
HDMI x2 (1x v.2.0 and 1x v. 1.4, 3440×1440 @100Hz, 2560×1440 @120Hz)
DisplayPort x1 (v.1.4, 3440? x ?1440?@ 120Hz)
USB-C x1 (3440? x ?1440?@ 120Hz, PD 95W)
USBHUB
x4 (2x Type A v.3.2 Gen 1 (5Gbps, 4.5W) 2x Type C (5Gbps, 7.5W))
USB-C DOCK
x1 (Power delivery 95W, LAN, USB v. 3.2 (Gen 1, 5Gbit))
HDCP
yes
Headphone connector
yes
RJ45 (LAN)
x1
FEATURES
KVM switch
yes
Blue light reducer
yes
Flicker free
yes
Adaptive Sync support
FreeSync Premium, HDMI: 2560 x 1440 @48-100Hz, DP / USB-C: 3440 x 1440 @48-120Hz
E
Extra
i-Style Colour
OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
Control buttons
Joystick: Power/Menu (Centre), Forward/Signal Select, Backward, Left/i-Style colour/ECO/BlueLight Reducer, Right/Volume
User controls
picture adjust (brightness, contrast, Eco, ACR, OD, AdaptiveSync, motion blur reduction, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp.,), OSD (OSD H. position, OSD V. position, OSD time, OSD background, DDC/CI control, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, Mac address, USB charge, USB C speed), KVM (HDMI1, HDMI2, DisplayPort, USB C), input select, audio settings (volume, mute audio), recall
Speakers
2 x 5W
Convenience
Kensington-lock prepared, DDC2B

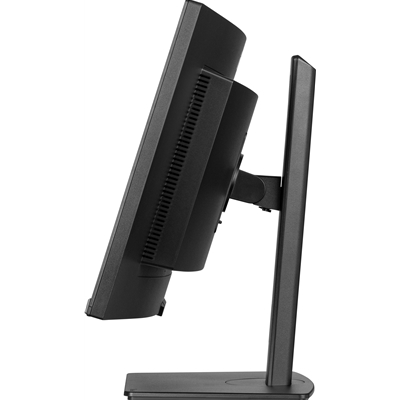

MECHANICAL
Display position adjustments
swivel, tilt

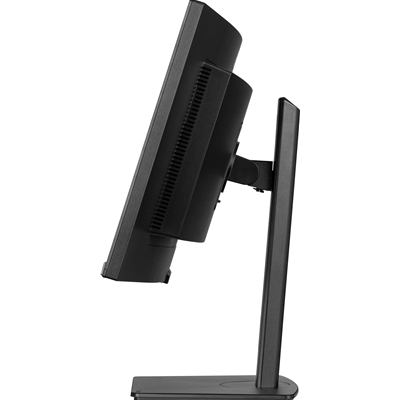

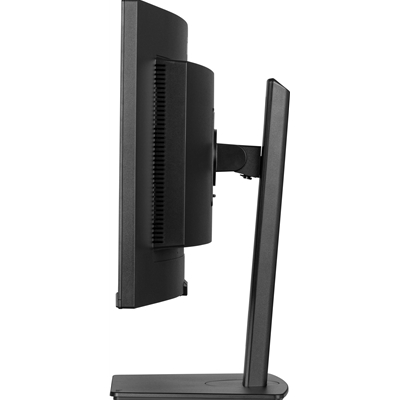

Height adjustment
150mm
Swivel stand
90°; 45° left; 45° right
Tilt angle
23° up; 5° down

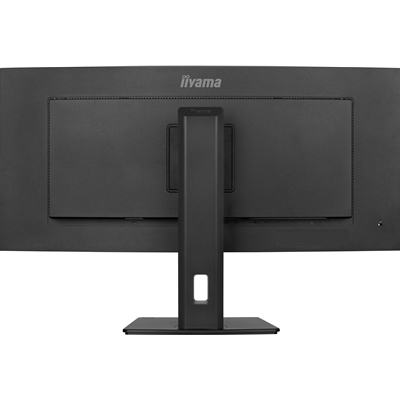

VESA mounting
100 x 100mm
Cable management system
yes

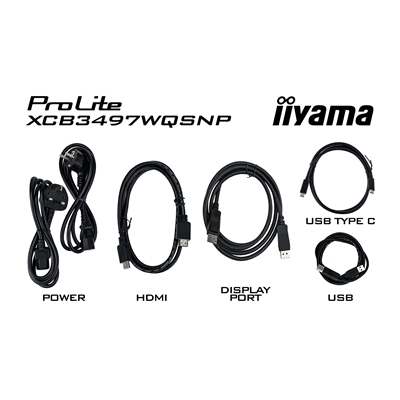

ACCESSORIES INCLUDED
Cables
power, USB, HDMI, DP, USB-C
Other
quick start guide, safety guide
POWER MANAGEMENT
Power supply unit
internal
Power supply
AC 100 – 240V, 50/60Hz
Power usage
55W typical, 0.5W stand by, 0.3W off mode
DIMENSIONS / WEIGHT
Product dimensions
W x H x D 807 x 426 (576) x 245.5mm
Box dimensions W x H x D 928 x 480 x 186mm
Weight (without box) 9.7kg
Weight (with box) 14.1kg
| Weight | 14.3 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.iiyama.co.uk
Warranty:
DESIGN
| Product colour | Black |
DISPLAY
| Pixel pitch | 0.232 x 0.232 mm |
| Contrast ratio (typical) | 3000:1 |
| Horizontal scan range | 30 - 180 kHz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Viewable size, horizontal | 79.7 cm |
| Viewable size, vertical | 33.4 cm |
| Display diagonal | 86.4 cm (34") |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal (metric) | 86.7 cm |
| Touchscreen | No |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 120 Hz |
| Display technology | LED |
| Native aspect ratio | 21:9 |
| HD type | UltraWide Quad HD |
| Panel type | VA |
| Display surface | Matt |
| Screen shape | Curved |
| Display number of colours | 16.7 million colours |
| sRGB coverage (typical) | 99% |
| NTSC coverage (typical) | 93% |
| Display brightness (typical) | 350 cd/m² |
| Screen curvature rating | 1500R |
| Colour gamut standard | NTSC, sRGB |
| Response time (MPRT) | 0.4 ms |
ENERGY MANAGEMENT
| Power consumption (typical) | 32 W |
| Power supply type | Internal |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 32 kWh |
ERGONOMICS
| Cable lock slot | Yes |
| Wall mountable | Yes |
| Height adjustment | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | 5 - 23° |
| On Screen Display (OSD) | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, French, Italian, Japanese, Polish, Russian |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Adjustable height (max) | 15 cm |
MULTIMEDIA
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
NETWORK
| Ethernet LAN | Yes |
OTHER FEATURES
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Touchscreen | No |
| USB Power Delivery | Yes |
PACKAGING DATA
| Package weight | 14.1 kg |
| Package depth | 928 mm |
| Package height | 480 mm |
| Package width | 928 mm |
| Package type | Box |
PERFORMANCE
| AMD FreeSync | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync type | FreeSync Premium |
PORTS & INTERFACES
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| HDMI | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| Built-in KVM switch | Yes |
| Headphone out | Yes |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 95 W |
| Number of USB Type-C upstream ports quantity | 1 |
| DisplayPort out version | 1.4 |
WEIGHT & DIMENSIONS
| Width (with stand) | 807 mm |
| Height (with stand) | 576 mm |
| Depth (with stand) | 245.5 mm |
| Height (without stand) | 426 mm |
| Width (without stand) | 807 mm |
| Depth (without stand) | 245.5 mm |
| Weight (with stand) | 9.7 kg |
