iiyama PROLITE T2252MSC-B2 21.5 Inch 10 Point Touchscreen IPS Monitor, Full HD, 5ms, USB Hub, HDMI, DisplayPort, Speakers, Black, Internal PSU, VESA
| Screen Size (in) | 22 |
| Max Resolution | 1920x1080 |
| Response Time | 5ms |
| Display Port | Yes |
| Height Adjustable | No |
| Curved Screen | No |
£ 169.89
Guaranteed Safe Checkout

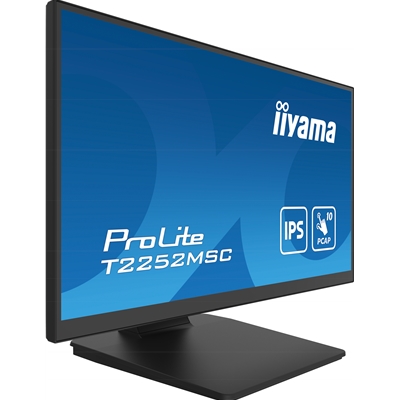

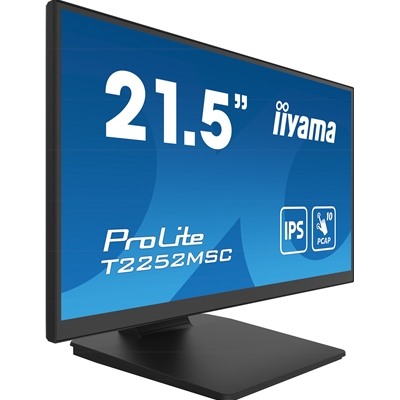

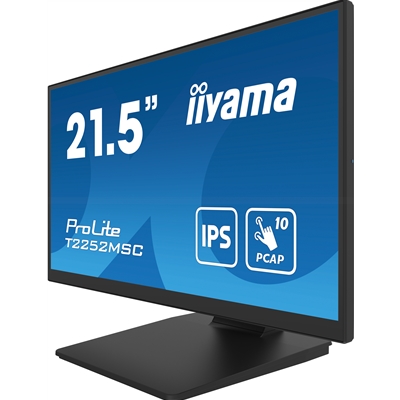

ProLite T2252MSC-B2
21.5″ PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating
With its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2252MSC-B2 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2252MSC-B2 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
Touch technology – Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Speakers and headphones
This LED monitor is equipped with two stereo speakers.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
Specifications
Display
Diagonal
21.5″, 54.5cm
Panel
IPS panel technology
Native resolution
1920 x 1080 @100Hz (2.1 megapixel Full HD)
Aspect ratio
16:9
Panel brightness
250 cd/m²
Brightness
225 cd/m² with touch
Light transmittance
90%
Static contrast
1000:1
Response time (MPRT)
5ms
Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support
16.7mln
Horizontal Sync
30 – 83kHz
Viewable area W x H
478.6 x 260mm
Pixel pitch
0.249mm
Colour
matte, black
Touch
Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes
INTERFACES, CONNECTORS, CONTROLS
Signal input
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)
HDCP
yes
Audio output
Mini jack x1
Speakers 2 x 1W
USB HUB x2 (USB 3.2 Gen 1 (5Gbps, 5V, 900mA))
FEATURES
Extra
Anti-fingerprint coating, touch support with gloved hand (thickness +2mm)
Glass hardness
7H
OSD key lock
yes
General
OSD languages
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
Control buttons
Power, Menu, Up/Right/Volume, Down/Left/Black Tuner/MBR/AMD FreeSync/Night Mode Button, Input Select/Exit
User controls
picture adjust (contrast, brightness, OD, AC, Eco, black tuner, colour saturation, MBR, AMD FreeSync), input source, audio settings (volume, mute audio), user modes, colour settings (6-Axis, gamma, blue light reducer, colour temperature, user preset), image adjust (i-Style Colour, sharp and soft, RGB range, video mode adjust), language, setup menu (OSD h. position, OSD v. position, OSD time, opening logo, LED), display information, recall
Speakers
2 x 2W
Convenience
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX
MECHANICAL

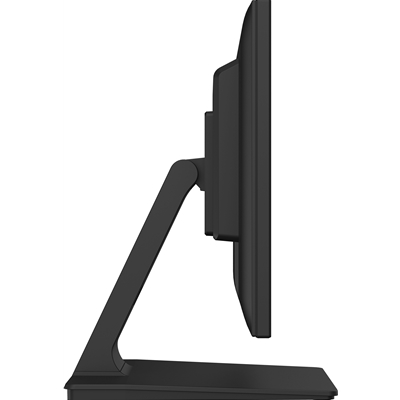

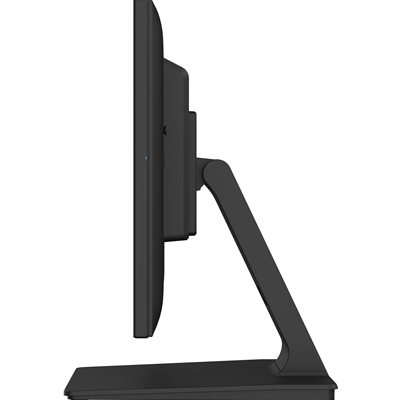

Tilt angle
22° up; 5° down

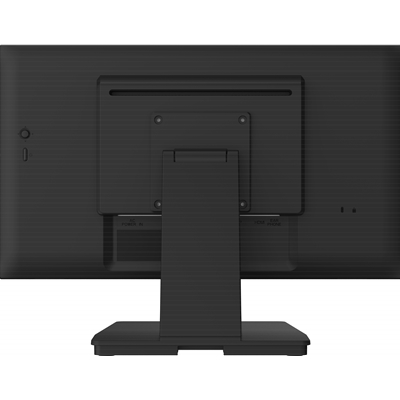

VESA mounting
100 x 100mm
ACCESSORIES INCLUDED
Cables
power, USB, HDMI
Other
quick start guide, safety guide
POWER MANAGEMENT
Power supply unit internal
Power supply
AC 50 – 60V, 100/240Hz
Power usage
11W typical, 1.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)
E
REACH SVHC
above 0.1%: Lead
WEIGHT & DIMENSIONS
Product dimensions W x H x D 493.5 x 361.5 x 239.5mm
Weight (without box) 4.5kg
EAN code 4948570121809
| Weight | 5.7 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.iiyama.co.uk
Warranty:
DESIGN
| Product colour | Black |
| Front bezel colour | Black |
DISPLAY
| Pixel pitch | 0.249 x 0.249 mm |
| Contrast ratio (typical) | 1000:1 |
| Horizontal scan range | 30 - 83 kHz |
| Viewing angle, horizontal | 89° |
| Viewing angle, vertical | 89° |
| Viewable size, horizontal | 47.9 cm |
| Viewable size, vertical | 26 cm |
| Display diagonal | 54.6 cm (21.5") |
| Response time | 5 ms |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal (metric) | 54.5 cm |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display technology | LCD |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Panel type | IPS |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Surface hardness | 7H |
| Display brightness (peak) | 250 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
ENERGY MANAGEMENT
| Power consumption (typical) | 11 W |
| Power supply type | Internal |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1556636 |
ERGONOMICS
| Cable lock slot | Yes |
| Height adjustment | No |
| Tilt angle range | -5 - 90° |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
MULTIMEDIA
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
OTHER FEATURES
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 250 cd/m² |
PACKAGING CONTENT
| Quick start guide | Yes |
PACKAGING DATA
| Package weight | 6 kg |
| Package depth | 560 mm |
| Package height | 350 mm |
| Package width | 560 mm |
| Quick start guide | Yes |
PERFORMANCE
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Palm rejection | Yes |
| Low Blue Light technology | Yes |
PORTS & INTERFACES
| HDMI ports quantity | 1 |
| HDMI | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 2 |
| USB Touch port | Yes |
SUSTAINABILITY
| European Product Registry for Energy Labelling (EPREL) code | 1556636 |
WEIGHT & DIMENSIONS
| Width (with stand) | 493.5 mm |
| Height (with stand) | 361.5 mm |
| Depth (with stand) | 239.5 mm |
| Weight (with stand) | 4.5 kg |
