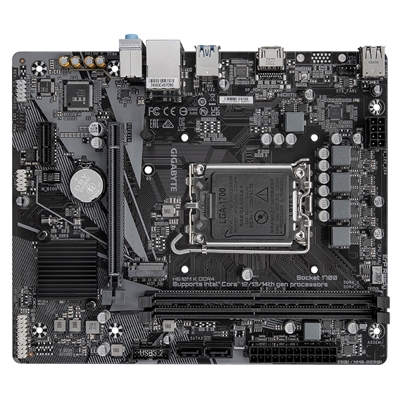

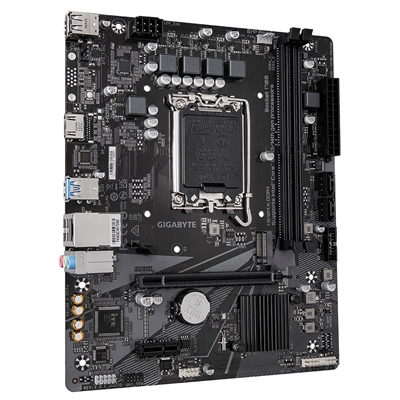

Gigabyte H610M K DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x HDMI Port
| Socket | 1700 |
| CPU Compatibility | Intel 12th/13th/14th Gen |
| Chipset | Intel H610 |
| Form Factor | Micro ATX |
| Memory Slots | DDR4 - 2 Slots |
| M.2 Compatibility | PCIe 3 |
| USB C Header | No |
£ 41.10
Guaranteed Safe Checkout
PCIe 4.0 Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6
Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
Specifications
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel H610 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

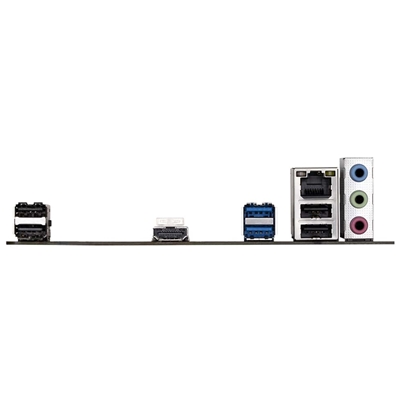

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
| Weight | 0.65 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
BACK PANEL I/O PORTS
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
BATTERY
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
BIOS
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
EXPANSION SLOTS
| PCI slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
FEATURES
| Motherboard chipset | Intel H610 Express |
| Motherboard form factor | micro ATX |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Cooling type | Active |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC897 |
GRAPHICS
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Graphics card family | Intel |
| On-board graphics card | Yes |
INTERNAL I/O
| USB 2.0 connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| Power fan connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Total number of SATA connectors | 2 |
| Front panel connector | Yes |
| 12V power connector | Yes |
LOGISTICS DATA
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Maximum internal memory | 64 GB |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Maximum RDIMM memory | 64 GB |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 3200 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
NETWORKING
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
PACKAGING CONTENT
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Cables included | SATA |
| Batteries included | Yes |
PACKAGING DATA
| Package weight | 717 g |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package width | 265 mm |
PROCESSOR
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
STORAGE CONTROLLERS
| Number of HDDs supported | 2 |
| Number of storage drives supported | 3 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
TECHNICAL DETAILS
| Warranty period | 3 year(s) |
WEIGHT & DIMENSIONS
| Height | 35 mm |
| Width | 226 mm |
| Depth | 185 mm |
