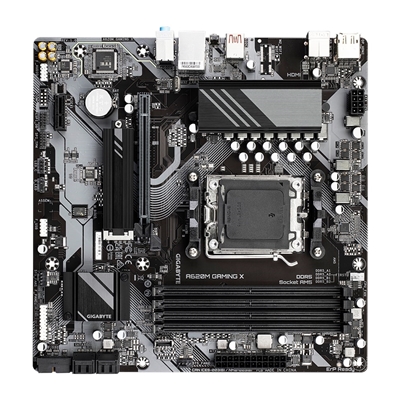

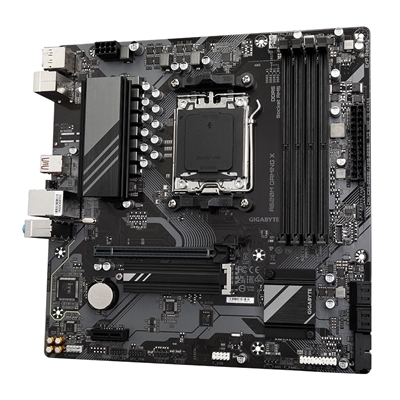

Gigabyte A620M GAMING X AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port
| Socket | AM5 |
| CPU Compatibility | AMD Ryzen 9000/8000/7000 |
| Chipset | AMD A620 |
| Form Factor | Micro ATX |
| Memory Slots | DDR5 - 4 Slots |
| M.2 Compatibility | PCIe 4 / PCIe 3 |
| USB C Header | Yes |
£ 80.70
Guaranteed Safe Checkout
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
EXPO and XMP Dual Support
GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
AMD EXPO™ and Intel® XMP 3.0 User Profile
Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.
– One empty SPD profile can be defined by users and carry to next computer
– Quick memory performance simulation based on user input clock and timing parameters
– Profile save and load function to share your memory parameters online
OUTSTANDING THERMAL DESIGN
GIGABYTE MOTHERBOARDS’ UN-THROTTLED PERFORMANCE IS GUARANTEED BY INNOVATIVE AND OPTIMIZED THERMAL DESIGN TO ENSURE THE BEST CPU, CHIPSET, SSD STABILITY AND LOW TEMPERATURES UNDER FULL LOAD APPLICATION AND GAMING PERFORMANCE.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
– High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
– Precision Control
Multiple temperature/fan speed control points for precise fan curve
– Dual Curve Mode
Slope/Stair dual mode for different user scenario
– Fan Stop
Fan can stop completely below users’ specified temperature point
Smart Fan 6 BIOS UI
1. Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
2. Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
3. Manual Input
For advanced users, we provide fan speed manual input for more precise control.
4. EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
5. Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Connecting the Future – USB Type-C®
The USB Type-C with front and rear USB 3.2 Gen 1 ports provide with speeds up to 5Gbps. With doubled bandwidth compared to the previous generation as well as backward compatibility with USB 2.0, the improved USB protocol is available now over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
– Unified software platform for all Gigabyte supported products
– Intuitive user interface for an eased experience
– Modularized control components only for installed hardware
– Auto update function to keep system up to date and support future products
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE
Specifications
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset
AMD A620
Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port on the back panel
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper

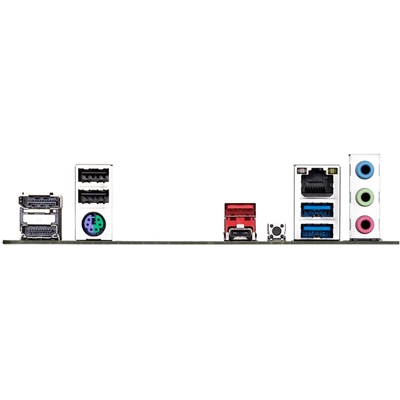

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
| Weight | 0.95 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
BACK PANEL I/O PORTS
| PS/2 ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
BATTERY
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
BIOS
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
EXPANSION SLOTS
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| Number of M.2 (M) slots | 1 |
FEATURES
| Motherboard chipset | AMD A620 |
| Motherboard form factor | micro ATX |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
GRAPHICS
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
INTERNAL I/O
| USB 2.0 connectors | 1 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
LOGISTICS DATA
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Maximum internal memory | 192 GB |
| Non-ECC | Yes |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6800,7000,7200,7600,7800,8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8000 MHz |
| ECC ?ompatibility | Non-ECC |
NETWORKING
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
PACKAGING CONTENT
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Batteries included | Yes |
PACKAGING DATA
| Package weight | 892 g |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package width | 270 mm |
PROCESSOR
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 192 GB |
STORAGE CONTROLLERS
| RAID levels | 0, 1, 10 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
TECHNICAL DETAILS
| Warranty period | 3 year(s) |
WEIGHT & DIMENSIONS
| Height | 35 mm |
| Width | 244 mm |
| Depth | 244 mm |
