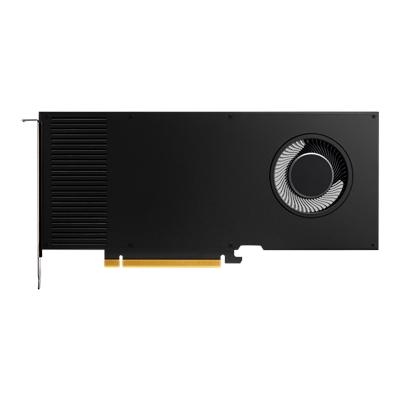

PNY NVIDIA Professional RTX A4000 Retail 16GB GDDR6 Graphics Card, 6144 CUDA Cores, 192 Tensor Cores, Single Fan, 4x DisplayPorts
| Chipset Manufacturer | Nvidia |
| Chipset Series | Professional |
| Chipset | RTX A4000 |
| Form Factor | 1x ATX |
| Memory | 16GB |
| Fans | 1 |
| RGB | No |
£ 0.00
Guaranteed Safe Checkout
NVIDIA RTX A4000
Sleek Design. Powerful Performance.
The NVIDIA Ampere architecture builds on the power of NVIDIA RTX to deliver the next generation of accelerated visual computing. As millions of professionals continue to work from anywhere, they rely on a wide range of devices to deliver the power and performance they need to work effectively.
The NVIDIA RTX A4000 is the most powerful single-slot GPU for professionals, delivering real-time ray tracing, AI-accelerated compute, and high-performance graphics performance to your desktop. Built on the NVIDIA Ampere architecture, the NVIDIA RTX A4000 combines 48 second-generation RT Cores, 192 third-generation Tensor Cores, and 6144 CUDA cores with 16 GB of graphics memory. So you can engineer next-generation products, design cityscapes of the future, and create immersive entertainment experiences of tomorrow, today, from your desktop workstation. And with a power-efficient, single-slot PCIe form factor that fits into a wide range of workstation chassis, you can do exceptional work without limits.
Key Features
CUDA Cores – 6144
Tensor Cores – 192
RT Cores – 48
Single Precision Performance – 19.2 TFLOPS
RT Core Performance – 37.4 TFLOPS
Tensor Performance – 153.4 TFLOPS
GPU Memory – 16 GB GDDR6 with ECC
Memory Interface – 256-bit
Memory Bandwidth – 448 GB/sec
System Interface – PCI Express 4.0 x16
Display Connectors – 4x DisplayPort 1.4a
Maximum Power Consumption – 140 W
Specifications
Architecture
NVIDIA Ampere Architecture
Process Size
8nm
Transistors
17.4 Billion
Die Size
392.5 mm2
CUDA Cores
6144
Tensor Cores
192
RT Cores
48
Single Precision Performance
19.2 TFLOPS
RT Core Performance
37.4 TFLOPS
Tensor Performance
153.4 TFLOPS
GPU Memory
16 GB GDDR6 with ECC
Memory Interface
256-bit
Memory Bandwidth
448 GB/sec
Display Connectors
4x DisplayPort 1.4a
NVENC | NVDEC
1x | 1x (+ AV1 decode)
System Interface
PCI Express 4.0 x16
Form Factor
4.4? H x 9.5? L Single Slot
Thermal Solution
Active Fansink
Maximum Power Consumption
140 W
NVIDIA Quadro and RTX Power Guidelines
Power Connector
1x 6-pin PCIe
Max Digital Resolution
7680 x 4320 x36 bpp at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support
NVIDIA 3D Vision and 3D Vision Pro
Support via 3-pin mini DIN
Frame Lock
Optional NVIDIA Quadro Sync II
| Weight | 0.0 lbs |
|---|---|
| Manufacturer | |
| Manufacturer Code |
Manufacturer’s Website:
www.pny-europe.com
Warranty:
3 Year Warranty, 1 Year RTB, 2 Years Manufacturers, please see www.pny.eu for more details.
DESIGN
| Number of slots | 1 |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
ENERGY MANAGEMENT
| Supplementary power connectors | 1x 6-pin |
| Power consumption (max) | 140 W |
LOGISTICS DATA
| Harmonized System (HS) code | 84733020 |
MEMORY
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory bandwidth (max) | 448 GB/s |
| Discrete graphics card memory | 16 GB |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Shader model version | 5.1 |
| HDCP | Yes |
PORTS & INTERFACES
| Interface type | PCI Express x16 4.0 |
| HDMI version | 1.4a |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
PROCESSOR
| Graphics processor | RTX A4000 |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 6144 |
| Graphics processor family | NVIDIA |
SYSTEM REQUIREMENTS
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
TECHNICAL DETAILS
| Harmonized System (HS) code | 84733020 |
WEIGHT & DIMENSIONS
| Height | 111.8 mm |
| Depth | 241.3 mm |
| Length | 241.3 mm |
