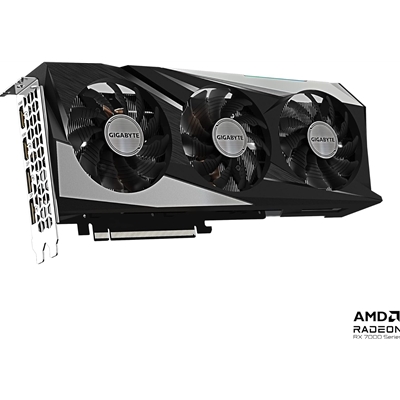

Gigabyte AMD Radeon RX 7600 GAMING OC 8GB GDDR6 Graphics Card, 2048 Streams, 2755 MHz Boost Clock, Triple Fan, RGB, 2x DisplayPorts / 2x HDMI Ports
| Chipset Manufacturer | AMD |
| Chipset Series | RX |
| Chipset | RX 7600 |
| Form Factor | ATX |
| Memory | 8GB |
| Fans | 3 |
| RGB | Yes |
£ 177.95
Guaranteed Safe Checkout
Radeon RX 7600 GAMING OC 8G
KEY FEATURE
Powered by Radeon RX 7600
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE cooling system
RGB Fusion

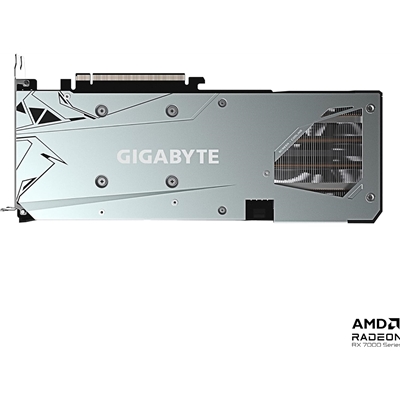

Protection metal back plate
CORE CLOCK
Boost Clock : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock : up to 2355 MHz (Reference card: 2250 MHz)

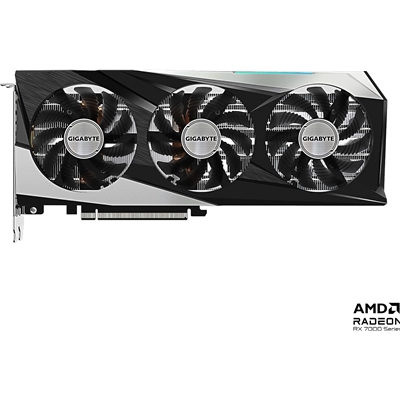

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
GRAPEHENE NANO LUBRUICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

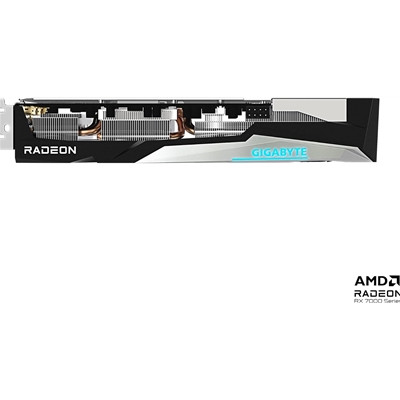

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications
Graphics Processing
Radeon RX 7600
Core Clock
Boost Clock : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock : up to 2355 MHz (Reference card: 2250 MHz)
Stream Processors
2048
Memory Clock
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680 x 4320
Multi-view
4
Card Size
L=282 W=115 H=50 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
550W
Power Connectors
8 pin*1

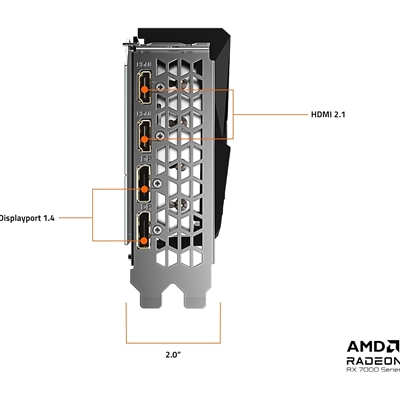

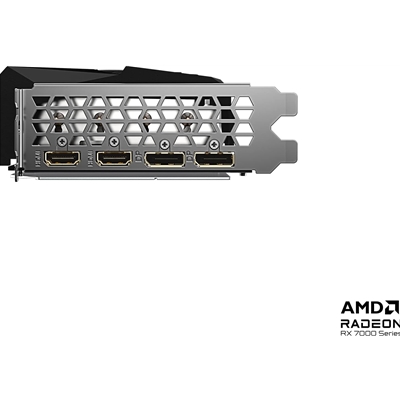

Output
DisplayPort 1.4a x 2
HDMI 2.1a x 2
Accessories
Quick guide
| Weight | 1.75 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
DESIGN
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| Illumination | Yes |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Illumination colour | Multi |
| Bracket height | Full-Height (FH) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
ENERGY MANAGEMENT
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
MEMORY
| Graphics card memory type | GDDR6 |
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Discrete graphics card memory | 8 GB |
PACKAGING CONTENT
| Manual | Yes |
| Quick installation guide | Yes |
| User guide | Yes |
PACKAGING DATA
| Manual | Yes |
| Package type | Box |
| User guide | Yes |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
PORTS & INTERFACES
| Interface type | PCI Express 4.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1a |
| DisplayPorts quantity | 2 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 1.4a |
| Thunderbolt 3 ports quantity | 0 |
| USB Type-C ports quantity | 1 |
PROCESSOR
| Processor frequency | 2355 MHz |
| Graphics processor | Radeon RX 7600 |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 2048 |
| Maximum displays per videocard | 4 |
| CUDA | No |
| Graphics processor family | AMD |
| Processor boost clock speed | 2755 MHz |
| FireStream | Yes |
| Processor boost clock speed (Gaming mode) | 2355 MHz |
SYSTEM REQUIREMENTS
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
WEIGHT & DIMENSIONS
| Height | 115 mm |
| Width | 115 mm |
| Depth | 50 mm |
| Length | 287 mm |
