Gigabyte NVIDIA GeForce RTX 5090 AORUS MASTER 32G Graphics Card, 32GB GDDR7, 21760 CUDA Cores, 2655 MHz Core Clock, Triple Fan, RGB, 3x DisplayPorts / 1x HDMI Port
| Chipset Manufacturer | Nvidia |
| Chipset Series | RTX |
| Chipset | RTX5090 |
| Form Factor | 3x ATX |
| Memory | 32GB |
| Fans | 3 |
| RGB | Yes |
£ 2,007.72
Guaranteed Safe Checkout
AORUS GeForce RTX 5090 MASTER 32G
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE cooling system
Hawk fan
Composite metal grease for GPU
Server-grade thermal conductive gel
Superconducting heat pipes
LCD edge view
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)
SPECIFICATION
Graphics Processing
GeForce RTX 5090
Core Clock
2655 MHz (Reference card : 2407MHz)
CUDA Cores
21760
Memory Clock
28 Gbps
Memory Size
32 GB
Memory Type
GDDR7
Memory Bus
512 bit
Card Bus
PCI-E 5.0
Digital Max Resolution
7680×4320
Multi-View
4
Card Size
L=360 W=150 H=75 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
1000W
Power Connectors
16 Pin x 1

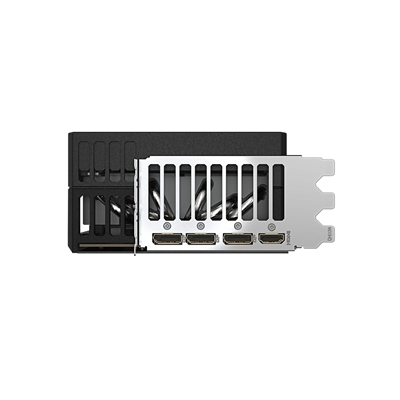

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1
Accessories
Quick guide
Warranty registration
1 x 12V-2×6 to 4 x PCIe 8pin adapter
AORUS identity stickers
AORUS metal sticker
Versatile VGA holder
Versatile VGA holder manual
| Weight | 2.0 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
DESIGN
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3.7 |
| Product colour | Black |
| Illumination | Yes |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Illumination colour | Multi |
| Cooling technology | GIGABYTE WINDFORCE 3X |
ENERGY MANAGEMENT
| Minimum system power supply | 1000 W |
| Supplementary power connectors | 1x 16-pin |
LOGISTICS DATA
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Memory clock speed | 28000 MHz |
| Memory bandwidth (max) | 28 GB/s |
| Discrete graphics card memory | 32 GB |
PACKAGING DATA
| Package weight | 3 kg |
| Package depth | 520 mm |
| Package height | 490 mm |
| Package width | 345 mm |
| Package type | Box |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 4 year(s) |
PORTS & INTERFACES
| Interface type | PCI Express x16 5.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 2.1b |
| Thunderbolt 3 ports quantity | 0 |
PROCESSOR
| Processor frequency | 2655 MHz |
| Graphics processor | GeForce RTX 5090 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 21760 |
| Graphics processor family | NVIDIA |
TECHNICAL DETAILS
| Warranty period | 4 year(s) |
WEIGHT & DIMENSIONS
| Weight | 2 kg |
| Height | 150 mm |
| Depth | 75 mm |
| Length | 360 mm |
