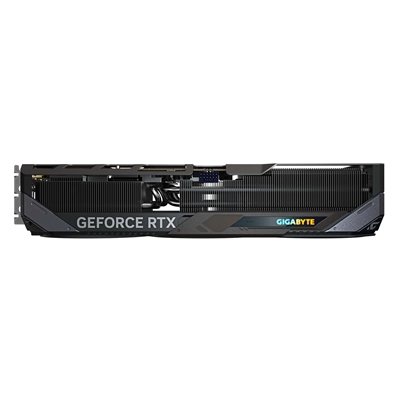

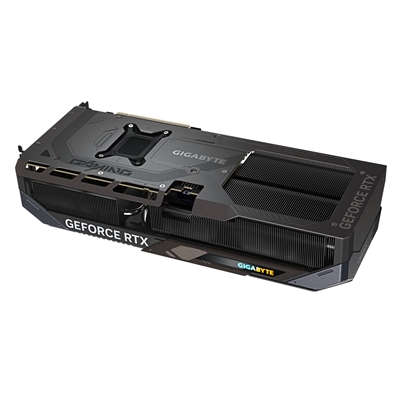

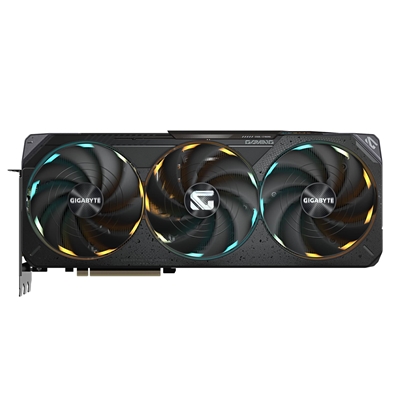

Gigabyte NVIDIA GeForce RTX 5080 GAMING OC 16GB GDDR7 Graphics Card, 10752 CUDA Cores, 2730 MHz Core Clock, Triple Fan, RGB, 3x DisplayPorts / 1x HDMI Port
| Chipset Manufacturer | Nvidia |
| Chipset Series | RTX |
| Chipset | RTX5080 |
| Form Factor | 3x ATX |
| Memory | 16GB |
| Fans | 3 |
| RGB | Yes |
£ 924.77
Guaranteed Safe Checkout
GeForce RTX 5080 GAMING OC 16G
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5080
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)
SPECIFICATION
Graphics Processing
GeForce RTX 5080
Core Clock
2730 MHz (Reference: 2617 MHz)
CUDA Cores
10752
Memory Clock
30 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital Max Resolution
7680 x 4320
Multi-View
4
Card Size
L=340 W=140 H=70 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
850W
Power Connectors
16 pin x 1
Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1
Accessories
VGA manual
Warranty notice
1 x 12V-2×6 to 3 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual
| Weight | 2.0 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
DESIGN
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3.5 |
| Product colour | Black |
| Illumination | Yes |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Illumination colour | Multi |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| SFF ready | No |
ENERGY MANAGEMENT
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
LOGISTICS DATA
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Graphics card memory type | GDDR7 |
| Data transfer rate | 30 Gbit/s |
| Memory bus | 256 bit |
| Memory clock speed | 28000 MHz |
| Discrete graphics card memory | 16 GB |
PACKAGING CONTENT
| Cables included | Power |
PACKAGING DATA
| Package weight | 3 kg |
| Cables included | Power |
| Package depth | 427 mm |
| Package height | 105 mm |
| Package width | 264 mm |
| Package type | Box |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 4 year(s) |
| Overclocked (OC) edition | Yes |
PORTS & INTERFACES
| Interface type | PCI Express 5.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 2.1b |
| Thunderbolt 3 ports quantity | 0 |
PROCESSOR
| Processor frequency | 2730 MHz |
| Graphics processor | GeForce RTX 5080 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
TECHNICAL DETAILS
| Warranty period | 4 year(s) |
WEIGHT & DIMENSIONS
| Weight | 2 kg |
| Height | 142 mm |
| Depth | 70 mm |
| Length | 342 mm |
