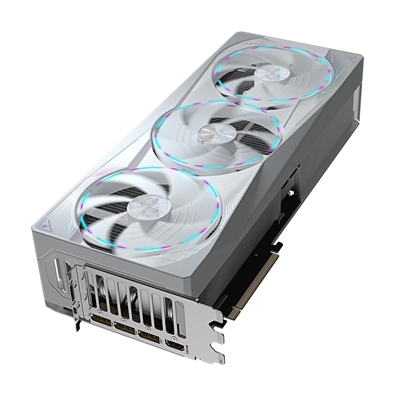

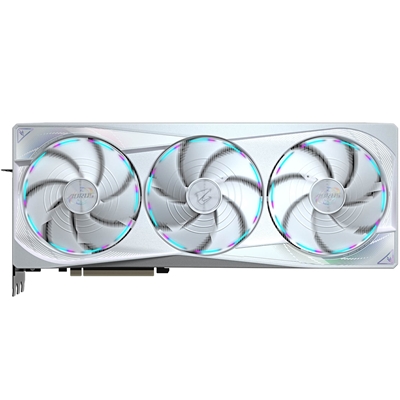

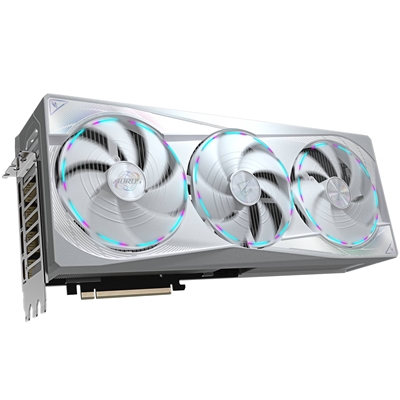

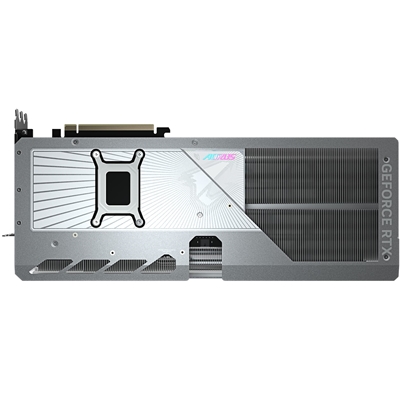

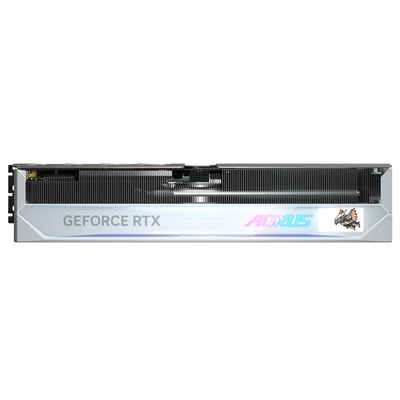

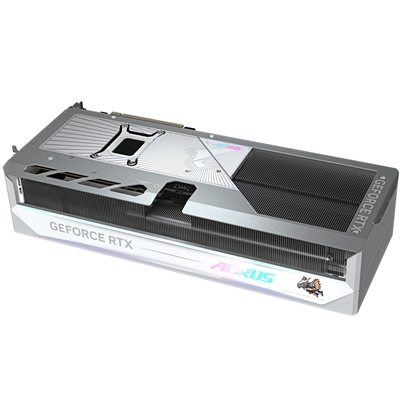

Gigabyte NVIDIA GeForce RTX 5080 AORUS MASTER ICE 16GB GDDR7 Graphics Card, 10752 CUDA Cores, 2805 MHz Core Clock, Triple Fan, White, RGB, 3x DisplayPorts / 1x HDMI Port

Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5080
Form Factor3x ATX
Memory16GB
Fans3
RGBYes

£ 999.81

Guaranteed Safe Checkout

AORUS GeForce RTX 5080 MASTER ICE 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5080
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Composite metal grease for GPU
Server-grade Thermal conductive gel
LCD Edge View
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 Years Warranty (Online registration required)

SPECIFICATION

Graphics Processing
GeForce RTX 5080

Core Clock
2805 MHz (Reference: 2617 MHz)

CUDA Cores
10752

Memory Clock
30 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=360 W=150 H=75 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
850W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
Warranty notice
1 x 12V-2×6 to 3 x PCIe 8pin adapter
AORUS identity stickers
Versatile VGA holder
Versatile VGA holder manual
Screen cooling plus RGB fan

Weight 3.5 lbs
Manufacturer

EAN

Manufacturer Code

Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns

DESIGN

Form factorFull-Height/Full-Length (FH/FL)
Number of slots2
Product colourWhite
Number of fans3 fan(s)
Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 3X

ENERGY MANAGEMENT

Minimum system power supply850 W
Supplementary power connectors1x 16-pin

LOGISTICS DATA

Products per shipping (inner) case1 pc(s)

MEMORY

Graphics card memory typeGDDR7
Memory bus256 bit
Memory clock speed30000 MHz
Memory bandwidth (max)30 GB/s
Discrete graphics card memory16 GB

PACKAGING CONTENT

Cables includedPower

PACKAGING DATA

Package weight3 kg
Cables includedPower
Package depth453 mm
Package height160 mm
Package width245 mm
Package typeBox

PERFORMANCE

TV tuner integratedNo
DirectX version12.0
OpenGL version4.6
Dual Link DVINo
NVIDIA G-SYNCYes
Warranty period4 year(s)
Overclocked (OC) editionYes

PORTS & INTERFACES

Interface typePCI Express x16 5.0
DVI-I ports quantity0
DVI-D ports quantity0
HDMI ports quantity1
HDMI version2.1b
DisplayPorts quantity3
Mini HDMI ports quantity0
Mini DisplayPorts quantity0
DisplayPort version2.1b
Thunderbolt 3 ports quantity0

PROCESSOR

Processor frequency2805 MHz
Graphics processorGeForce RTX 5080
Maximum resolution7680 x 4320 pixels
Maximum displays per videocard4
Graphics processor familyNVIDIA

TECHNICAL DETAILS

Warranty period4 year(s)

WEIGHT & DIMENSIONS

Weight2 kg
Height149 mm
Depth75 mm
Length360 mm
