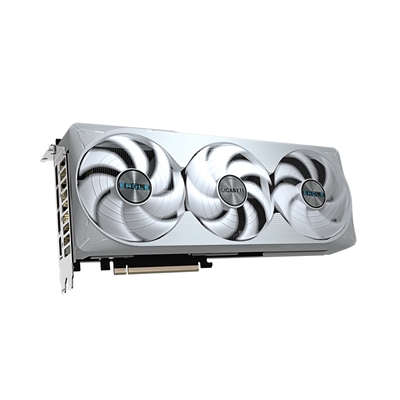

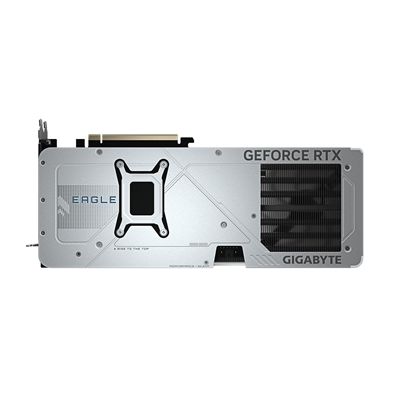

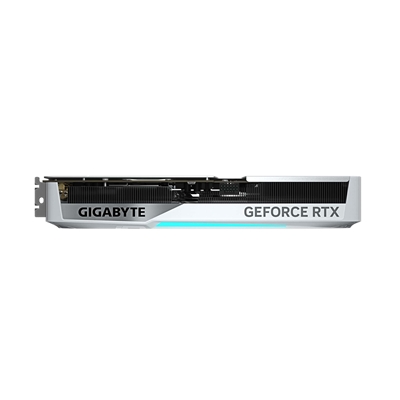

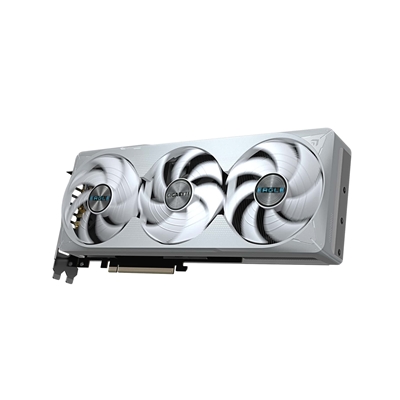

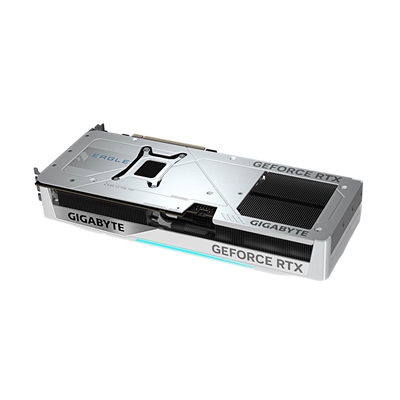

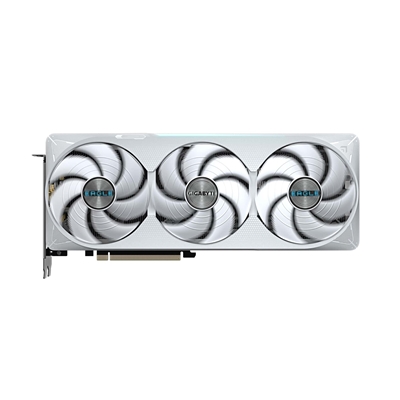

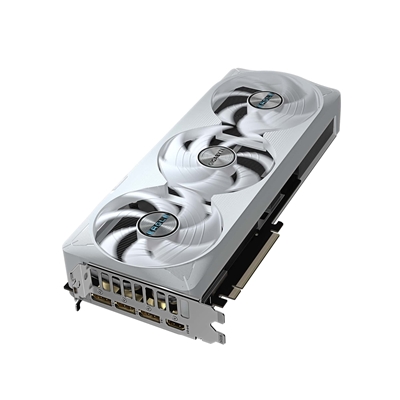

Gigabyte NVIDIA GeForce RTX 5070 Ti EAGLE OC ICE SFF 16GB GDDR7 Graphics Card, 8960 CUDA Cores, 2542 MHz Core Clock, Triple Fan, White, 3x DisplayPorts / 1x HDMI Port
| Chipset Manufacturer | Nvidia |
| Chipset Series | RTX |
| Chipset | RTX5070Ti |
| Form Factor | 2x ATX |
| Memory | 16GB |
| Fans | 3 |
| RGB | No |
£ 638.69
Guaranteed Safe Checkout
GeForce RTX 5070 Ti EAGLE OC ICE SFF 16G
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
SPECIFICATION
Graphics Processing
GeForce RTX 5070 Ti
Core Clock
2542 MHz (Reference: 2452 MHz)
CUDA Cores
8960
Memory Clock
28 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital Max Resolution
7680 x 4320
Multi-View
4
Card Size
L=304 W=126 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
750W
Power Connectors
16 pin x 1

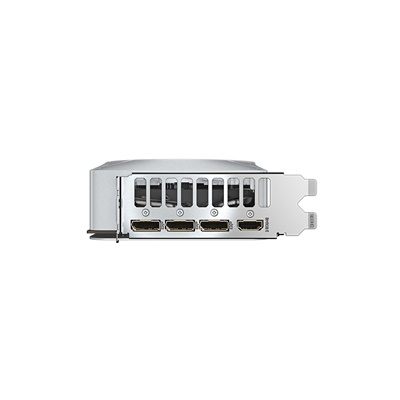

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1
Accessories
VGA manual
1 x 12V-2×6 to 3x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual
| Weight | 1.8 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
DESIGN
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | White |
| Illumination | Yes |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
ENERGY MANAGEMENT
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 300 W |
LOGISTICS DATA
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 30000 MHz |
| Memory bandwidth (max) | 28 GB/s |
| Discrete graphics card memory | 16 GB |
PACKAGING CONTENT
| Cables included | Power |
PACKAGING DATA
| Package weight | 3 kg |
| Cables included | Power |
| Package depth | 398 mm |
| Package height | 85 mm |
| Package width | 230 mm |
| Package type | Box |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
| Overclocked (OC) edition | Yes |
PORTS & INTERFACES
| Interface type | PCI Express x16 5.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 2.1a |
| Thunderbolt 3 ports quantity | 0 |
PROCESSOR
| Processor frequency | 2542 MHz |
| Graphics processor | GeForce RTX 5070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 8960 |
| Graphics processor family | NVIDIA |
TECHNICAL DETAILS
| Warranty period | 3 year(s) |
WEIGHT & DIMENSIONS
| Weight | 2 kg |
| Height | 126 mm |
| Depth | 50 mm |
| Length | 304 mm |
