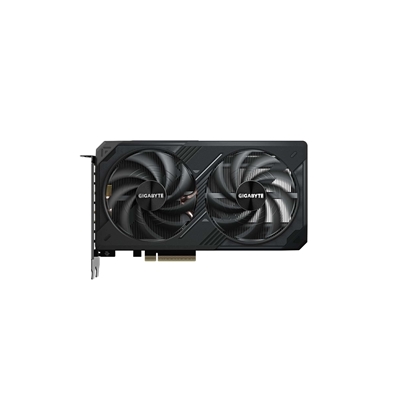

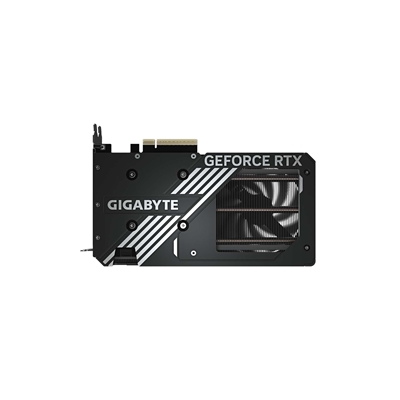

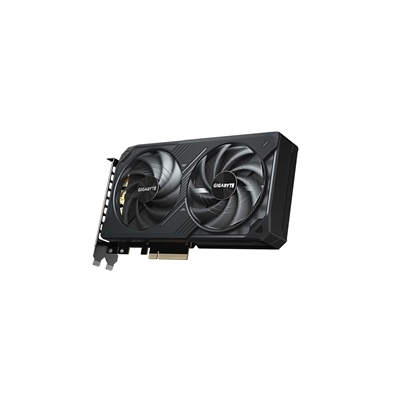

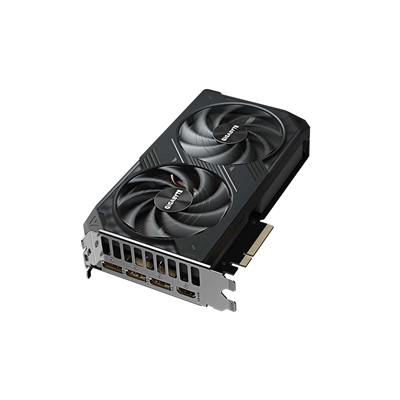

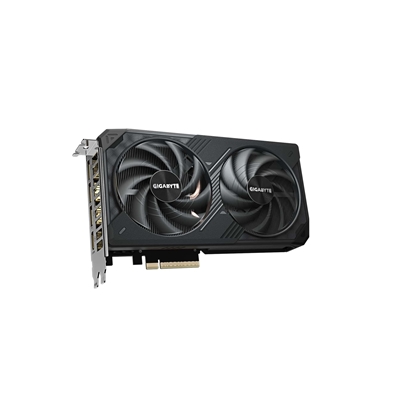

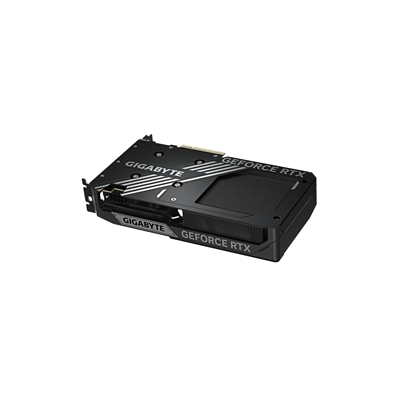

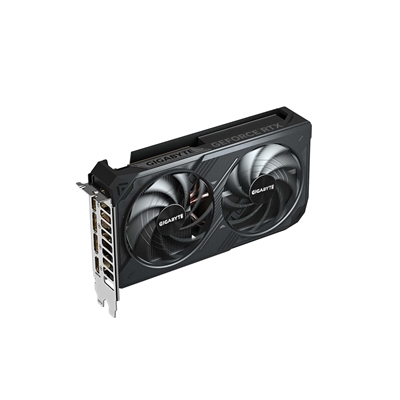

GeForce RTX 5060 Ti WINDFORCE 16GB GDDR7 Graphics Card, 4608 CUDA Cores, 2572 MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Port

Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060Ti
Form Factor2x ATX
Memory16GB
Fans2
RGBNo

£ 325.59

Guaranteed Safe Checkout

GeForce RTX 5060 Ti WINDFORCE 16G

Unlock unparalleled gaming prowess with GIGABYTE’s NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.

Key Features

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

Specifications

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2572 MHz

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
16 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=208 W=120 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

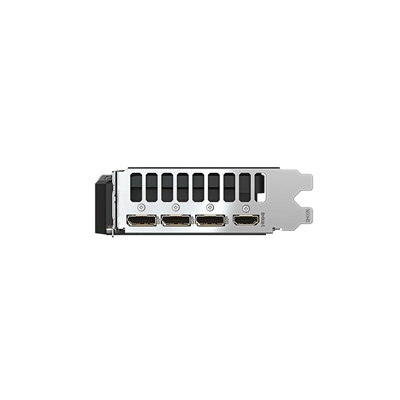

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

Weight 0.75 lbs
Manufacturer

EAN

Manufacturer Code

Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns

DESIGN

Form factorFull-Height/Half-Length (FH/HL)
Number of slots2
Product colourBlack
Number of fans2 fan(s)
Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 2X

ENERGY MANAGEMENT

Minimum system power supply650 W
Supplementary power connectors1x 8-pin

LOGISTICS DATA

Products per shipping (inner) case1 pc(s)

MEMORY

Graphics card memory typeGDDR7
Data transfer rate28 Gbit/s
Memory bus128 bit
Memory clock speed28000 MHz
Discrete graphics card memory16 GB

PACKAGING DATA

Package weight850 g
Package depth295 mm
Package height50 mm
Package width210.5 mm
Package typeBox

PERFORMANCE

TV tuner integratedNo
DirectX version12.0
OpenGL version4.6
Dual Link DVINo
NVIDIA G-SYNCYes
Warranty period3 year(s)

PORTS & INTERFACES

Interface typePCI Express x16 5.0
DVI-I ports quantity0
DVI-D ports quantity0
HDMI ports quantity1
HDMI version2.1b
DisplayPorts quantity3
Mini HDMI ports quantity0
Mini DisplayPorts quantity0
DisplayPort version2.1b
Thunderbolt 3 ports quantity0

PROCESSOR

Processor frequency2572 MHz
Graphics processorGeForce RTX 5060 Ti
Maximum resolution7680 x 4320 pixels
Parallel processing technology supportNot supported
Maximum displays per videocard4
CUDAYes
CUDA cores4608
Graphics processor familyNVIDIA

TECHNICAL DETAILS

Warranty period3 year(s)

WEIGHT & DIMENSIONS

Weight580 g
Height120 mm
Depth40 mm
Length208 mm
