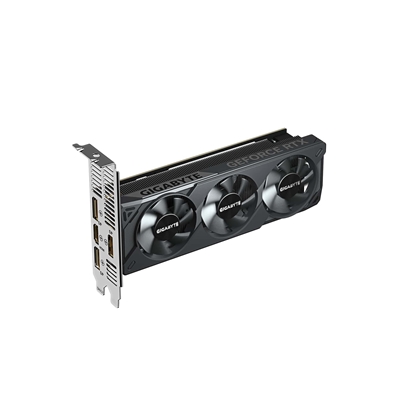

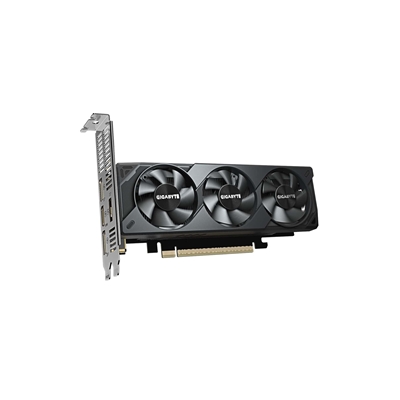

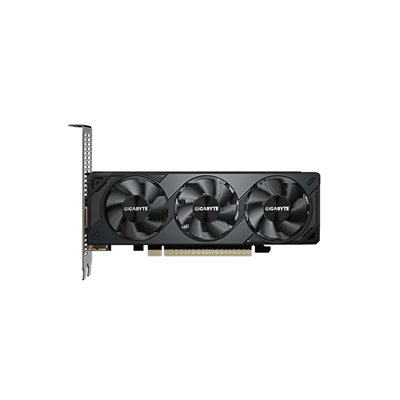

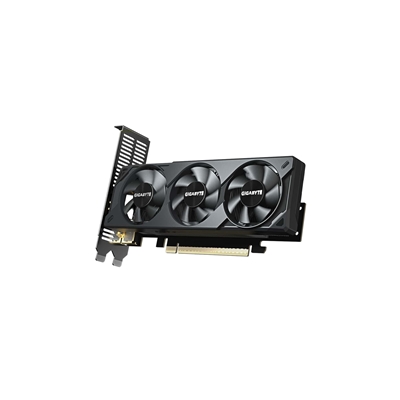

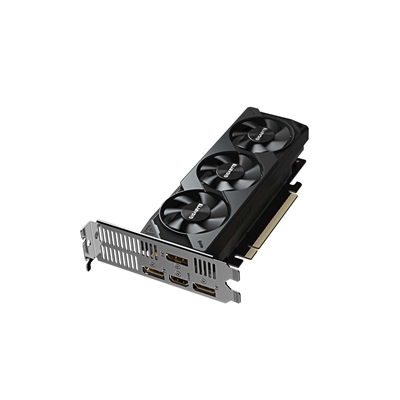

Gigabyte NVIDIA GeForce RTX 5060 OC Low Profile OC 8GB GDDR7 Graphics Card, 3840 CUDA Cores, 2512 MHz Core Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Port
| Chipset Manufacturer | Nvidia |
| Chipset Series | RTX |
| Chipset | RTX5060 |
| Form Factor | 3x ATX |
| Memory | 8GB |
| Fans | 3 |
| RGB | No |
£ 220.13
Guaranteed Safe Checkout
GeForce RTX 5060 OC Low Profile 8G
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128 bit memory interface
Low Profile Design with 182mm card length
Server-grade Thermal conductive gel
Graphene Nano Lubricant
Supports up to 4 displays
CORE CLOCK
2512 MHz (Reference card : 2497MHz)
Graphics Processing
GeForce RTX 5060
Core Clock
2512 MHz (Reference card : 2497MHz)
CUDA Cores
3840
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=182 W=69 H=36
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
450W
Power Connectors
8 Pin*1

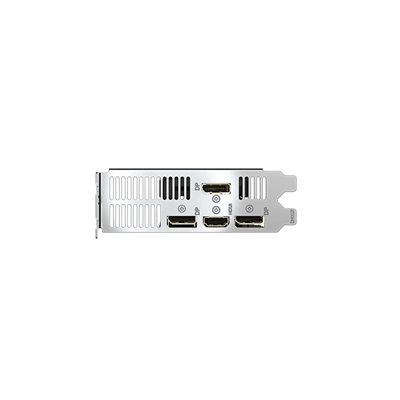

Output
DisplayPort 2.1b *2
DisplayPort 1.4a *1
HDMI 2.1b *1
Accessories
1. Quick guide
2. Low Profile Bracket
| Weight | 0.55 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
DESIGN
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
ENERGY MANAGEMENT
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
LOGISTICS DATA
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Graphics card memory type | GDDR7 |
| Data transfer rate | 28 Gbit/s |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Discrete graphics card memory | 8 GB |
PACKAGING DATA
| Package weight | 620 g |
| Package depth | 295 mm |
| Package height | 50 mm |
| Package width | 210.5 mm |
| Package type | Box |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
| Overclocked (OC) edition | Yes |
PORTS & INTERFACES
| Interface type | PCI Express 5.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 2.1b |
| Thunderbolt 3 ports quantity | 0 |
PROCESSOR
| Processor frequency | 2512 MHz |
| Graphics processor | GeForce RTX 5060 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor family | NVIDIA |
TECHNICAL DETAILS
| Warranty period | 3 year(s) |
WEIGHT & DIMENSIONS
| Weight | 330 g |
| Height | 69 mm |
| Depth | 36 mm |
| Length | 182 mm |
