Gigabyte NVIDIA GeForce RTX 5060 EAGLE OC ICE 8GB GDDR7 Graphics Card, 3840 CUDA Cores, 2550 MHz Core Clock, Dual Fan, White, 3x DisplayPorts / 1x HDMI Port

Chipset ManufacturerNvidia
Chipset SeriesRTX
ChipsetRTX5060
Form Factor2x ATX
Memory8GB
Fans2
RGBNo

£ 228.59

Guaranteed Safe Checkout

GeForce RTX 5060 EAGLE OC ICE 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2550 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2550 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=208 W=120 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

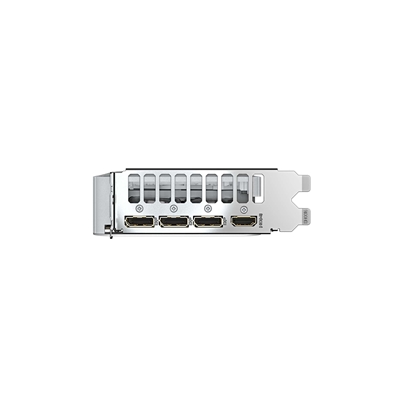

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

Weight 0.54 lbs
Manufacturer

EAN

Manufacturer Code

Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns

DESIGN

Form factorFull-Height/Half-Length (FH/HL)
Number of slots2
Product colourWhite
Number of fans2 fan(s)
Cooling typeActive
Cooling technologyGIGABYTE WINDFORCE 2X

ENERGY MANAGEMENT

Minimum system power supply450 W
Supplementary power connectors1x 8-pin
Thermal Design Power (TDP)109 W

LOGISTICS DATA

Products per shipping (inner) case1 pc(s)

MEMORY

Graphics card memory typeGDDR7
Data transfer rate28 Gbit/s
Memory bus128 bit
Memory clock speed28000 MHz
Discrete graphics card memory8 GB

PACKAGING DATA

Package weight880 g
Package depth330 mm
Package height57 mm
Package width235 mm
Package typeBox

PERFORMANCE

TV tuner integratedNo
DirectX version12.0
OpenGL version4.6
Dual Link DVINo
NVIDIA G-SYNCYes
Warranty period3 year(s)
Overclocked (OC) editionYes

PORTS & INTERFACES

Interface typePCI Express 5.0
DVI-I ports quantity0
DVI-D ports quantity0
HDMI ports quantity1
HDMI version2.1b
DisplayPorts quantity3
Mini HDMI ports quantity0
Mini DisplayPorts quantity0
DisplayPort version2.1b
Thunderbolt 3 ports quantity0

PROCESSOR

Processor frequency2550 MHz
Graphics processorGeForce RTX 5060
Maximum resolution7680 x 4320 pixels
Parallel processing technology supportNot supported
Maximum displays per videocard4
CUDAYes
CUDA cores3840
Graphics processor familyNVIDIA

TECHNICAL DETAILS

Warranty period3 year(s)

WEIGHT & DIMENSIONS

Weight540 g
Height120 mm
Depth40 mm
Length208 mm
