Gigabyte NVIDIA GeForce RTX 3050 OC Low Profile 6GB GDDR6 Graphics Card, 2304 CUDA Cores, 1477 MHz Core Clock, Dual Fan, 2x DisplayPorts / 2x HDMI Ports
| Chipset Manufacturer | Nvidia |
| Chipset Series | RTX |
| Chipset | RTX3050 |
| Form Factor | 2x ATX (Low Profile Option) |
| Memory | 6GB |
| Fans | 2 |
| RGB | No |
£ 127.45
Guaranteed Safe Checkout
Features
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX 3050
Integrated with 6GB GDDR6 96-bit memory interface
Low Profile Design with 181mm card length
Supports up to 4 displays
Core Clock
1477 MHz (Reference Card: 1470 MHz)
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE’s custom-designed cooling system delivers effective heat dissipation capacity, featuring copper heat pipe that makes direct contact with the GPU. This facilitates enhanced heat transfer to the heatsink, allowing for higher performance at lower temperatures.
LOW PROFILE DESIGN
At just 181mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

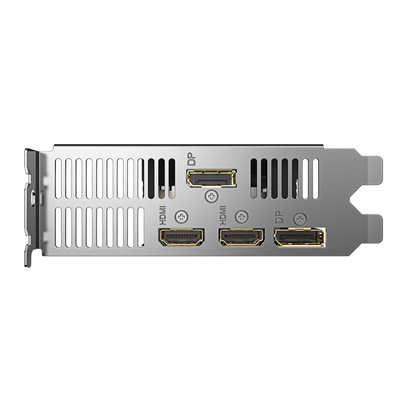

AMPLE CONNECTIVITY
Enjoy versatile display options with two DisplayPort and two HDMI ports, supporting up to 4 displays simultaneously.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
Graphics Processing
GeForce RTX 3050
Core Clock
1477 MHz (Reference Card: 1470 MHz)
CUDA Cores
2304
Memory Clock
14000 MHz
Memory Size
6GB
Memory Type
GDDR6
Memory Bus
96 bit
Card Bus
PCI-E 4.0
Digital Maximum Resolution
7680 x 4320
Multi-View
4
Card Size
L=181 W=69 H=36 mm
PCB Form
Low Profile
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
300W
Power Connectors
N/A
Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
Accessories
Quick Guide
Low Profile Bracket
| Weight | 0.5 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
DESIGN
| Form factor | Full-Height/Half-Length (FH/HL) |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
ENERGY MANAGEMENT
| Minimum system power supply | 300 W |
MEMORY
| Graphics card memory type | GDDR6 |
| Memory bus | 96 bit |
| Memory clock speed | 14000 MHz |
| Discrete graphics card memory | 6 GB |
PACKAGING CONTENT
| Quick installation guide | Yes |
| User guide | Yes |
PACKAGING DATA
| Package type | Box |
| User guide | Yes |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
PORTS & INTERFACES
| Interface type | PCI Express 4.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 1.4a |
| Thunderbolt 3 ports quantity | 0 |
PROCESSOR
| Processor frequency | 1477 MHz |
| Graphics processor | GeForce RTX 3050 |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 2304 |
| Graphics processor family | NVIDIA |
WEIGHT & DIMENSIONS
| Height | 69 mm |
| Width | 69 mm |
| Depth | 36 mm |
| Length | 181 mm |
