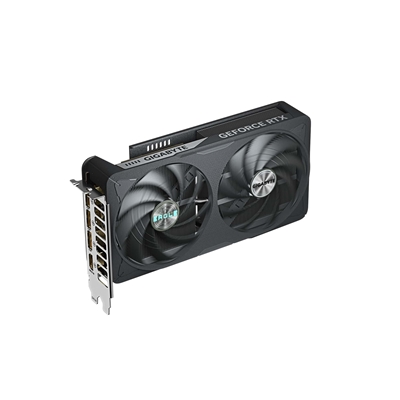

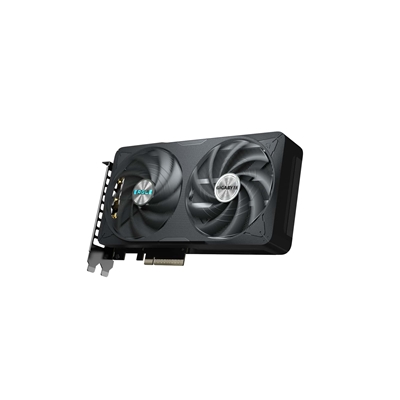

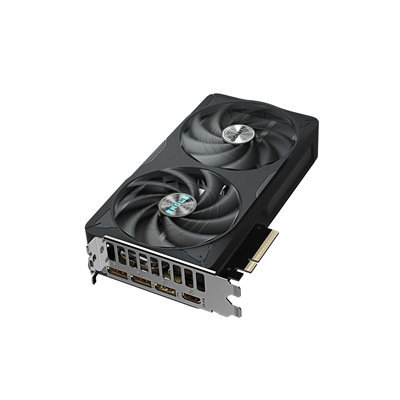

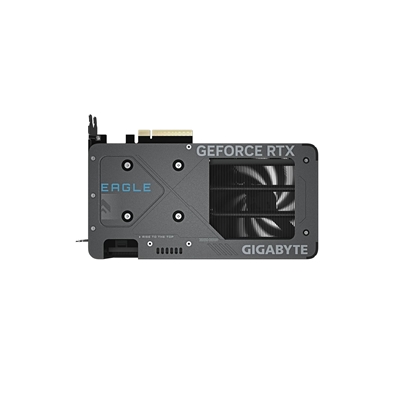

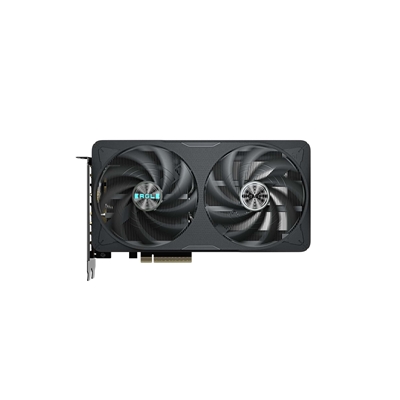

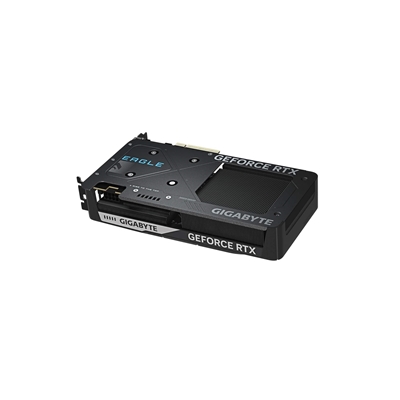

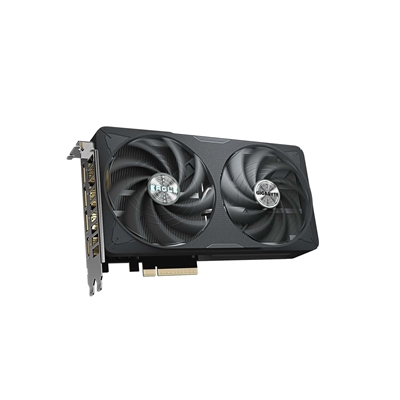

Gigabyte NVIDIA GeForce RTX 5060 Ti Eagle OC 16GB GDDR7 Graphics Card, 4608 CUDA Cores, 2617 MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Ports
| Chipset Manufacturer | Nvidia |
| Chipset Series | RTX |
| Chipset | RTX5060Ti |
| Form Factor | 2x ATX |
| Memory | 16GB |
| Fans | 2 |
| RGB | No |
£ 344.59
Guaranteed Safe Checkout
GeForce RTX 5060 Ti EAGLE OC 16G
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure
CORE CLOCK
2617 MHz (Reference card :2572 MHz)
Specification
Graphics Processing
GeForce RTX 5060 Ti
Core Clock
2617 MHz (Reference card :2572 MHz)
CUDA Cores
4608
Memory Clock
28 Gbps
Memory Size
16 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=215 W=122 H=40 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 Pin*1

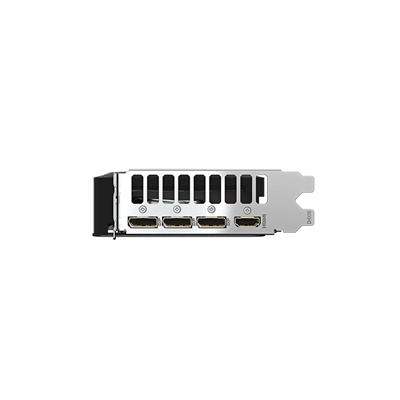

Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
Quick guide
| Weight | 0.85 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
DESIGN
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
ENERGY MANAGEMENT
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
LOGISTICS DATA
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Graphics card memory type | GDDR7 |
| Data transfer rate | 28 Gbit/s |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Discrete graphics card memory | 16 GB |
PACKAGING DATA
| Package weight | 960 g |
| Package depth | 330 mm |
| Package height | 57 mm |
| Package width | 235 mm |
| Package type | Box |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
| Overclocked (OC) edition | Yes |
PORTS & INTERFACES
| Interface type | PCI Express x16 5.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DisplayPort version | 2.1b |
| Thunderbolt 3 ports quantity | 0 |
PROCESSOR
| Processor frequency | 2617 MHz |
| Graphics processor | GeForce RTX 5060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA |
TECHNICAL DETAILS
| Warranty period | 3 year(s) |
WEIGHT & DIMENSIONS
| Weight | 600 g |
| Height | 122 mm |
| Depth | 40 mm |
| Length | 215 mm |
