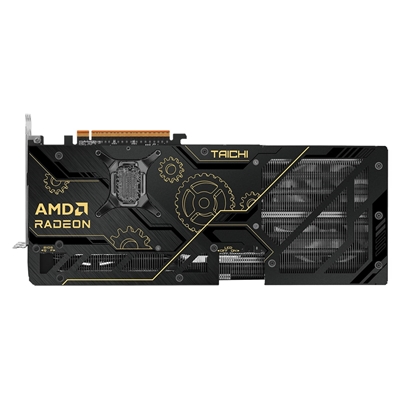

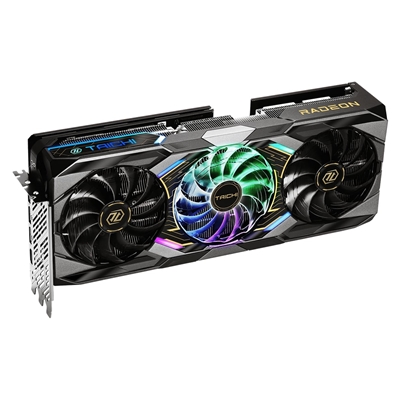

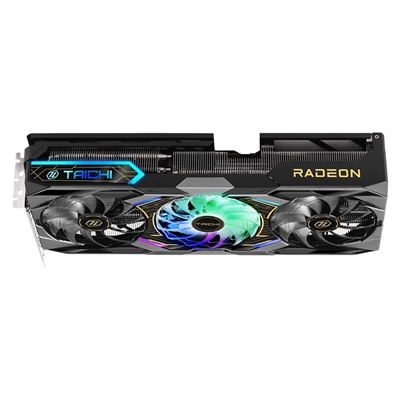

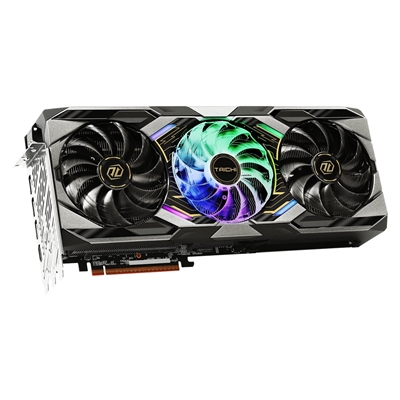

ASRock AMD Radeon RX 9070 XT Taichi 16GB OC GDDR6 Graphics Card, 4096 Streams, 3100MHz Boost Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Port
| Chipset Manufacturer | AMD |
| Chipset Series | RX |
| Chipset | RX 9070 XT |
| Form Factor | 3x ATX |
| Memory | 16GB |
| Fans | 3 |
| RGB | No |
£ 519.26
Guaranteed Safe Checkout
ASRock AMD Radeon RX 9070 XT Taichi 16GB OC
Key Features
Polychrome SYNC
Reverse Spin
Taichi 3X Cooling System
Stylish Metal Backplate
Dual BIOS
16 Power Phase Design with SPS
100/100/100mm Striped Ring Fans
Clock: GPU / Memory
Boost Clock**: Up to 3100 MHz / 20 Gbps
Game Clock*: 2570 MHz / 20 Gbps
Specifications
Graphics Engine
AMD Radeon RX 9070 XT
Bus Standard
PCI Express5.0 x16
DirectX
12 Ultimate
OpenGL
4.6
Memory
16GB GDDR6
Engine Clock
Boost Clock: Up to 3100 MHz
Game Clock: 2570 MHz
Stream Processors
4096
Memory Clock
20 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution: 7680 x 4320
Interface
1 x HDMI 2.1b
3 x DisplayPort 2.1a
HDCP
Yes
Multi-view
4
Recommended PSU
850W
Power Connector
1 x 12V-2×6-pin
Accessories
1 x Quick Installation Guide
1 x 16Pin to 3×8 Pin Power Cable
1 x Graphics Card Stand
Dimensions
330 x 140 x 61mm, 3-slot
Net Weight
1554 g
| Weight | 2.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.asrock.com.tw
Warranty:
2 Year Return to Base Warranty.
DESIGN
| Number of slots | 3 |
| Illumination | Yes |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
ENERGY MANAGEMENT
| Minimum system power supply | 850 W |
MEMORY
| Graphics card memory type | GDDR6 |
| Data transfer rate | 20 Gbit/s |
| Memory bus | 256 bit |
| Discrete graphics card memory | 16 GB |
PACKAGING CONTENT
| Cables included | Power |
| Quick installation guide | Yes |
PACKAGING DATA
| Cables included | Power |
PERFORMANCE
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Shader model version | No |
| Dual Link DVI | No |
| HDCP | Yes |
PORTS & INTERFACES
| Interface type | PCI Express x16 5.0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
PROCESSOR
| Graphics processor | Radeon RX 9070 XT |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 4096 |
| Maximum displays per videocard | 4 |
| CUDA | No |
| Graphics processor family | AMD |
| Processor boost clock speed | 3100 MHz |
| Processor boost clock speed (Gaming mode) | 2750 MHz |
WEIGHT & DIMENSIONS
| Weight | 1.55 kg |
| Height | 61 mm |
| Depth | 140 mm |
| Length | 330 mm |
