DeepCool LS520S Zero Dark All In One Liquid CPU Cooler, 240mm Radiator, 2 x 120mm Deepcool Fans, Intel/AMD
| Product Type | Liquid CPU Cooler |
| Radiator Colour | Black |
| Max Fan Speed | 2250RPM |
| Radiator Size | 240mm |
| LED Colour | None |
£ 48.64
Guaranteed Safe Checkout
EMBRACE THE DARKNESS
There is something about premium systems with little to no lighting. The LS520S ZERO DARK is the perfect liquid solution for cooling higher end processors that emphasizes the actual components. RGB need not apply
BUILT STRONG!

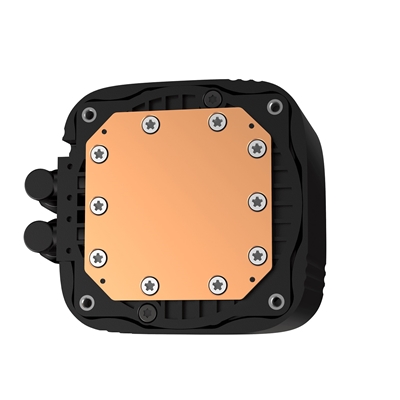

Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large pump cover is rotatable, and easy to adjust.
HIGHLY EFFICIENT FANS
Optimized PWM fans are included with the LS520S ZERO DARK and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydro bearing. The LS520S ZERO DARK will include three of these specialized PWM fans.
SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS520S ZERO DARK to the latest mainstream CPUs is included in the box, so you are ready to go.
Technical Spec
Net Weight
1346 g

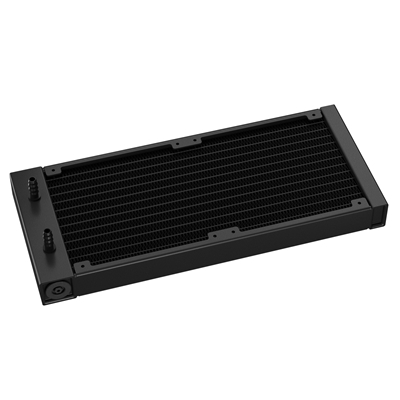

Radiator Dimensions
282 x 120 x 27 mm(L x W x H)
Radiator Material
Aluminum
Tube length
410 mm
Pump Dimensions
85 x 73 x 55 mm(L x W x H)
Pump Speed
3100 RPM±10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.5A
Pump Power Consumption
6W
Fan Dimensions
120 x 120 x 25 mm(L x W x H)
Fan Speed
500~2250 RPM±10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
=32.9 dB(A)
Fan Speed (with LSP)
500~1600 RPM±10%
Fan Airflow (with LSP)
60.85 CFM
Fan Air Pressure (with LSP)
1.65 mmAq
Fan Noise (with LSP)
=28.2 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.25 A
Fan Power Consumption
3.0 W
LED Type
White LED
EAN
6933412728429
P/N
R-LS520-BKNNMM-G-1
| Weight | 1.85 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
DESIGN
| Radiator material | Aluminum |
| Illumination LED | Yes |
| LED connector type | 3-pin |
ENERGY MANAGEMENT
| Pump voltage | 12 V |
| Pump current | 470 mA |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| Fan power consumption | 3.48 W |
| Pump power consumption | 5.64 W |
| LED voltage | 5 V |
| LED power consumption (pump) | 2.2 W |
| LED power consumption (fan) | 3.6 W |
OTHER FEATURES
| Country of origin | China |
PERFORMANCE
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Suitable location | Processor |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Noise level (high speed) | 32.9 dB |
| Rotational speed (max) | 2250 RPM |
| Rotational speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Pump noise level | 19 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (min) | 500 RPM |
| Fan 2 rotational speed (max) | 2250 RPM |
| Fan 2 noise level (high speed) | 32.9 dB |
| Fan 2 maximum airflow | 85.85 cfm |
| Fan 2 maximum air pressure | 3.27 mmH2O |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
| Weight | 1.08 kg |
| Radiator width | 12 cm |
| Radiator depth | 28.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump width | 8.6 cm |
| Pump depth | 7.4 cm |
| Pump height | 5.7 cm |
