DeepCool LS520 Premium AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 2250RPM Cooling Fans, Addressable RGB LED Lighting, Fully Customizable Infinity Mirror Cap Design, Black Version
| Product Type | Liquid CPU Cooler |
| Radiator Colour | Black |
| Max Fan Speed | 2250RPM |
| Radiator Size | 240mm |
| LED Colour | ARGB |
£ 42.49
Guaranteed Safe Checkout
LS520
Elite Performance

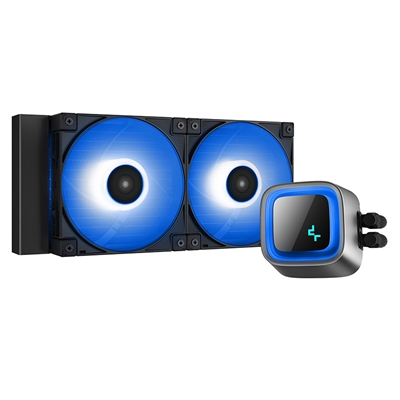

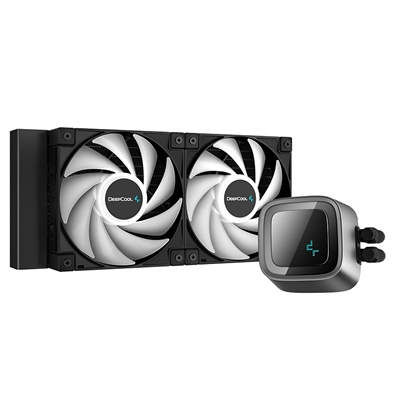

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
A NEW ERA OF DEEPCOOL
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Improved Microchannel design ensures optimal coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.

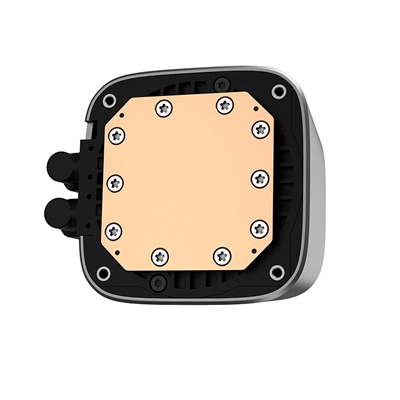

3. Thick solid copper base with a seamless match.
COOL AND QUIET

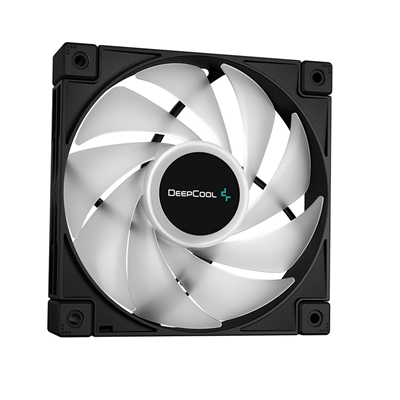

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
– 500~2250 RPM* – Dynamic PWM Range
– 85.85 CFM – Supreme Airflow
– =32.9 dB (A) – Full Load Noise
– 50,000 Hours – Long Operational Lifespan
*The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.
SIMPLE AND SECURE
Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
CUSTOMIZE YOUR LOOK

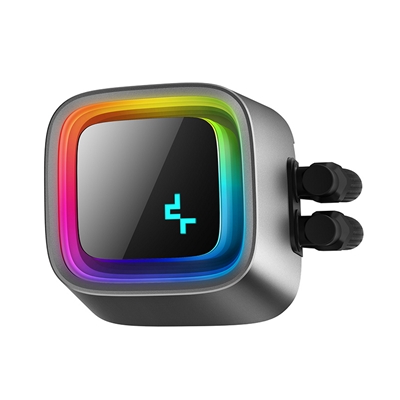

The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4

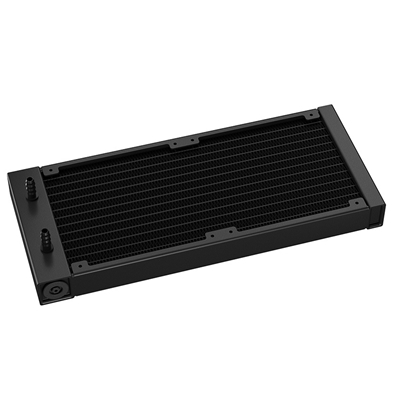

Radiator Dimensions
282 x 120 x 27 mm
Radiator Material
Aluminum
Tube length
410 mm
Pump Dimensions
86 x 74 x 57 mm
Pump Speed
3100 RPM ± 10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.47 A
Pump Power Consumption
5.64 W
Fan Dimensions
120 x 120 x 25 mm
Fan Speed
500~2250 RPM ± 10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
=32.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.29 A
Fan Power Consumption
3.48 W
LED Type
Addressable RGB LED
LED Connector
3-pin (+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.2 W (PUMP)/ 3.6 W (2 x FAN)
Net Weight
1305 g
| Weight | 2.05 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
5 Years Return To Base Warranty
DESIGN
| Radiator material | Aluminum |
| Illumination LED | Yes |
| LED connector type | 3-pin |
ENERGY MANAGEMENT
| Pump voltage | 12 V |
| Pump current | 470 mA |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| Fan power consumption | 3.48 W |
| Pump power consumption | 5.64 W |
| LED voltage | 5 V |
| LED power consumption (pump) | 2.2 W |
| LED power consumption (fan) | 3.6 W |
OTHER FEATURES
| Country of origin | China |
PERFORMANCE
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Suitable location | Processor |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Noise level (high speed) | 32.9 dB |
| Rotational speed (max) | 2250 RPM |
| Rotational speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Pump noise level | 19 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (min) | 500 RPM |
| Fan 2 rotational speed (max) | 2250 RPM |
| Fan 2 noise level (high speed) | 32.9 dB |
| Fan 2 maximum airflow | 85.85 cfm |
| Fan 2 maximum air pressure | 3.27 mmH2O |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
| Weight | 1.3 kg |
| Package weight | 2.06 kg |
| Height | 132 mm |
| Width | 238 mm |
| Depth | 337 mm |
| Radiator width | 12 cm |
| Radiator depth | 28.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump width | 8.6 cm |
| Pump depth | 7.4 cm |
| Pump height | 5.7 cm |
