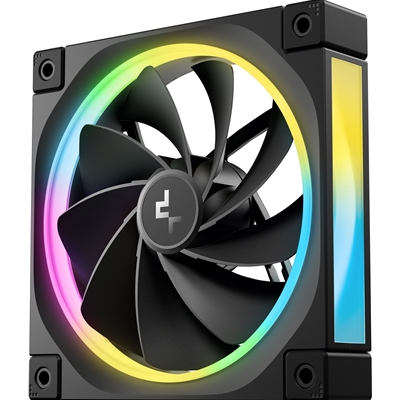

DeepCool FL12 120mm PWM 3 Pack Reverse Fan – High Performance, Low Noise, Fluid Dynamic Bearing, 36 ARGB LEDs, 500-2150 RPM, 55 CFM Airflow, 4-Pin PWM Control

This 3-pack 120mm fan kit is engineered for optimized airflow, quiet operation, and eye-catching addressable RGB lighting. Featuring reverse blade designs, the fans present a clean and uniform lighting effect regardless of airflow direction, eliminating visible support struts on one side.

Each fan includes 36 addressable RGB LEDs that produce vibrant, customizable effects. The integrated 8-pin connectors streamline setup by combining PWM control and ARGB lighting into a single chainable connection, making installation neat and efficient.

Built with durable materials and supported by fluid dynamic bearings, these fans ensure long-lasting reliability and quiet performance. Anti-vibration rubber pads at each corner help dampen operational noise and reduce vibration transfer to the case.

Key Features:

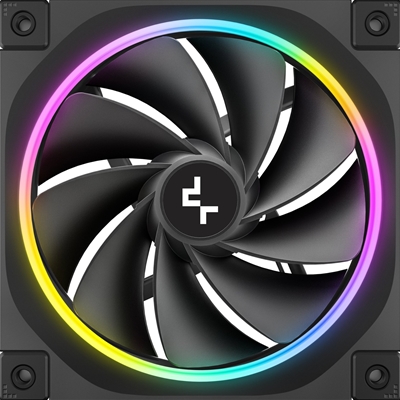

Reverse Blade Design: Clean lighting effect from either intake or exhaust view
Addressable RGB LEDs: 36 LEDs per fan for customizable lighting
Daisy-Chain Design: Simplified wiring with 8-pin combined connectors
Quiet Operation: Fluid dynamic bearing and rubber isolation pads
High Performance: Balanced airflow and static pressure for optimized cooling
Durable Construction: Reinforced frame and blades made from composite materials

Specifications:
General:
Model Number:
R-FL12R-BKAPN3-G

Color:
Black

Quantity:
3 Fans

Fan Dimensions:
Size:
120 � 120 � 25 mm

Weight (Total):
543 g

Performance:
Speed:
500–2150 RPM ±10%

Airflow:
55 CFM

Static Pressure:
2.59 mmAq

Noise Level:
=33.9 dB(A)

Electrical:
Rated Voltage:
12 VDC (Fan) / 5 VDC (LED)

Rated Current:
0.15 A (Fan)

Fan Power Consumption:
1.8 W

LED Power Consumption:
2.75 W

Connectors:
Fan Connector:
4-pin PWM

LED Connector:
3-pin (+5V-D-G)

8-Pin Daisy-Chain:
Combines fan and lighting in one cable

Lighting:
Type:
Addressable RGB (36 LEDs per fan)

Lighting Control:
Compatible with 5V ARGB headers

Bearing Type:
Fluid Dynamic Bearing

Materials:
Frame:
PBT composite

Blades:
Polycarbonate

Noise Dampening:

Rubber Pads:
Full-coverage anti-vibration pads at each corner

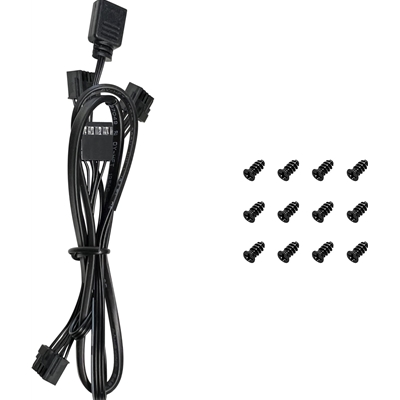

Package Contents:
3 � 120mm ARGB Reverse Blade Fans
Mounting Screws
User Guide

Warranty:
2 Years
