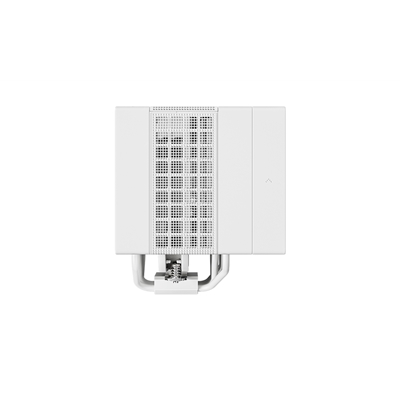

DeepCool ASSASSIN IV Universal Socket 140mm PWM 1400RPM Fan CPU Cooler, White, armed with seven heat pipes and newly designed 120 and 140mm FDB fans
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 1700RPM |
| LED Colour | None |
£ 59.90
Guaranteed Safe Checkout
The ASSASSIN returns with a new white aesthetic and efficient cooling capacity. The ASSASSIN IV WH provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
BEAUTY IN SIMPLICITY
The elegant white design of the ASSASSIN IV WH is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
LET IT SHINE!
The ASSASSIN IV WH’s case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.RAM Clearance Intel LGA1700/1200/115X/1851: Unobstructed
Intel LGA20XX: 63mm
AMD: AM4/AM5: Unobstructed
Due to differences in motherboard layouts, the following motherboards are not compatible with the ASSASSIN IV WH: ROG STRIX Z790-H GAMING WIFI, ROG STRIX Z690-E GAMING WIFI, MSI MEG X570 GODLIKE, MSI B650M APE WIFI, ROG CROSSHAIR X670E GENE, and MSI MEG Z790 ACE.
BE COOL, BE CALM
A key factor in the ASSASSIN IV WH’s extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV WH comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
Technical Spec
Product Dimensions
144 X 147 X 164 mm(L X W X H)
Heatsink Dimensions
140 X 110 X 160 mm(L X W X H)
Net Weight
1575 g
Heatpipe
6 mm X 7 pcs
Fan Dimensions
140 X 140 X 25 mm(L X W X H) / 120 X 120 X 25 mm(L X W X H)
Fan Speed (Performance Mode)
500~1700 RPM±10%
Fan Airflow (Performance Mode)
79.1 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)
2.44 mmAq / 2.1 mmAq
Overall Noise (Performance Mode)
=29.3 dB(A)
Fan Speed (Quiet Mode)
500~1350 RPM±10%
Fan Airflow (Quiet Mode)
63.76 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode)
1.58 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode)
=22.6 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Motor Type
6-Pole Fan Motor
Fan Rated Voltage
12 VDC
Fan Rated Current
0.3 A / 0.2 A
Fan Power Consumption
3.6 W / 2.4 W
Rated Voltage
12 VDC
Power Consumption(Performance Mode)
6 W
Power Consumption(Quiet Mode)
3.6 W
| Weight | 2.05 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
ENERGY MANAGEMENT
| Fan voltage | 12 V |
| Fan current | 0.3 A |
| Rated voltage | 12 V |
| Fan power consumption | 6 W |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU bracket(s) | Yes |
| Adapter frame included | Yes |
PERFORMANCE
| Type | Air cooler |
| Fan diameter | 120/140 mm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 79.1 cfm |
| Maximum air pressure | 2.44 mmH2O |
| Pump motor speed (max) | 1700 RPM |
| Pump motor speed (min) | 500 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan noise level (min) | 22.6 dB |
| Fan noise level (max) | 29.3 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan 2 maximum airflow | 58.06 cfm |
| Fan 2 maximum air pressure | 2.1 mmH2O |
WEIGHT & DIMENSIONS
| Weight | 1.57 kg |
| Height | 164 mm |
| Width | 147 mm |
| Depth | 144 mm |
| Radiator width | 11 cm |
| Radiator depth | 14 cm |
| Radiator height | 16 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
