DeepCool Assassin IV VC Vision Dual-Fan CPU Air Cooler with 140mm & 120mm Fans, Vapour Chamber Base, Digital Display for Real-Time Monitoring, Intel & AMD Compatible
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 1800RPM |
| LED Colour | None |
£ 88.20
Guaranteed Safe Checkout
The DeepCool Assassin IV VC Vision is a high-performance CPU air cooler designed for both Intel and AMD processors. This flagship cooler integrates advanced cooling technologies and user-friendly features to ensure optimal thermal management for high-end systems.
It has been engineered for enthusiasts seeking top-tier air cooling solutions with modern monitoring capabilities. Its combination of a vapour chamber base, dual-fan setup, and digital display ensures both exceptional performance and user engagement.
Key Features:

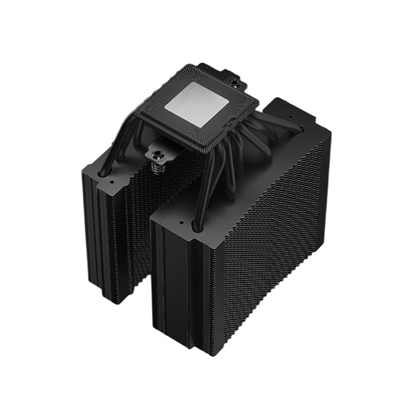

Vapour Chamber Base
Quad-Segmented Digital Display
Dual-Fan Configuration
Broad Socket Compatibility
Specifications:
Dimensions:
Product: 147 x 144 x 172 mm (LxWxH)
Heatsink: 140 x 110 x 160 mm (LxWxH)
Weight:
1780 g
Heatpipes:
7x 6mm heatpipes
Fan Details:
140mm Fan:
Speed: 5001800 RPM±10% (Performance Mode), 5001450 RPM±10% (Quiet Mode)
Airflow: 61.25 CFM (Performance Mode), 48.55 CFM (Quiet Mode)
Air Pressure: 3.76 mmAq (Performance Mode), 2.46 mmAq (Quiet Mode)
Noise Level: =29.3 dB(A) (Performance Mode), =22.6 dB(A) (Quiet Mode)
120mm Fan:
Speed: 5001700 RPM±10% (Performance Mode), 5001350 RPM±10% (Quiet Mode)
Airflow: 58.06 CFM (Performance Mode), 46.75 CFM (Quiet Mode)
Air Pressure: 2.1 mmAq (Performance Mode), 1.35 mmAq (Quiet Mode)
Noise Level: =29.3 dB(A) (Performance Mode), =22.6 dB(A) (Quiet Mode)
Fan Connector:
4-pin PWM
Bearing Type:
Fluid Dynamic Bearing
Rated Voltage:
12 VDC
Power Consumption:
Performance Mode: 4.8 W
Quiet Mode: 3.6 W
Display Module:
Rated Voltage: 5 VDC
Rated Current: 0.08 A±10%
Power Consumption: 0.4 W
Display Area: 44.6 x 53.6 mm
| Weight | 1.78 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
DESIGN
| Number of heat pipes | 7 |
ENERGY MANAGEMENT
| Power consumption (typical) | 4.8 W |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Thermal Design Power (TDP) | 300 W |
| Rated voltage | 12 V |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
PERFORMANCE
| Type | Air cooler |
| Fan diameter | 120/140 mm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066 |
| Suitable location | Processor |
| Maximum airflow | 61.25 cfm |
| Maximum air pressure | 3.76 mmH2O |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 29.3 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan 2 maximum airflow | 58.06 cfm |
| Fan 2 maximum air pressure | 2.1 mmH2O |
WEIGHT & DIMENSIONS
| Weight | 1.78 kg |
| Height | 172 mm |
| Width | 147 mm |
| Depth | 144 mm |
| Radiator width | 14 cm |
| Radiator depth | 11 cm |
| Radiator height | 16 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
