DeepCool AK620 WH Fan CPU Cooler, Universal Socket, Dual Powerful 120mm FDB PWM White Fans, 1850RPM, 6 Heat Pipes, 260W Heat Dissipation Power, Unique Matrix Fin Design, White Edition,
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 1850RPM |
| LED Colour | None |
£ 33.99
Guaranteed Safe Checkout
AK620 WH

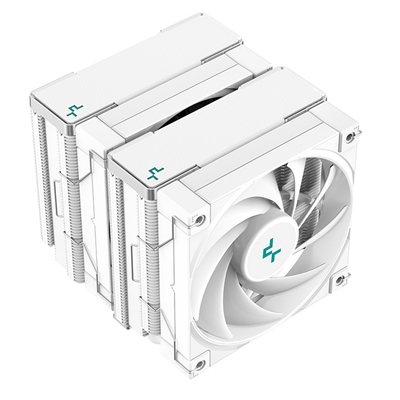

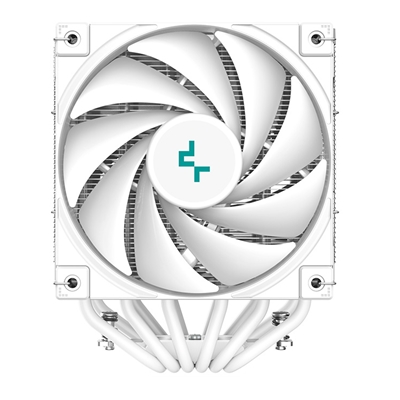

High Performance Dual Tower CPU Cooler
Achieve dominant cooling and silent efficiency with the DeepCool AK620 WH High Performance CPU Cooler equipped with six copper heat pipes stacked with a dense dual-tower fin array and two 120 FDB fans.
UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 WH features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.
COOL, QUIET, AND POWERFUL

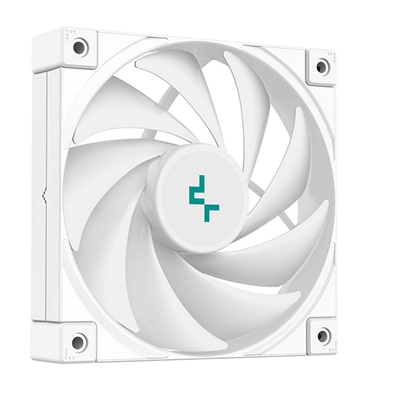

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
– 28 dBA: Full load noise
– 500-1850 RPM: Dynamic PWM Range
– 50,000 hours: Long operational lifespan
EXCEPTIONAL COOLING BY DESIGN

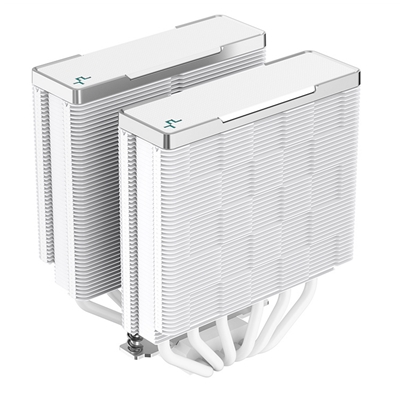

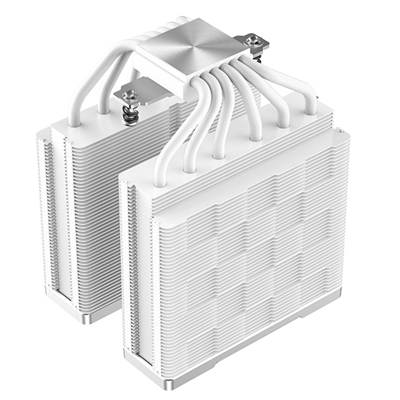

The AK620 WH features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
– 160mm cooler height compatibility
– 43mm RAM height clearance (59mm in single fan configurations)
MULTI-PLATFORM SIMPLICITY
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: AM5 / AM4
Product Dimensions
129 x 138 x 160 mm
Heatsink Dimensions
127 x 110 x 157 mm
Net Weight
1456g
Heatpipe
6 mm x 6 pcs
Fan Dimensions
120 x 120 x 25 mm
Fan Speed
300~1850 RPM ± 10%
Fan Airflow
68.99 CFM
Fan Air Pressure
2.19 mmAq
Fan Noise
=28 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.12 A
Fan Power Consumption
1.44 W
| Weight | 1.46 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
ENERGY MANAGEMENT
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| Thermal Design Power (TDP) | 260 W |
| Fan power consumption | 1.44 W |
LOGISTICS DATA
| Harmonized System (HS) code | 84733080 |
OTHER FEATURES
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
PACKAGING CONTENT
| Cables included | Fan |
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| Installation instruction | Yes |
| Thermal pad included | Yes |
| CPU bracket(s) | Yes |
PERFORMANCE
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4 |
| Suitable location | Processor |
| Maximum airflow | 68.99 cfm |
| Maximum air pressure | 2.19 mmH2O |
| Noise level (high speed) | 28 dB |
| Fan speed (max) | 1850 RPM |
| Fan speed (min) | 500 RPM |
| Rotational speed (max) | 1850 RPM |
| Rotational speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
| Weight | 1.46 kg |
| Height | 160 mm |
| Width | 129 mm |
| Depth | 138 mm |
| Radiator width | 12.7 cm |
| Radiator depth | 11 cm |
| Radiator height | 15.7 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
