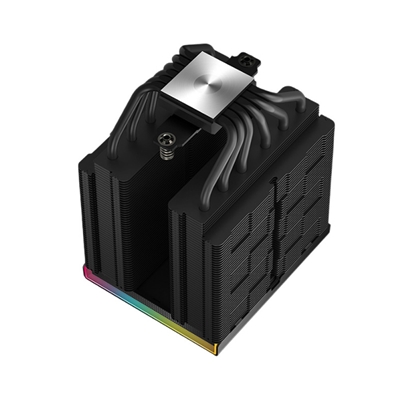

DeepCool AK620 Digital Pro CPU Air Cooler, Dual-Tower with Digital Display, 120mm FDB Fans, ARGB Lighting, 6 Copper Heatpipes, LGA1700/AM5 Compatible, High-Performance Quiet Cooling for Gaming PCs
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 1750RPM |
| LED Colour | Addressable RGB |
£ 45.82
Guaranteed Safe Checkout
The AK620 Digital Pro is designed for users seeking elite cooling performance, real-time system information, and stylish RGB accents. The dual 120mm PWM fans provide strong airflow while maintaining quiet operation. The heatsink’s dual-tower structure and six heatpipes offer highly efficient thermal dissipation, making it ideal for high TDP processors.
The standout feature is the integrated multi-line digital screen, which displays vital CPU data in real time and is fully configurable through DeepCool’s dedicated software. This cooler also includes ARGB lighting, allowing users to synchronize lighting with their build’s theme via supported motherboard headers.
Product Identification
Manufacturer:
DeepCool
Model Number:
R-AK620-BKAPMN-G
EAN:
6933412728818
Physical Dimensions
Product Dimensions:
129 x 138 x 163 mm (L x W x H)
Heatsink Dimensions:
127 x 110 x 154 mm (L x W x H)
Net Weight:
1491 g
Cooling System
Heatpipes:
6 x 6 mm copper heatpipes
Fan Dimensions:
120 x 120 x 25 mm
Fan Speed:
500–1750 RPM (±10%)
Fan Airflow:
60.89 CFM
Fan Air Pressure:
2.91 mmAq
Noise Level:
=25 dB(A)
Fan Connector:
4-pin PWM
Bearing Type:
Fluid Dynamic Bearing
Rated Voltage:
12 VDC
Rated Current:
0.25 A
Power Consumption:
3 W
Lighting & Display
LED Type:
Addressable RGB
LED Connector:
3-pin (+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage:
5 VDC
LED Power Consumption:
5.55 W
Display Type:
Multi-line digital screen
Display Functions:
Real-time monitoring of CPU temperature, usage, wattage, and frequency
Control Interface:
Software control via motherboard USB 2.0 header
Compatibility
Intel Socket Support:
LGA2066, LGA2011-v3, LGA2011, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155
AMD Socket Support:
AM5, AM4
Additional Features
Mounting System:
All-metal secure mounting kit
Warranty:
3 years
| Weight | 1.49 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Radiator material | Aluminum |
| Number of heat pipes | 6 |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| LED connector type | 3-pin |
ENERGY MANAGEMENT
| Fan voltage | 12 V |
| Fan current | 0.25 A |
| Fan power consumption | 3 W |
| LED voltage | 5 V |
| LED power consumption (fan) | 5.55 W |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU bracket(s) | Yes |
PERFORMANCE
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 60.89 cfm |
| Maximum air pressure | 2.91 mmH2O |
| Fan speed (max) | 1750 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 25 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
| Weight | 1.49 kg |
| Height | 163 mm |
| Width | 138 mm |
| Depth | 129 mm |
| Radiator width | 11 cm |
| Radiator depth | 12.7 cm |
| Radiator height | 15.4 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
