Antec Vortex Lum 360 ARGB CPU Liquid Cooler – Intel & AMD Compatible, 3 x 120mm ARGB Fans, Suspended Spiral Pump Head, Enhanced Cooling Performance
| Product Type | Liquid CPU Cooler |
| Radiator Colour | Black |
| Max Fan Speed | 2800RPM |
| Radiator Size | 360mm |
| LED Colour | ARGB |
£ 61.90
Guaranteed Safe Checkout

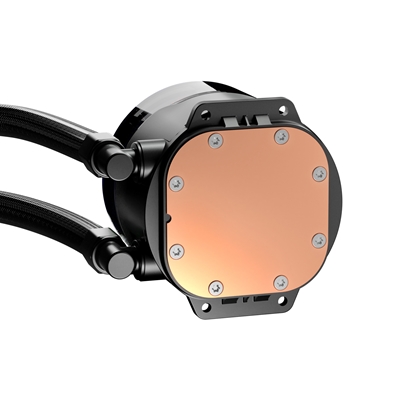

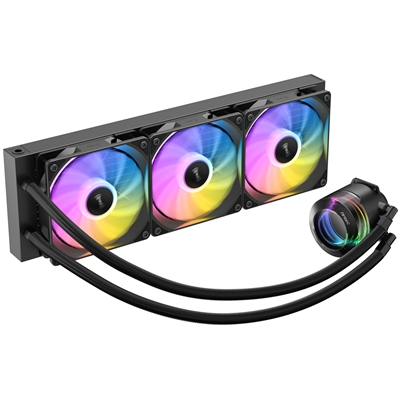

The Antec Vortex Lum 360 ARGB is an all-in-one liquid cooler designed to provide exceptional cooling performance while enhancing the visual appeal of your build. Featuring a suspended spiral pump head inspired by the image of a vortex, it delivers outstanding cooling performance and dynamic lighting effects from various angles. The cooler is equipped with powerful ARGB PWM fans and an included ARGB controller that works in sync with the motherboard, allowing for customized lighting effects.
Full Specification
Radiator Dimensions:
397 x 120 x 27 mm (L x W x H)
Radiator Material:
Aluminum
Pump Dimensions:
F67 x 48.5 mm
Rating Voltage:
DC 12 V
Fan Speed:
2800±10% RPM
Rated Current:
0.25±20% A
Consumed Power:
3.0 W
Flow Rate:
=1300 mL/min
Water Pressure:
1.4 m
Operation Temperature:
-10°C ~ +60°C
Noise Level:
=28 dB (A)
Lifespan:
40,000 hours
Fan Dimensions:
120 x 120 x 25 mm
Fan Type:
PWM ARGB
Airflow:
71.5 CFM (max.)
Air Pressure:
2.45 mmH2O (max.)
Fan Noise Level:
31 dB (A)
Lifespan:
40,000 hours
Connector:
PH 2.0 7-pin (PWM+ARGB)
Rated Voltage:
FAN: DC 12 V | LED: DC 5 V
Operation Voltage:
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V
Rated Current:
FAN: 0.20-0.25 A | LED: 0.32 A
CPU Socket Compatibility:
Intel: LGA 115X / 1200 / 1700 / 20XX / 1851,
AMD: AM3 / AM4 / AM5 / TR4
TDP:
= 280W
Warranty:
3 years
| Weight | 2.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Illumination LED | Yes |
| Number of fins | 13 |
ENERGY MANAGEMENT
| Pump voltage | 12 V |
| Pump current | 250 mA |
| Fan current | 0.25 A |
| Thermal Design Power (TDP) | 280 W |
| Rated voltage | 12 V |
| Pump power consumption | 3 W |
OTHER FEATURES
| Fan rated voltage | 10.8 - 13.2 V |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU socket spacer(s) | Yes |
| CPU bracket(s) | Yes |
PERFORMANCE
| Type | Liquid cooling kit |
| Operating temperature (T-T) | -10 - 60 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4 |
| Suitable location | Processor |
| Maximum airflow | 71.5 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 800 RPM |
| Bearing type | Hydraulic |
| Fan noise level (max) | 31 dB |
| Pump noise level | 28 dB |
| Pump connector | 3-pin |
| Pump's mean time to failure (MTTF) | 40000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Fan 2 rotational speed (min) | 800 RPM |
| Fan 2 rotational speed (max) | 1800 RPM |
WEIGHT & DIMENSIONS
| Radiator width | 12 cm |
| Radiator depth | 39.7 cm |
| Radiator height | 2.7 cm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Pump width | 6.7 cm |
| Pump depth | 6.7 cm |
| Pump height | 4.85 cm |
| Fan 2 dimensions (W x D x H) | 120 x 25 x 120 mm |
