Antec Vortex Lum 240 ARGB CPU Liquid Cooler – Intel & AMD Compatible, 2 x 120mm ARGB Fans, Suspended Spiral Pump Head, Enhanced Cooling Performance
| Product Type | Liquid CPU Cooler |
| Radiator Colour | Black |
| Max Fan Speed | 2800RPM |
| Radiator Size | 240mm |
| LED Colour | ARGB |
£ 48.86
Guaranteed Safe Checkout

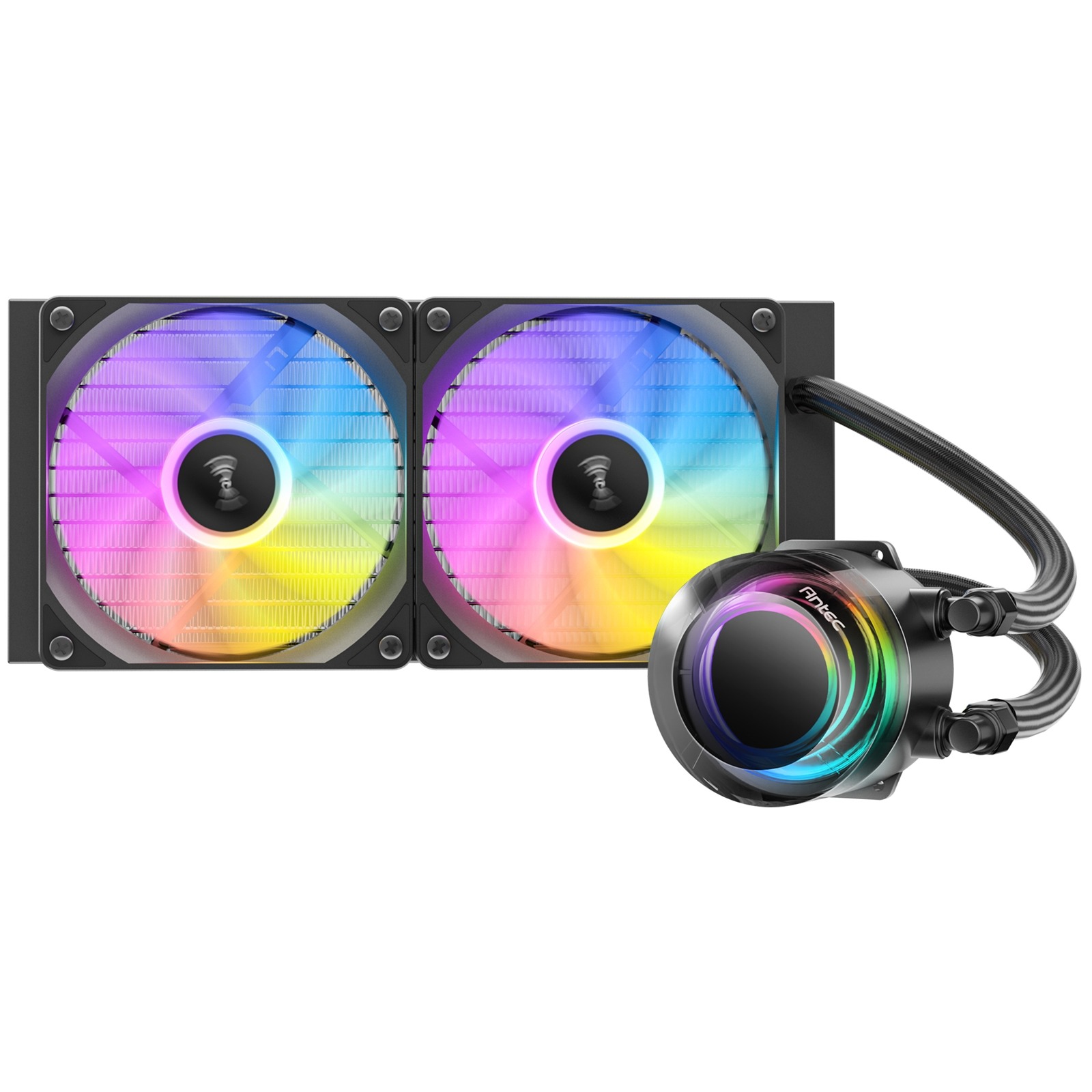

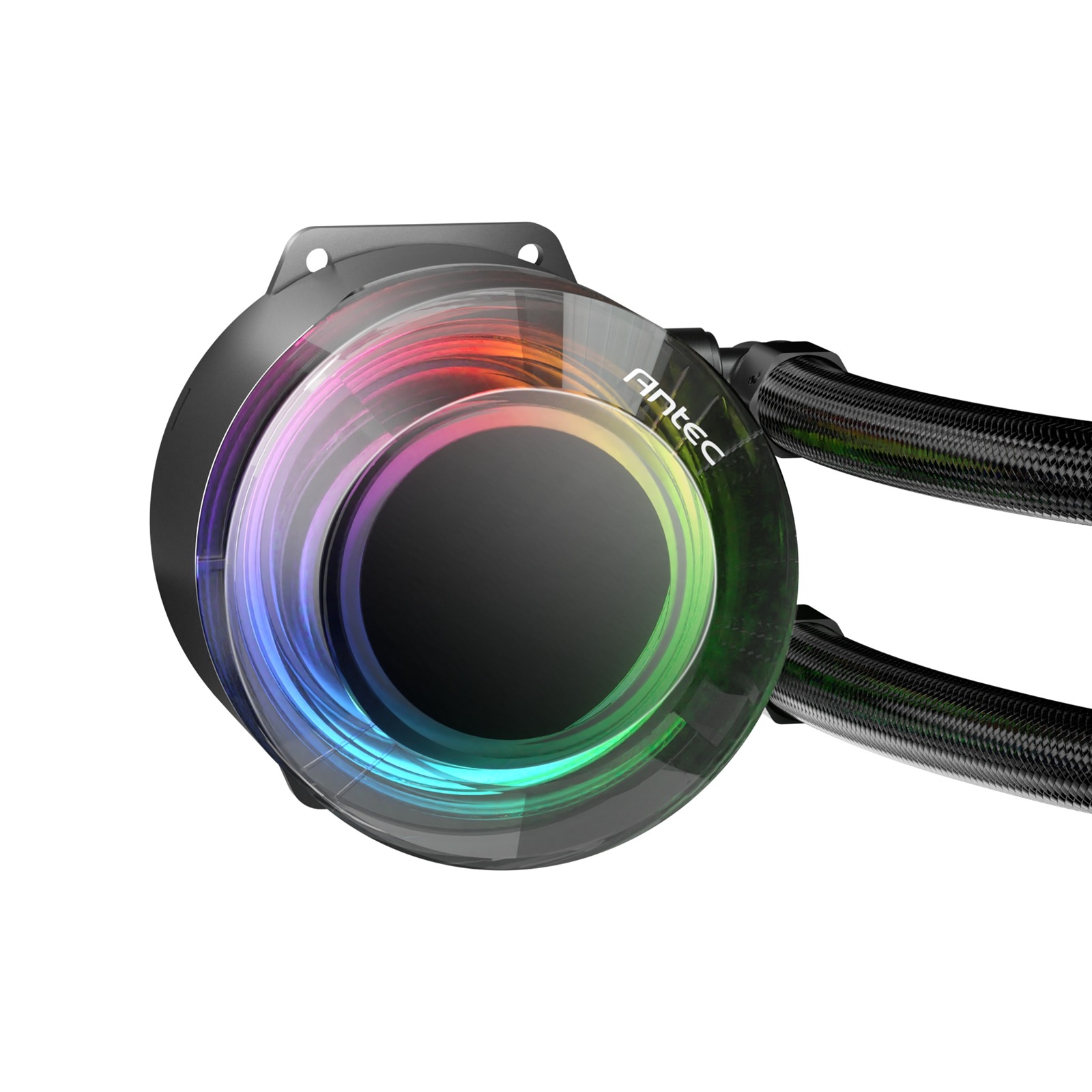

The Antec Vortex Lum 240 ARGB is a high-performance all-in-one liquid cooler designed to keep your CPU running cool and stable while adding a stunning aesthetic to your build. With a combination of effective thermal management and vibrant ARGB lighting, this cooler is perfect for gamers and PC enthusiasts who want a balance of style and performance. The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Full Specification
Radiator Dimensions:
277 x 120 x 27 mm (L x W x H)
Radiator Material:
Aluminum
Pump Dimensions:
F67 x 48.5 mm
Rating Voltage:
DC 12 V
Fan Speed:
2800±10% RPM
Rated Current:
0.25±20% A
Consumed Power:
3.0 W
Flow Rate:
=1300 mL/min
Water Pressure:
1.4 m
Operation Temperature:
-10°C ~ +60°C
Noise Level:
=28 dB (A)
Lifespan:
40,000 hours

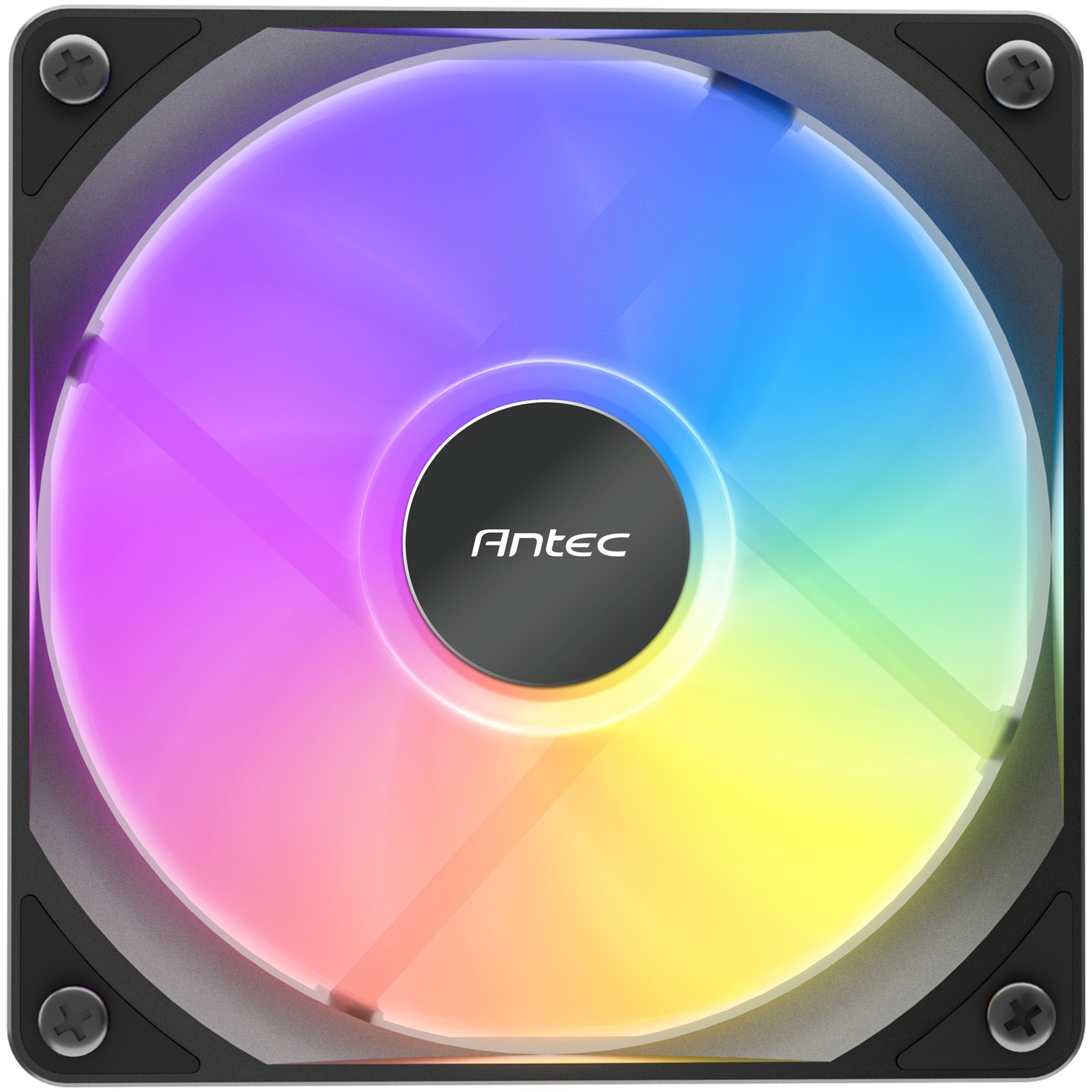

Fan Dimensions:
120 x 120 x 25 mm
Fan Type:
PWM ARGB
Airflow:
71.5 CFM (max.)
Air Pressure:
2.45 mmH2O (max.)
Fan Noise Level:
31 dB (A)
Lifespan:
40,000 hours
Connector:
PH 2.0 7-pin (PWM+ARGB)
Rated Voltage:
FAN: DC 12 V | LED: DC 5 V
Operation Voltage:
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V
Rated Current:
FAN: 0.20-0.25 A | LED: 0.32 A
CPU Socket Compatibility:
Intel: LGA 115X / 1200 / 1700 / 20XX / 1851,
AMD: AM3 / AM4 / AM5
TDP:
= 260W
Warranty:
3 years
| Weight | 1.75 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Radiator material | Aluminum |
| Illumination LED | Yes |
| Number of fins | 13 |
ENERGY MANAGEMENT
| Pump voltage | 12 V |
| Pump current | 250 mA |
| Fan current | 0.25 A |
| Thermal Design Power (TDP) | 260 W |
| Rated voltage | 12 V |
| Pump power consumption | 3 W |
OTHER FEATURES
| Fan rated voltage | 10.8 - 13.2 V |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU socket spacer(s) | Yes |
| CPU bracket(s) | Yes |
PERFORMANCE
| Type | Liquid cooling kit |
| Operating temperature (T-T) | -10 - 60 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 71.5 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 800 RPM |
| Bearing type | Hydraulic |
| Fan noise level (max) | 31 dB |
| Pump noise level | 28 dB |
| Pump connector | 3-pin |
| Pump's mean time to failure (MTTF) | 40000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Fan 2 rotational speed (min) | 800 RPM |
| Fan 2 rotational speed (max) | 1800 RPM |
WEIGHT & DIMENSIONS
| Radiator width | 12 cm |
| Radiator depth | 27.7 cm |
| Radiator height | 2.7 cm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Pump width | 6.7 cm |
| Pump depth | 6.7 cm |
| Pump height | 4.85 cm |
| Fan 2 dimensions (W x D x H) | 120 x 25 x 120 mm |
