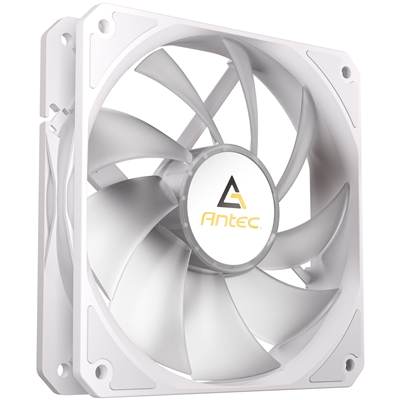

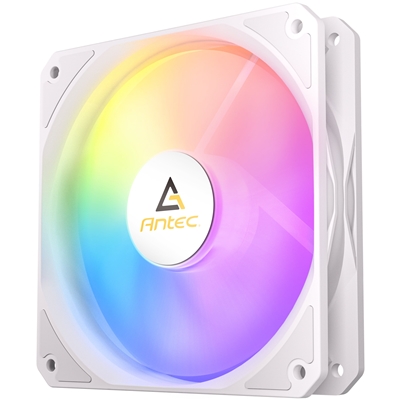

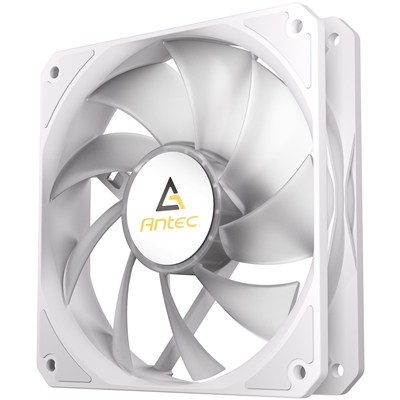

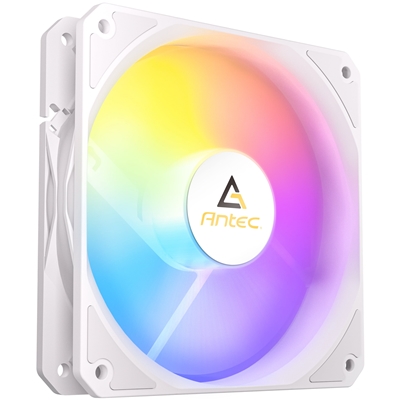

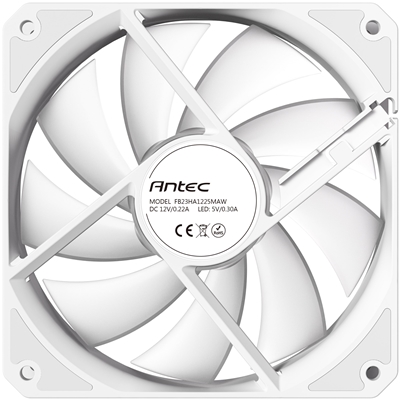

Antec P12R ARGB Reverse PWM 120mm Fan – 4-Pin, White, High-Airflow Cooling, 9-Blade Design with Anti-Vibration Pads
| Product Type | Case Fan |
| Fan Size | 120mm |
| Max Fan Speed | 1500RPM |
| Fan Shroud Colour | White |
| LED Colour | Addressable RGB |
| Connections | 4-Pin Fan & 3-Pin ARGB |
£ 4.75
Guaranteed Safe Checkout
Reverse fan
Reverse fan blade design provides smoother air intake in a cleaner look.
Superior Heat Dissipation
9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.
Bright ARGB
Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.
PWM Fan
From low noise to high performance, tune your perfect fan curve between 240 – 1350 RPM.
Quiet operation
8 anti-vibration rubber pads and hydro bearing help the fan run quietly.
SPECIFICATIONS
Model Name
P12R ARGB
Fan Type
ARGB PWM Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
Fan Speed
600±100~1500±150 RPM
Airflow
55.31~61.46 CFM (max.)
Air Pressure
0.87~1.07 mmH2O (max.)
Fan Noise Level
14.2~29.5 dB(A)
Lifespan
30,000 hours / 40? | 40,000 hours / 25?
Connector
FAN: 4-pin | LED: 3-pin
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 7.0-13.8 V
Rated Current
FAN: 0.15 A (0.22A (max.)) | LED: 0.3 A
Warranty
1 Year
| Weight | 0.24 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
1 Year Return To Base Warranty
DESIGN
| Number of fan blades | 9 |
| LED connector type | 3-pin |
ENERGY MANAGEMENT
| Rated current | 0.15 A |
| Voltage | 7 - 13.8 V |
| Rated voltage | 12 V |
| LED voltage | 5 V |
PACKAGING CONTENT
| Package type | Box |
PERFORMANCE
| Type | Fan |
| Fan diameter | 12 cm |
| Suitable location | Computer case |
| Maximum airflow | 61.46 cfm |
| Minimum airflow (imperial) | 55.31 cfm |
| Minimum air pressure | 0.87 mmH2O |
| Maximum air pressure | 1.07 mmH2O |
| Fan speed (max) | 1500 RPM |
| Fan speed (min) | 600 RPM |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Fan noise level (min) | 14.2 dB |
| Fan noise level (max) | 29.5 dB |
| Fan's mean time to failure (MTTF) | 30000 h |
TECHNICAL DETAILS
| Warranty period | 1 year(s) |
WEIGHT & DIMENSIONS
| Height | 120 mm |
| Width | 120 mm |
| Depth | 25 mm |
| Fan thickness | 2.5 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
